Quick Details
-
Color:
-
Customers' Requirments
-
Size:
-
Customized Size
-
Certificate:
-
ISO9001:2008
-
Feature:
-
Long Life Span
-
Packing:
-
Nude Packing
-
MOQ:
-
1 pcs
-
Application:
-
Docking
-
Logo:
-
Customized Logo Availabled
-
Warranty:
-
12 Months
Quick Details
-
Place of Origin:
-
QINGDAO CHINA
-
Brand Name:
-
HE
-
Material:
-
Steel
-
Color:
-
Customers' Requirments
-
Size:
-
Customized Size
-
Certificate:
-
ISO9001:2008
-
Feature:
-
Long Life Span
-
Packing:
-
Nude Packing
-
MOQ:
-
1 pcs
-
Application:
-
Docking
-
Logo:
-
Customized Logo Availabled
-
Warranty:
-
12 Months
Qingdao Henger Marine Supply Co., Ltd
Lies in Qingdao, a beautiful coastal city with red tiling and green trees, blue sea and clear sky , Qingdao Henger Marine Supplies Co., Ltd is a high-tech enterprise integrated with manufacturing, research and innovation, technical services , specialized in manufacturing marine products, such as marine rubber fender, marine airbag, navigation mark and marine buoy. All products get ISO 9001-2008 certificate and IACS quality authentication from CCS, BV, GL, ABS, LG, etc.
With strong technology base, advanced manufacturing technique, complete manufacturing facilities and well-equipped checkout equipment, Qingdao Henger Marine Supplies Co., Ltd is devoted to forge itself into a top-ranking international competitive marine products manufacturer providing high quality products and perfect service for all customers, and shoulder the responsibility of ensuring global marine safety via mutually beneficial cooperation with all walks of life.

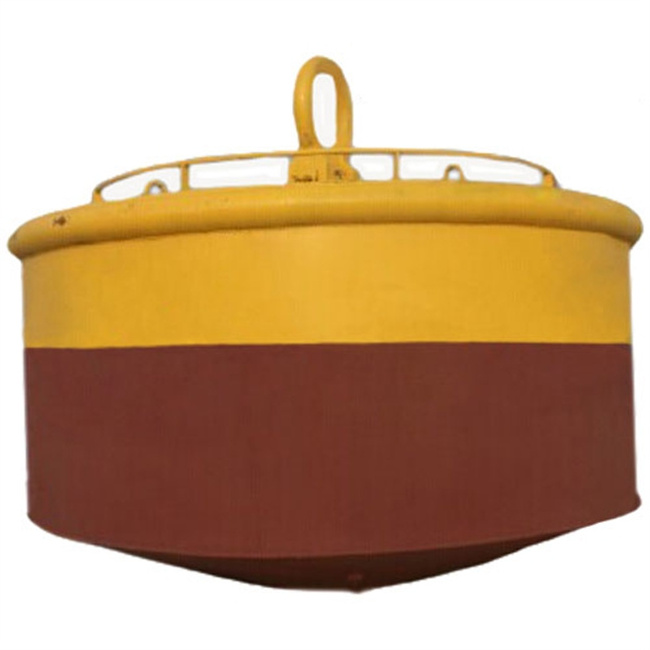

Marine Steel Mooring Buoy Product Introduction
The Steel Mooring Buoys offer safe, durable mooring operations and ensure efficient space usage.
The Steel Mooring Buoys are specially designed for the mooring of vessels in the most economical way.
The Steel Mooring Buoy is built from robust, high quality steel and fitted with the Quick Release Buoy Hooks.
Marine Steel Mooring Buoy Product Advantages
1. The Steel Mooring Buoy offers a sturdy mooring solution for vessels undergoing waiting or (dis)charging procedures.
The mooring safety, stability and sustainability is reinforced by the direct connection of the anchor chain to the mooring unit.
2. The Steel Mooring Buoy offers durability even in extreme corrosive environments. Several (internal) hook parts of the Steel Mooring Buoy are made of special coatings, bushings, grease and stainless steel.
3. Assure safe operation of the mooring hooks in all sea conditions with manually operated, quick release mechanisms.
4. The Steel Mooring Buoys are available in different sizes according to special requirements and conditions.
Marine Steel Mooring Buoy Shapes & Types
Marine Steel Mooring Buoy Product Features
– Good Stability
– Long Service Life
– High Luminous Efficiency
– Convenient Installation and Maintenance
– High Safety Performance
– Energy Saving
– Environment Protection
– High Wind Resistance Performance
– Strong Anti Hail Ability
– Economical and Practical
Marine Steel Mooring Buoy Product Specification
|
Type |
Buoyancy (without chain) (t) | Diameter X Height (m) | Chain Diameter (mm) | Lifting Bye (mm) | Recommend Sinker (t) | Mooring Shackle (mm) | Suitable for Ship Tonnage (t) |
| 2.0 | 3 | 2.0*1.74 | 62 | 45 | 4 | 90 | <2000 |
| 2.6 | 6 | 2.6*2.27 | 70 | 45 | 6 | 90 | <5000 |
| 3.6 | 19 | 3.6*2.14 | 90-122 | 50 | 8 | 140 | <10000 |
| 5.0 | 28.5 | 5.0*3.4 | 122 | 60 | 12 | 140 | <12000 |
| 5.5 | 31.2 | 5.5*3.0 | 122 | <100000 | |||
| 6.0 | 34.2 | 6.0*3.2 | 122 | <150000 | |||
| 8.0 | 40.3 | 8.0*2.46 | 122 | 100 | 120 | 170 | <250000 |
Henger provides OEM customized service which could product all mooring buoys according to customer's requirement.
Marine Steel Mooring Buoy Complete Set Installation Diagram
