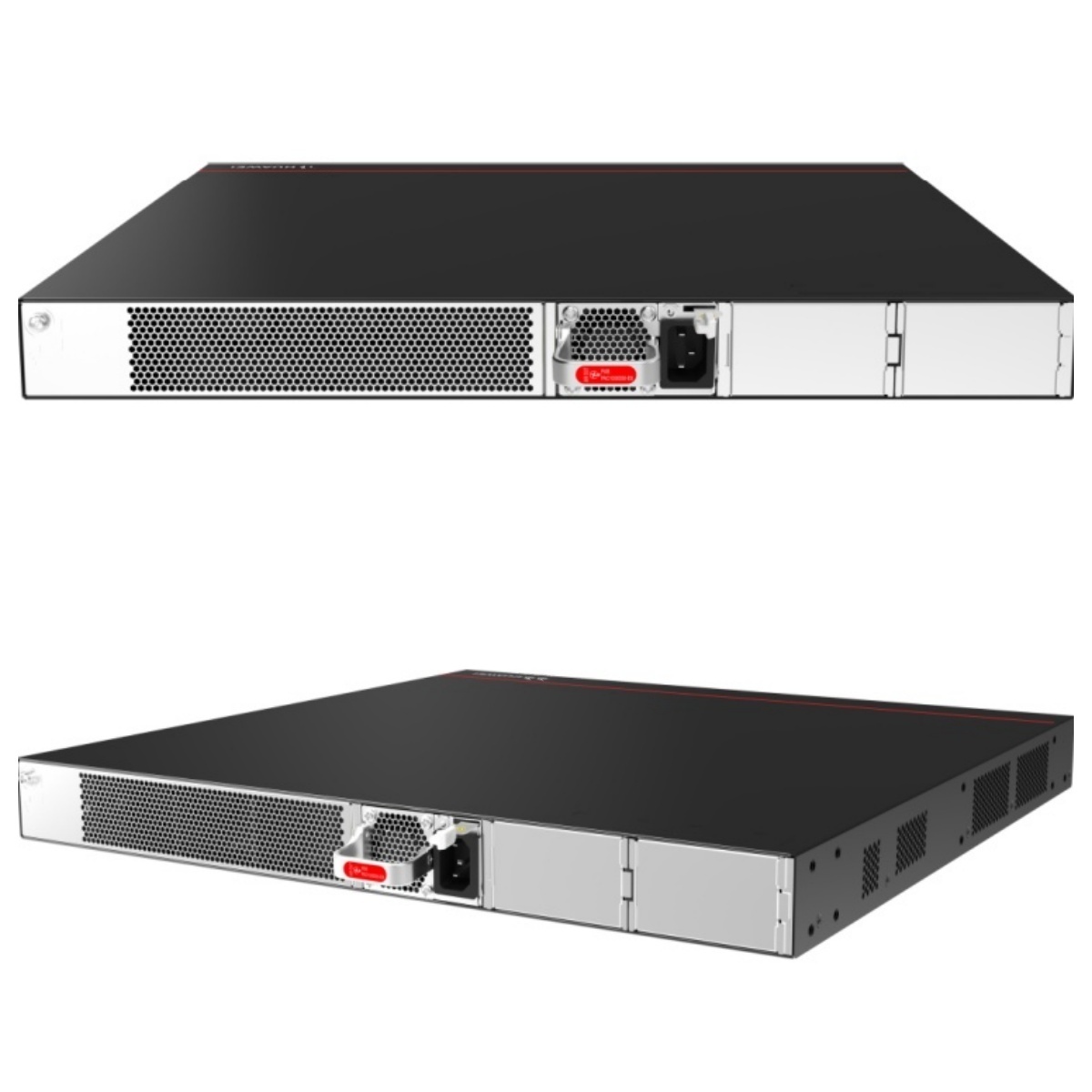

CloudEngine S5735-L48P4XE-A-V2 Web Managed Ethernet Reverse Switch 48*10/100/1000BASE-T Network Switch 16 Ports

Item

Description

MAC address
table

MAC address learning and aging
32K MAC entries (MAX)
Static,dynamic,and blackhole MAC address entries
Packet filtering based on source MAC addresses
Interface-based MAC learning limiting

VLAN features

4K VLANs
Voice VLAN
MUX VLAN
VLAN assignment based on MAC addresses,protocols,IP subnets,policies,and interfaces
VLAN Stacking

Ethernet loop
protection

Smart Link tree topology and Smart Link multi-instance,providing millisecond-level protection switchover
ERPS(G.8032)
STP (IEEE 802.1d),RSTP (IEEE 802.1w),and MSTP (IEEE 802.1s)
BPDU protection,root protection,and loop protection
BPDU tunnel
LLDP,LLDP-MED

Multicast

PIM DM,PIM SM,PIM SSM
IGMPv1N2/N3,IGMPv1N2/v3 snooping,MLD snooping
Multicast load balancing among member ports of a trunk
Interface-based multicast traffic statistics
Multicast VLAN

IP routing

Static route,RIP,RIPng,OSPF,OSPFv3,VRRP,VRRP6,Routing Policy,Policy-Based Routing
Up to 4096 FIBv4 entries (MAX)
Up to 1024 FIBv6 entries (MAX)

IPy6 features

Up to 1024 ND entries (MAX)
Path MTU (PMTU)
IPv6 ping,IPv6 tracert,and IPv6 Telnet

Reliability

LACP
VRRP
BFD
LLDP

QoS/ACL

2K rules per IPv4 ACL
2K rules per IPv6 ACL
Rate limiting on packets sent and received by an interface
Packet redirection
Interface-based traffic policing and two-rate and three-color CAR
Eight queues on each interface
DRR,SP,and DRR+SP queue scheduling algorithms
Re-marking of the 802.1p priority and DSCP priority
Packet filtering at Layer 2 to Layer 4,filtering out invalid frames based on the source MAC address,
destination MAC address,source IP address,destination IP address,TCP/UDP port number,protocol
type,and VLAN ID
Rate limiting in each queue and traffic shaping on interfaces
Network Slicing(VLAN)

Management and
maintenance

iStack
Cloud management based on Netconf/Yang
Virtual Cable Test (VCT)
Remote configuration and maintenance using Telnet
SNMPv1/V2/v3
RMON
eSight and web-based NMS
HTTPS
LLDP/LLDP-MED
System logs and multi-level alarms
802.3az EEE
IFIT
Port miroring
Registration Center Deployment

Interoperability

Supports VBST (Compatible with PVST/PVST+/RPVST)

ltem

S5735-L48P4XE-A-V2

Fixed port

48 x 10/100/1000Base-T ports(PoE+), 4 x 10GE SFP ports, 2 stack ports

Dimensions (H x W x D)

43.6 mm x 442 mm x 220 mm

Chassis height

1 U

Chassis weight (including packaging)

8.9 kg

Power supply type

1000W AC(pluggable)

Rated voltage range

100 V AC to 240 V AC, 50/60 Hz

Maximum voltage range

⚫ AC input: 90 V AC to 290 V AC, 45 Hz to 65 Hz

Maximum power consumption

⚫ 76.66 W (without PD)
⚫ 993.74 W(with PD,PD Power consumption of :846 W）

Noise

⚫ Under normal temperature (sound power): 49.3dB (A)
⚫ Under high temperature (sound power): 63dB (A)
⚫ Under normal temperature (sound pressure): 37.3dB (A)

Long-term operating temperature

⚫ 0-1800 m altitude: - 5°C to +50°C
⚫ 1800-5000 m altitude: The operating temperature reduces by 1ºC every time the altitude increases by 220 m.

Storage temperature

-40℃ to +70℃

Relative humidity

5% to 95%(non-condensing)

Surge protection specification (service port)

±7 kV in common mode

±6 kV in common mode

Surge protection specification (power port)

⚫ Differential mode: ±6 kV
⚫ Common mode: ±6 kV

⚫ Differential mode: ±2 kV
⚫ Common mode: ±4 kV

⚫ Differential mode:
±6 kV
⚫ Common mode: ±6 kV

⚫ Differential mode: ±6 kV
⚫ Common mode: ±6 kV

Heat dissipation

Air-cooled heat dissipation and intelligent speed adjustment

Physical security

One Kensington lock slot, can be used to lock the device to mounting bracket
