Quick Details
-
Voltage:
-
380V,50Hz
-
Dimension(L*W*H):
-
1980*1450*1800mm
-
Weight:
-
1100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Advantage:
-
High efficiency
-
Rate of ingress of oil:
-
High
-
Material:
-
Stainless steel
-
Capacity:
-
150-250kg/h
-
Rotary speed of worm section:
-
40rounds/min
-
Price:
-
Competitive
-
Working condition:
-
Stable and safe
-
Experience:
-
Over 20 years
Quick Details
-
Production Capacity:
-
42-52%
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Dafu
-
Voltage:
-
380V,50Hz
-
Dimension(L*W*H):
-
1980*1450*1800mm
-
Weight:
-
1100 KG
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Advantage:
-
High efficiency
-
Rate of ingress of oil:
-
High
-
Material:
-
Stainless steel
-
Capacity:
-
150-250kg/h
-
Rotary speed of worm section:
-
40rounds/min
-
Price:
-
Competitive
-
Working condition:
-
Stable and safe
-
Experience:
-
Over 20 years

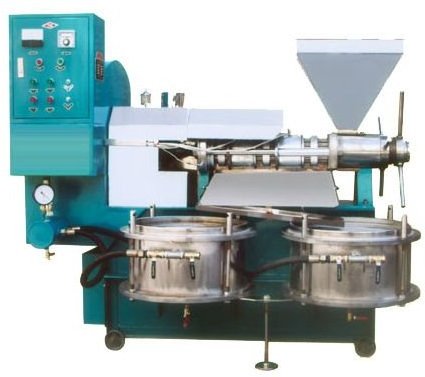

2024 Screw palm oil extraction machine with best design
This kind of oil press can be widely used to more than 20 kinds of easy and difficult plant oilseeds, such as peanuts, soybeans, rapeseed, cottonseed, sesame, olives, sunflowers, coconut, cocoa, seeds and so on. During pressing, it can be entirely squeezed one-time(except for some individual varieties).
All kinds of models of screw automatic oil presses made by us are of many good advantages: material selection is exquisite, reasonable design, beautiful shape, reliable quality, simple operation,less land occupation,labor saving,power saving,high yield,and oil quality is good, and so on. All technical indexes are leading in the same trade of the state-owned oil press. And the model of 6YZ-80 and 6YZ-100 are the new type products reformed by our factory engineers, which are the advanced equipment in the oilseeds processing machinery recently.
|
model Technical parameter |
6YZ-100(1688) |
6YZ-150(D1698) |
|
|
Diameter of worm section |
100mm |
150mm |
|
|
Rotary speed of worm section |
40rounds/min |
45 rounds/min |
|
|
Diameter of inscribed circle of press boring |
102mm |
152mm |
|
|
Equipped force |
Main frame |
Y132M6-7.5KW |
Y160L-4 15KW |
|
Vacuum pump |
Y801-4-1.1KW |
Y905-4 1.1KW |
|
|
heater |
3.5KW |
6KW |
|
|
Capacity |
150-250kg/h |
230-500kg/h |
|
|
Weight |
1100kg |
1800kg |
|
|
Overall dimension |
1980×1450×1800 |
2300×1700×1800 |
|
|
Oil Materials |
OilExtraction Rate % |
Oil OutPut (per100kg)
|
Residue Oil of Cake % |
Oil Quality |
Consumption Hot Press KW.H/T |
||
|
Impurity % |
Water % |
Acid Value% |
|||||
|
Peanut |
≥91 |
38-48kg |
≤8.0/6.0 |
≤0.20 |
≤0.20 |
≤0.40 |
≤35.0 |
|
Rapeseed |
≥80/85 |
30-40kg |
≤8.0/7.0 |
≤0.20 |
≤0.20 |
≤0.40 |
≤35.0 |
|
Soybean |
≥65/70 |
10-16kg |
≤7.0/6.0 |
≤0.20 |
≤0.20 |
≤0.40 |
≤52.0 |
|
Cottonseed |
≥75/82 |
9-13kg |
≤7.5/6.0 |
≤0.20 |
≤0.20 |
≤0.40 |
≤55.0 |
|
Sesame |
≥91 |
46-56kg |
≤8.0 |
≤0.20 |
≤0.20 |
≤0.40 |
≤35.0 |
After service
1. Our company has professional installation team. We will install and test the production line at the customers’ place until the equipment produces the qualified products.
2. We supply the accessories all the year round. The warranty of the equipment is one year.
3. We are responsible for the technical consultation and service all the year round and solve all kinds of technical problems at any time.
4. We can help the customer to do the consignment and the relevant procedure for import and export.
5. Our company will supply the information of the seller for all kinds if raw materials and relevant information.
6. The Operating Instruction will go to the customers with the equipment
If you are interested in our screw oil press machine and want to get more information about it, pls feel free to contact me by sending an inquiry or chating with me online, I will try my best to service for you.
