Quick Details
-
Dimension(L*W*H):
-
460*450*480mm
-
Weight:
-
65 KG
-
Production lead time:
-
5-7 days
-
Customized:
-
YES
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE
-
Product name:
-
Glue Dispensing Machine
-
Machine type:
-
Desktop
-
Definition:
-
Glue Automatic Dispenser Machine
Quick Details
-
Voltage:
-
220V / 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Robotsung
-
Dimension(L*W*H):
-
460*450*480mm
-
Weight:
-
65 KG
-
Production lead time:
-
5-7 days
-
Customized:
-
YES
-
After Warranty Service:
-
Online support
-
After-sales Service Provided:
-
Video technical support
-
Certification:
-
CE
-
Product name:
-
Glue Dispensing Machine
-
Machine type:
-
Desktop
-
Definition:
-
Glue Automatic Dispenser Machine

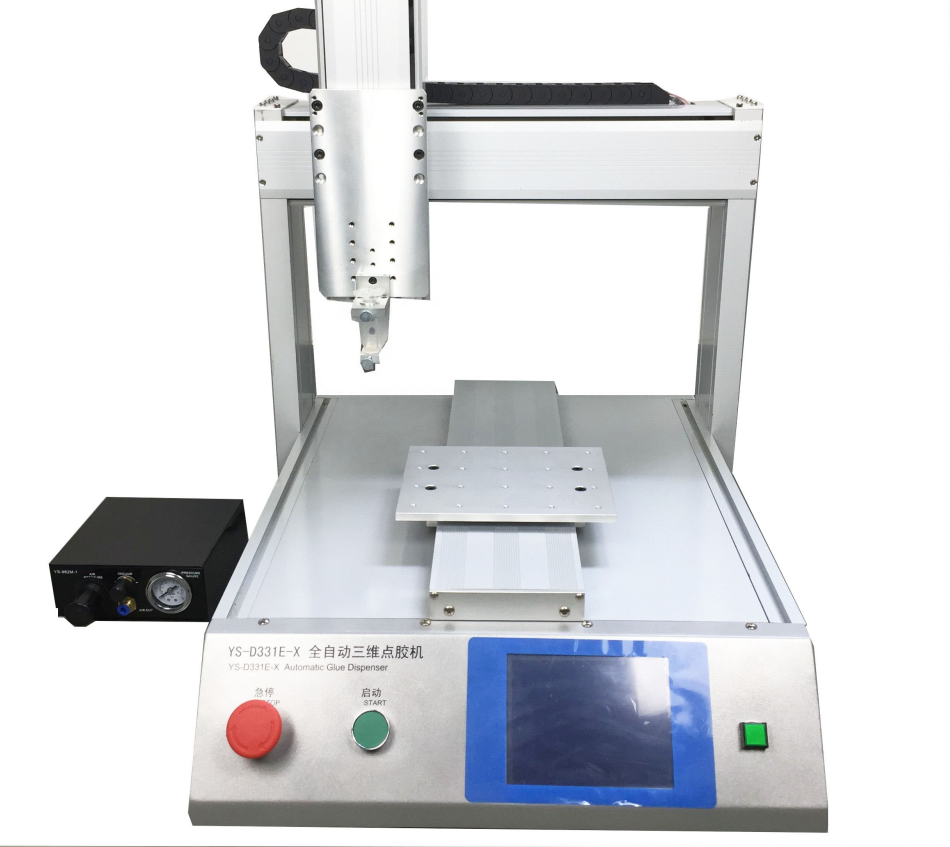

YS-D331 Glue Applicator Machine
Application:
Glue Dispensing Robot is widely used in the industrial production, such as PCB Board,speaker,MP3,MP4,LCD Display,integrated circuits, printed circuit boards, electronic components, automotive parts, handbag, packing box etc.
Glue Types:
Silica gel, EMI conductive adhesive, UV glue, AB glue, glue, epoxy adhesive, sealant, hot glue, grease, glue, red glue, silver paste, thermal paste, solder paste, transparent paint, etc.
Specifications:
| Model | YS-D331-X |
| Working area | 300*300*100mm |
| Max. speed | 500mm/sec |
| Resolution ratio | 0.01mm |
| Repeatability | ±0.01mm |
| Power | 250W |
| Voltage | 220V/110v 50-60Hz |
| Size | 460*450*480mm |
| Weight | 90KG |
|
Operation environment
|
Temperature:5-40 degrees Celsius Humidity:20-90%RH |
| Customized |
YES |
Features:
1 English panel, easy operation.
2.Glue Dispenser Function: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
3. Can set glue size, glue speed, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
4. Satisfy high quality glue dispensing by adjusting the parameters of screw
5. Precise stepper motor, numerical control available
6. Applied to fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
7.According to the production process, work platform can be installed with positioning PIN, glue guns, baseboard heating temperature controlling device.
