Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GR
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
High Consistency Hydraulic Pulper Paper Pulper Machine
-
Material:
-
Stainless Steel
-
Application:
-
Pulping equipment
-
Color:
-
Customers' Request
-
Advantage:
-
High quality
-
Raw material:
-
Waste paper
-
Customize service:
-
Available
-
Related products:
-
Paper making machine etc.
-
Certification:
-
ISO9001
Quick Details
-
Type:
-
Pulping Equipment
-
Production Capacity:
-
10sets/month
-
Max. workable width:
-
1200mm
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
GR
-
Voltage:
-
220V/380V
-
Dimension(L*W*H):
-
Configuration
-
Weight:
-
kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product Name:
-
High Consistency Hydraulic Pulper Paper Pulper Machine
-
Material:
-
Stainless Steel
-
Application:
-
Pulping equipment
-
Color:
-
Customers' Request
-
Advantage:
-
High quality
-
Raw material:
-
Waste paper
-
Customize service:
-
Available
-
Related products:
-
Paper making machine etc.
-
Certification:
-
ISO9001
High Consistency Hydraulic Pulper Paper Pulper Machine For Paper Processing
Pulp Making Equipment---Hydraulic Pulper Paper Pulper Machine
T hisHigh Consistency Hydraulic Pulper Paper Pulper Machine is mainly used to degrade pulp board, waste paper and broken paper, deinking and pulp purification.
Technical parameters
| Project name | GR-1 | GR-2 | GR-3 | GR-5 | GR-8 | GR-10 | GR-15 | |
| Effective volume( m²) | 1 | 2 | 3 | 5 | 8 | 10 | 15 | |
| Production capacity(t/d) | 3-4 | 6-8 | 9-12 | 15-20 | 24-32 | 30-45 | 40-80 | |
| Paste farmers degrees(%) | 8~15% | |||||||
| Tank diameter solutions(mm) | 1200 | 1550 | 1800 | 2200 | 2500 | 2800 | 3500 | |
|
The impeller diameter (mm) |
440 | 440 | 680 | 720 | 820 | 860 | 1050 | |
| The impeller speed(r/min) | 440 | 440 | 400 | 380 | 340 | 320 | 280 | |
|
Put the pulp mouth diameter(mm) |
108 | 159 | 219 | 219 | 219 | 250 | 250 | |
|
Dilute the mouth diameter(mm) |
50 | 89 | 89 | 89 | 108 | 108 | 108 | |
|
ZGS
energy-saving |
Type | Y160L-6 | Y180L-6 | Y200L-6 | Y225M-6 | Y280S-6 | Y280M-6 | Y315S-6 |
| power(kw) | 11 | 15 | 22 | 30 | 45 | 55 | 75 | |

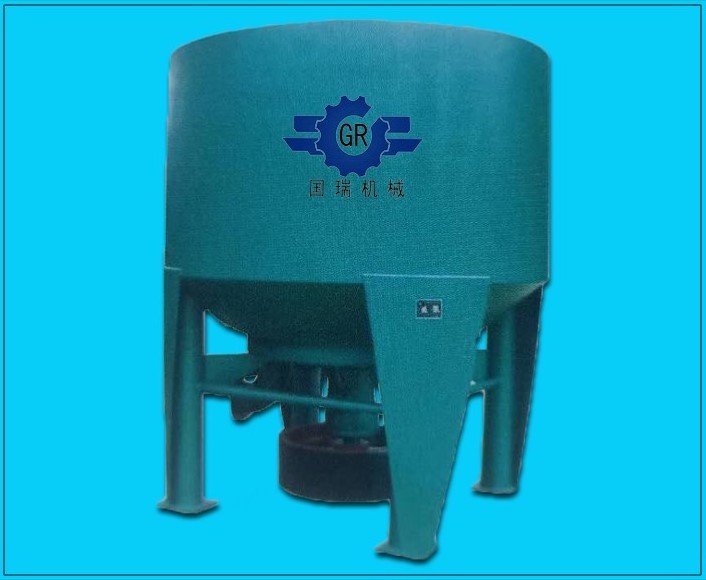

Paper pulper machine show
1.Wooden package;
2.Standard export package;
3.According to customers' requirments.
