Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
Customized
-
Tire:
-
Air Tyre
-
Frame:
-
Hi-Ten
-
Size:
-
20 Inch
-
Fork:
-
20" Steel Fork
-
Saddle:
-
Black Saddle
Quick Details
-
Fork Material:
-
Steel
-
Wheel Size:
-
20"
-
Frame Material:
-
Steel
-
Place of Origin:
-
Zhejiang, China
-
Color:
-
Customized
-
Tire:
-
Air Tyre
-
Frame:
-
Hi-Ten
-
Size:
-
20 Inch
-
Fork:
-
20" Steel Fork
-
Saddle:
-
Black Saddle

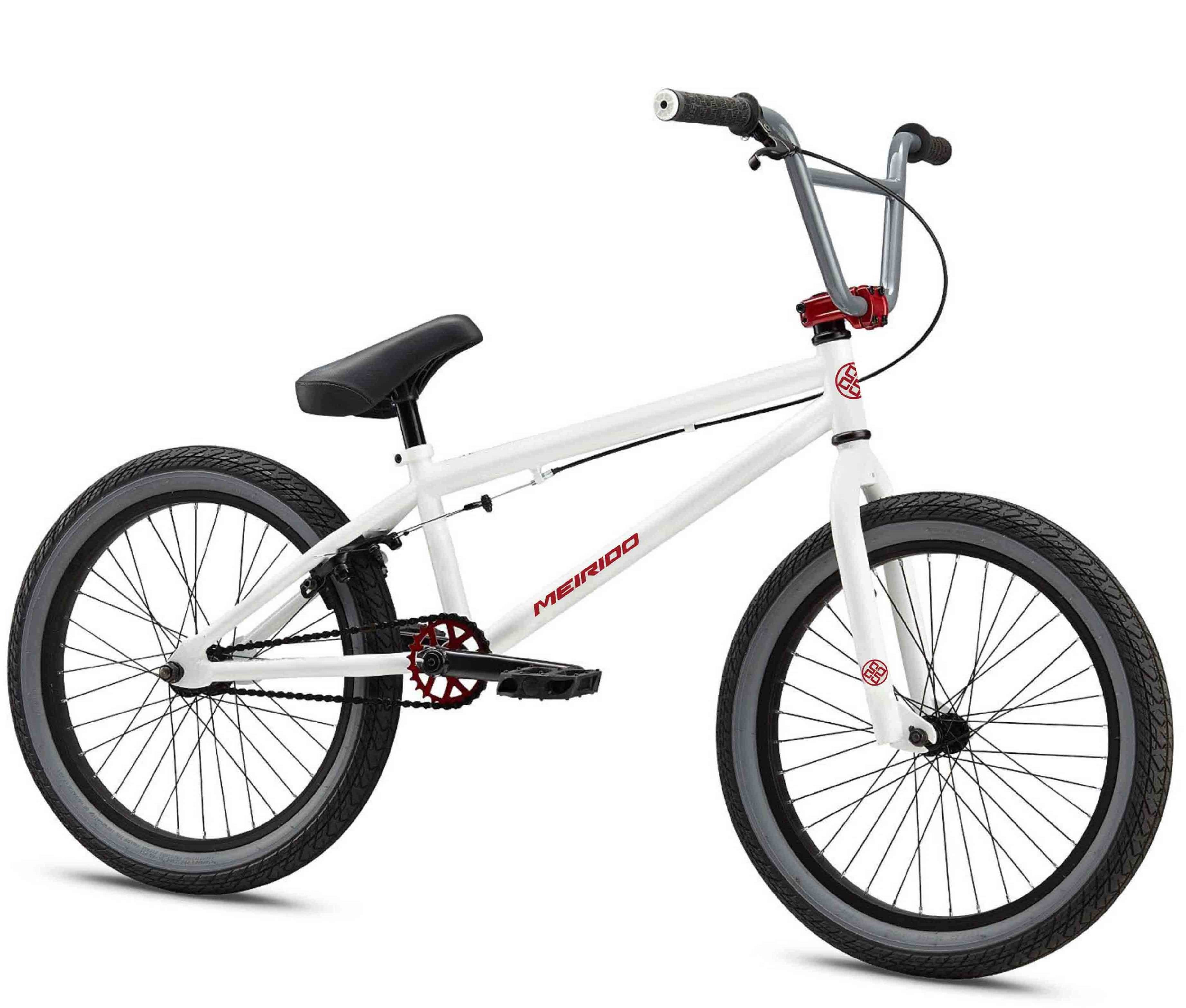

Freestyle Bicycle:
SY-FS2097
Frame: 20" Chromoly Steel main tuba (TT&DT).21" top tube length ,
Fork: 20" Chromoly Legs
Handlebar: HI-TEN Bars 8-3/4" Tall x 29" Wide
Chain wheel: steel ½"* 1 / 8 "*25T
Free wheel: ½"* 1 / 8 "*9T 1-pc driver
Brake: Tektro 907u-brake rear
Bottom braket : USA BIG size .sealed bearing 19mm.spindle drive train:25*9Tgearing,3-pc cr-mo 170mm cranks senled mid B.B KMC chain
Pedals: pc pedals , aluminum axle
Rim : 20"*1.75" aluminum
| SPC | VENDOR | Component | COMPONENT COLOR |
| DECAL/NAME PLATE | BLUESKY | WATER TRANSFER DECAL | |
| FRAME | MEIRIDO | 20 INCH Cr-Mo Steel TOP TUBE SIZE 21" KENCYCLE DESIGNED, | PAINTI NG |
| FORK | KSK | THREADLESS 1-1/8" Cr-Mo Steel | PAINTING |
| HEAD SET | VP | AHEADSET THREADLESS,9PCS | BLACK |
| HEADSET SPACERS | VP | HI-TEN BLACK | BLACK |
| TOP CAP/STAR NUT | VP | TOP CAP W/STAR NUT | BLACK |
| SPROCKET/SPIDER | CW | CHUAN WEI MODEL 1/8”x25T ALLOY CHAINRING | SU |
| CRANK SET | CW | 3-PC TUBULAR SEAMLESS ARMS 170MM | CP |
| BB-SET | CW | 19MM SPINDLE- 8 SPLINE INTERFACE | BLACK |
| HANDLEBAR | EVG | BMX Hbar .Hi Ten. | CP |
| STEM | EVG | 28.6*55MM EXT; BAR BORE 22.2MM | BLACK |
| GRIP | VELO | VELO GRIP 130MM LENGTH | BLACK |
| H/BAR END PLUG | N/A | N/A | |
| F/HUB | RT HUB | KT HUB; MODEL 48H LOW FLANGE ALLOY SHELL | BLACK |
| R/HUB | RT HUB | KT HUB; MODEL 48H LOW FLANGE ALLOY SHELL | BLACK |
| FRONT RIM | SNM | Singlewall rim. PBR 20"*1.75" | BLACK |
| REAR RIM | SNM | Singlewall rim. PBR 20"*1.75" | BLACK |
| SPOKES | SLE | 14 GAUGE STEEL; LACED 3 CROSS | UCP |
| FRONT TIRE/TUBE/STRIP | WANGDA | TUBE 20X 2.125" A/V RIM STRIP 20"*16W |
BLACK WITH BROWN SIDE |
| REAR TIRE/TUBE/STRIP | WANGDA | TUBE 20X 2.125" A/V RIM STRIP 20"*16W |
BLACK WITH BROWN SIDE |
| F/BRAKE | N/A | N/A | |
| R/BRAKE | Promax | Promax BMX U-BRAKE | BLACK |
| BRAKE LEVER | Promax | Promax Melt Forged alloy | BLACK |
| BRAKE CABLE/CASING | LEE CHI | LEE CHI 2P 2C | BLACK |
| ROTOR | NIL | ||
| FREEWHEEL | LIDA | LMA-8 BLACK | BLACK |
| CHAIN | KMC | KMC Z410A | BROEN |
| CHAINGUARD | NIL | CP | |
| SADDLE | KEN | PIVOTALASTIC NO FOAM AND NO COVER | BLACK PLASTIC |
| SEAT POST | PREMETEC | STEEL PIVOTAL POST 25.4 X 250MM | CP |
| SEAT CLAMP | Promax | Promax MX-38-RT; 31.8MM | BLACKANO JY-002 |
| PEDALS | VP | VP-565 Aluminum; Ball Bearing; 9/16" | BLACK |
| CHAIN TENSIONER | PMT | YES | |
| PEGS | HQ | STEEL 38*110MM 4PCS COLOR ED | BLACK |
| REFLECTORS | CATEYE | AS REQUIRED TO MEET CPSC REQUIREMENT; WHITE WHEEL; WHITE FORWARD FACING; RED REAR FACING | |
| MISC | N/A | N/A | |
| F/REF. BRKT | YF | FOR HANDLEBAR CROSS BAR | BLACK |
| R/REF. BRKT | YF | FOR SEAT POST | BLACK |
| F. AXLE SAFETY RET | BLACK | BLACK | |
| BOLTS | SG | STAINLESS | BLACK |
| MANUAL | AS CLIENT REQUIRE | ||
| PACKING MATERIAL | CARDBOARD PAPER WRAP | ||
| CARTON | 5 PLY EXPORT STANDARD | ||
| FRAME/FORK FINISH: | AS ORDER | PAINTI NG | |
| HANDLEBAR FINISH | AS ORDER | MATTE BLACK | |
| PACKING | SKD 85% | 1SET/CARTON | |
| CKD | A+B CARTON PACKING |
