Quick Details
-
Pulse Frequency:
-
1-10HZ
-
Pilot Arc Current:
-
1-350A
-
Rated Duty Cycle:
-
80%
-
Dimensions:
-
370X150X250MM
-
Use:
-
repair welding
-
Voltage:
-
AC 220V/230V 50/60 HZ
-
Power:
-
3600w
-
Weight (KG):
-
7.3 KG
-
Model:
-
HS-ADS03
-
Input voltage:
-
AC 220V/230V 50/60 HZ
-
Input Power:
-
3600W
-
Welding current:
-
10-200A
-
Control way:
-
Inverter control
-
Suggest thickness of continuous welding:
-
0.5-3mm
-
Suggest thickness of pulse welding:
-
1-8mm
-
Rate Input Power:
-
4.5KVA
-
Rate Work Voltage:
-
18V
-
Certification:
-
ISO9001 CCC CE SGS
Quick Details
-
Place of Origin:
-
Anhui, China
-
Brand Name:
-
Huasheng
-
Arc Current:
-
10-350A
-
Pulse Frequency:
-
1-10HZ
-
Pilot Arc Current:
-
1-350A
-
Rated Duty Cycle:
-
80%
-
Dimensions:
-
370X150X250MM
-
Use:
-
repair welding
-
Voltage:
-
AC 220V/230V 50/60 HZ
-
Power:
-
3600w
-
Weight (KG):
-
7.3 KG
-
Model:
-
HS-ADS03
-
Input voltage:
-
AC 220V/230V 50/60 HZ
-
Input Power:
-
3600W
-
Welding current:
-
10-200A
-
Control way:
-
Inverter control
-
Suggest thickness of continuous welding:
-
0.5-3mm
-
Suggest thickness of pulse welding:
-
1-8mm
-
Rate Input Power:
-
4.5KVA
-
Rate Work Voltage:
-
18V
-
Certification:
-
ISO9001 CCC CE SGS

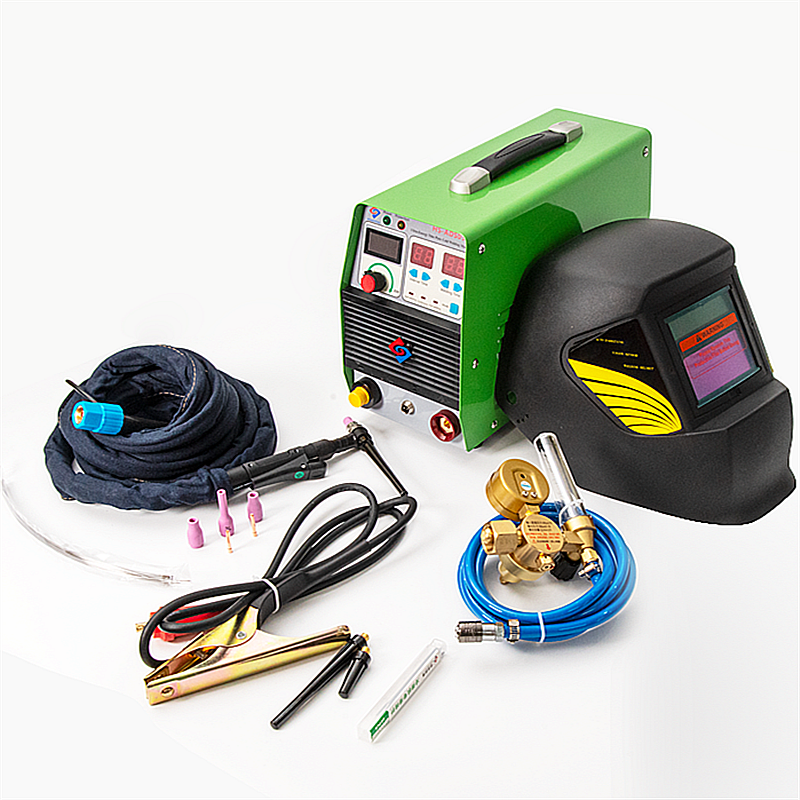

Product Description
HS-ADS03 can release the electrical energy stored in the capacitor between the tungsten electrode and the workpiece in the form of a pulsed arc in an instant. The arc with a higher temperature causes the workpiece composed of metal materials and the welding wire to quickly melt and fuse together to achieve the purpose of welding repair .
Welding Repair materials:
In addition to materials with very low melting points such as zinc and tin and cemented carbide, various metal materials (including copper and aluminum)
Pieces can be repaired.
Weldable items:
1. Local wear and tear caused by equipment and mold during use.
2. Processing defects in the manufacturing process, such as trachoma pores, excessive size, corner damage, insufficient argon welding, etc.
3. The rust spots and other depressions in the cavity.
Welding Skills:Welding can be directly without gaps, if there is gaps need to add rod
The key to self-melting
The tungsten is aimed at the gap, and the arc is aligned with the gap. If the welding point is not formed, it means that the tungsten needle is far away from the workpiece. You can put the tungsten needle closer.Don't be afraid of the tungsten needle sticking to the workpiece
Tips for adding welding wire
The tungsten pin is placed in front of the welding wire. After the first point is set, each subsequent point is placed at the tail of the previous point (in front of the tungsten )
|
Model
|
HS-ADS03
|
|
Output Power
|
3600W
|
|
Output Current
|
10-200A
|
|
Input Voltage
|
AC 220V 50/60HZ
|
|
Suggest welding thickness of pulse welding
|
0.5-3mm
|
|
Suggest welding thickness of continuous welding
|
1-8mm
|
|
Machine size
|
370x150x250MM
|
|
Machine Weight
|
7.3KG
|
Welding Case
Laser welding machine
Big machine（heavy）
High price(experience)
Limited firmness(
Not solid
）
TIG welding
High technical requirements, 10 years welding experience
High calorific value, easy to deform and damage the base metal
Less weldable materials
Packing&Shipping
Related Products
Company Introduction
Anhui Huasheng Electrical and Mechanical Equipment Co., Ltd. is located in the beautiful rice paper village, the most popular tourist destination in Anhui Province Xuancheng Jing County. Beijing-Fuzhou high-speed rail, 205 National Road across the county, and Xuancheng Shanghai-Chongqing Expressway, Wuhu City, the port and the airport to build a strong transport network. Beautiful human environment and convenient traffic conditions, to the company to provide a broad space for development.Company is located in Jingxian County Economic Development Zone, covering over 15,000 square meters with a registered capital of 10 million yuan. Manufacturing and sales, with an annual output of 10 million units of excellent quality and reliable performance of the AC-DC micro-motor series of products, while the production of cold welding machines, mold repair machines, Casting repair machine, cast aluminum cold welder, precision mold repair machines and other high-end products, to fill the gaps in the domestic market-related industries. The company has a strict management mechanism, with independent research and development capabilities.The company set up under the product research and development, marketing, network promotion, the Ministry of Finance, such as more than 10 management departments, the existing 15 senior technical engineers, dozens of top technical personnel, sales team of more than 100 people. Products throughout the country, widely used in mold, casting, electrical, medical, automotive, shipbuilding,boilers, construction, steel, bridge construction and other industries. Involving a wide range of products, products in short supply. In order to meet the needs of the market, the company in Shanghai, Qingdao and other places with a number of subsidiaries.At the same time, the company will work with the leading enterprises in Anhui Province, South China Machinery and Electric Union alliance, the implementation of powerful combination for the company to achieve strategic development to provide a strong guarantee.In the future development process, we will uphold the "integrity-
After Sales Service
Contact us
E-mail:salehuasheng@163.com
We Chat: 0086 18156331680
Skype:0086 18156331680
QQ: 397648044
FAQ
Q: What is the difference between cold welding machine and argon arc welding?
A: The cold welding machine is a high-frequency pulse, and it is instantly discharged. The high-energy power stored in the internal capacitor is discharged in about 10 milliseconds, and no heat is accumulated after welding, so it is called a cold welding machine. Argon arc welding is continuous heating, the heat accumulation is too high, the material will be deformed and discolored, and the pulse function is used in time.Due to its long discharge time, about a few hundred milliseconds, it still cannot reduce the heat.
Q: What is the principle of cold welding machine?
A: The cold welding machine is a high-frequency pulse, and it is instantly discharged. The high-energy power stored in the internal capacitor is discharged in about 10 milliseconds, and no heat is accumulated after welding, so it is called a cold welding machine.
Q: Is the argon consumption much?
A: It's about one third of argon arc welding.
Q: What is the principle of cold welding machine?
A: The cold welding machine is a high-frequency pulse, and it is instantly discharged. The high-energy power stored in the internal capacitor is discharged in about 10 milliseconds, and no heat is accumulated after welding, so it is called a cold welding machine.
Q: Is the argon consumption much?
A: It's about one third of argon arc welding.
