Quick Details
-
Size:
-
13000*3000*1760mm
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Lowbed Semi Trailer
-
Axle:
-
FUWA
-
Function:
-
Heavy Duty Loading
-
Suspension:
-
Mechanical Suspension Air Suspension
-
Tire:
-
12R22.5
-
Landing Gear:
-
Standard 28Ton
-
Color:
-
Customers Optional
-
Loading capacity:
-
60-120 Tons
-
Brake System:
-
Dual Line Braking System
-
Rim:
-
9.00*22.5/6.5-20 (12/16 Pieces) Steel/Aluminum
Quick Details
-
Type:
-
Semi-Trailer
-
Max Payload:
-
25001-30000 kg
-
Brand Name:
-
EVERGROW
-
Size:
-
13000*3000*1760mm
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
Lowbed Semi Trailer
-
Axle:
-
FUWA
-
Function:
-
Heavy Duty Loading
-
Suspension:
-
Mechanical Suspension Air Suspension
-
Tire:
-
12R22.5
-
Landing Gear:
-
Standard 28Ton
-
Color:
-
Customers Optional
-
Loading capacity:
-
60-120 Tons
-
Brake System:
-
Dual Line Braking System
-
Rim:
-
9.00*22.5/6.5-20 (12/16 Pieces) Steel/Aluminum
A standard unit will feature all the necessities such as: JOST landing legs, 3-way twist locks, ramps for upper deck, tie-down points, 8mm thick laser cut side coaming, road-train bracket, LED side markers, ABS/EBS equipped.Double welded I-Beam chassis construction allows for a tough and rigid frame.Fully forklift and machine rated floors are standard.
Mechanical/Hydraulic Climbing Ladder
High Quality Axle
Landing Gear
|

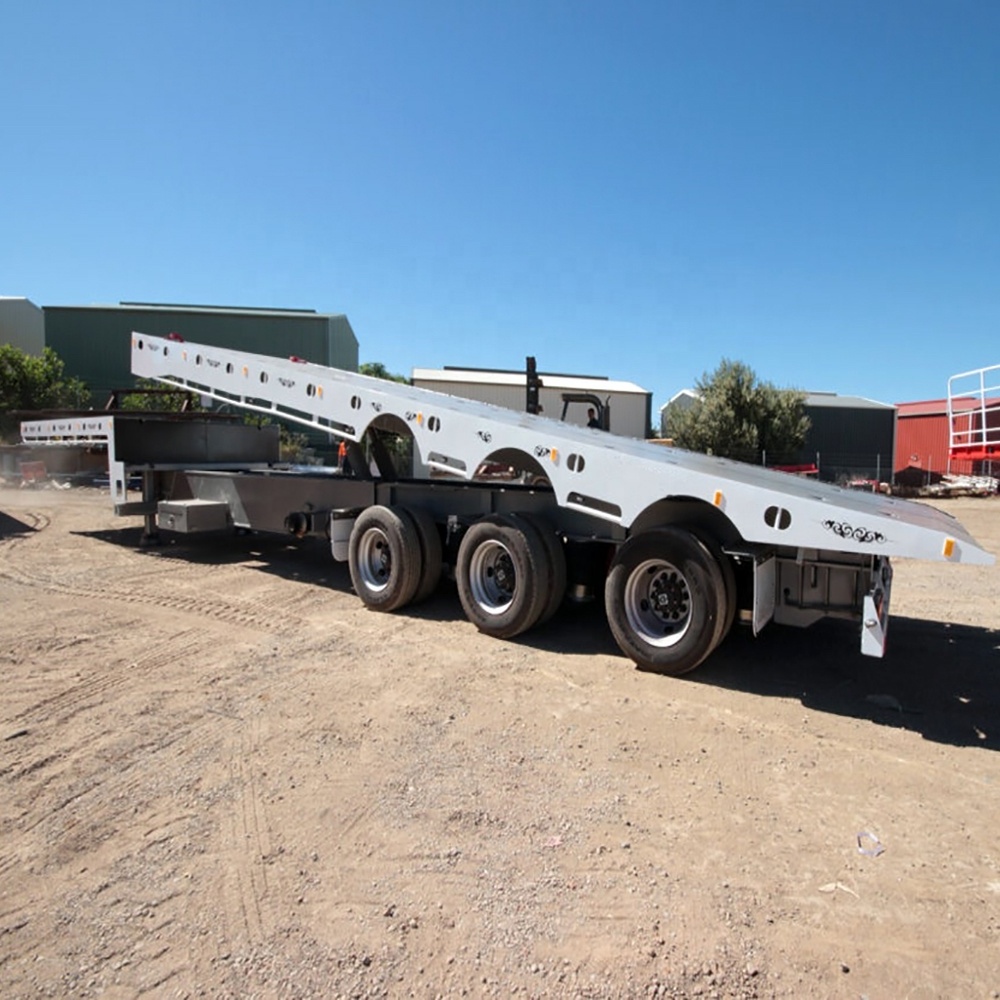

LOWBED SEMI TRAILER
|
|
|
|
|
||||
|
Product Name
|
|
Lowbed SemiTrailer
|
|
|
||||
|
Application
|
|
Heavy Duty Loading
|
|
|
||||
|
Chassis Beams I-Beam
|
|
20mm thick Flange plates (350mPa)
|
|
|
||||
|
|
|
6mm Webbing plate (450mPa)
|
|
|
||||
|
Floor
|
|
5mm Chequer-Plate flooring, mild steel at 350mPa tensile
|
|
|
||||
|
Under-Floor
|
|
heavy duty I-Beam cross-members, with 30 x 30 x 3mm under-floor runners for extra support.
|
|
|
||||
|
Skid-Plate
|
|
12mm, with two position bolt-on king pin boss-plates fitted as standard
|
|
|
||||
|
Axle
|
|
3/4 Axles *13/16 Ton FUWA/BPW/Other
|
|
|
||||
|
Tire
|
|
12R22.5/8.25r20 (12/16 Pieces) Linglong/Triangle/Double-Coin/Bridgestone/Other
|
|
|
||||
|
Road-Train Bracket
|
|
20mm thick folded C-Channel. With extra support gussets. Constructed from 350mPa mild steel
|
|
|
||||
|
Suspension System
|
|
Mechanical or Air Suspension
|
|
|
||||
|
Ladder
|
|
Mechanical Spring/Hydraulic
|
|
|
||||
|
King Pin
|
|
JOST 50mm or 90mm available
|
|
|
||||
|
Twist Lock
|
|
3-way twist locks
|
|
|
||||
|
Landing Gear
|
|
JOST A400 Landing Gear (JOST E100 Also used).
|
|
|
||||
|
Length
|
|
Overall Length 45 FT (13720mm)- including the ramps
|
|
|
||||
|
Width(Exterior)
|
|
2500mm
|
|
|
||||
|
Height (20 inch axles)
|
|
1100mm
|
|
|
||||
|
Height (19.5 inch axles)
|
|
995mm
|
|
|
||||
|
Height (15 inch axles)
|
|
920mm
|
|
|
||||
|
Capacity (ATM)
|
|
45 Tonnes
|
|
|
||||
|
Capacity (GTM)
|
|
25 Tonnes
|
|
|
||||
|
Tare Weight
|
|
Without Bi-Fold Ramps: 9.8 Tonnes; With Bi-Fold Ramps: 10.5 Tonnes
|
|
|
||||
|
Side Coaming
|
|
8mm Thick Cold-Rolled sheet steel; Tensile Strength = 650mPa
|
|
|
||||
|
Rear Tail-Gate
|
|
Industrial C-250 channel – with multiple supports welded. Standrad rear bumper bar installed (constructed from 100 x 100 x 6mm
RHS) |
|
|
||||
1. Road transport supplier, 6 productionlines to ensure 100% on-time delivery.
2. 20 years service experience in Australia,North America,Europe and other markets.
3.Special model customization service.
4.Resident service teams overseas to provide certification and licensing services.
5.Provide the best shipping solutions to reduce sea freight costs by more than 15%.
2. 20 years service experience in Australia,North America,Europe and other markets.
3.Special model customization service.
4.Resident service teams overseas to provide certification and licensing services.
5.Provide the best shipping solutions to reduce sea freight costs by more than 15%.
Nude packing
More customerized shipping scheme welcome to contact us.
Q1. Are you a factory or trading company?
We are a comprehensive factory integrating product design, R&D , production and sales. Welcome to visit our factory and production line at any time.
Q2. Could you accept special design and specification?
Of course. As we all know, traffic laws are different in different regions, our professional engineers will design and our well-trained staff will produce according to the special requirements of customers. Such as: special size, special control or OEM,etc
Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. Do you have stock?
Yes, we have some stock in our warehouse for urgent ordering, but the main design has been completed and the only thing we can change is some spare parts such as tires, axles, stickers, paint, etc.
Q5. How to control quality?
We have formulated all process inspection and quality control standards, including raw materials, production process, finished products. Advanced equipment and standard inspection processes guarantee quality.
Q2. Could you accept special design and specification?
Of course. As we all know, traffic laws are different in different regions, our professional engineers will design and our well-trained staff will produce according to the special requirements of customers. Such as: special size, special control or OEM,etc
Q3. Are you looking for an agent?
Yes, we're looking for the agent all over the world, you are welcome to contact us for further discussion.
Q4. Do you have stock?
Yes, we have some stock in our warehouse for urgent ordering, but the main design has been completed and the only thing we can change is some spare parts such as tires, axles, stickers, paint, etc.
Q5. How to control quality?
We have formulated all process inspection and quality control standards, including raw materials, production process, finished products. Advanced equipment and standard inspection processes guarantee quality.
