Diesel fire pumps national standard name for "engineering diesel fire pumps", the national standard model for the XBCL / Q which L
for the head value, Q for the flow value.
XBC diesel fire pumps is the latest according to the national standard for the GB6245-2006 "Fire Pump Performance Requirements and
Test Methods".
This series of products has wide range of head and flow, which can fully satisfy the fire-fighting water supply of various
occasions in warehouses, wharves, airports, petrochemical plants, power plants, liquefied petroleum gas stations, textile and
other industrial and mining enterprises. Translated with DeepL.com (free version)
- Product Details
- {{item.text}}
Quick Details
-
Product name:
-
Diesel fire pump
-
Power (output):
-
220HP
-
Structrue:
-
Multistage Pump
-
Power Source:
-
Electric
-
Pressure:
-
High pressure
-
Application:
-
Industrial Utilities, Irrigation and Agriculture
-
Pump lift:
-
7-10 Bar
Quick Details
-
Place of Origin:
-
Fujian, China, Fujian China
-
Brand Name:
-
TXXF, TXXF
-
Model Number:
-
14/60-150W, 14/60-150W
-
Product name:
-
Diesel fire pump
-
Power (output):
-
220HP
-
Structrue:
-
Multistage Pump
-
Power Source:
-
Electric
-
Pressure:
-
High pressure
-
Application:
-
Industrial Utilities, Irrigation and Agriculture
-
Pump lift:
-
7-10 Bar
Products Description
Diesel fire pumpsfor Equipment for firefighting.
Maintenance of diesel fire pumps
1.Observe the amount of fuel stored in the fuel tank and add enough as needed.
2.Check the oil level in the oil sump
3.Check the oil level of the governor of the injection pump
4.Check whether there is enough lubricating grease in the oil filling point of thepump.
5.Check whether there is enough water in the water tank
6.Check the three leaks (water, oil, gas) situation
7.Check thecondition of the acid in the battery
8.Check the installation of diesel engine accessories
9.Check the injection pump transmission connection disk
10.Clean the appearance of the diesel engine and ancillary equipment
|
Type
|
Flow rate(Q)
|
lift(H)
|
Power(P)
|
Notes
|
|
14/60-150W
|
|
7-14Bar
|
220HP
|
Including battery pack and fuel tank
|
|

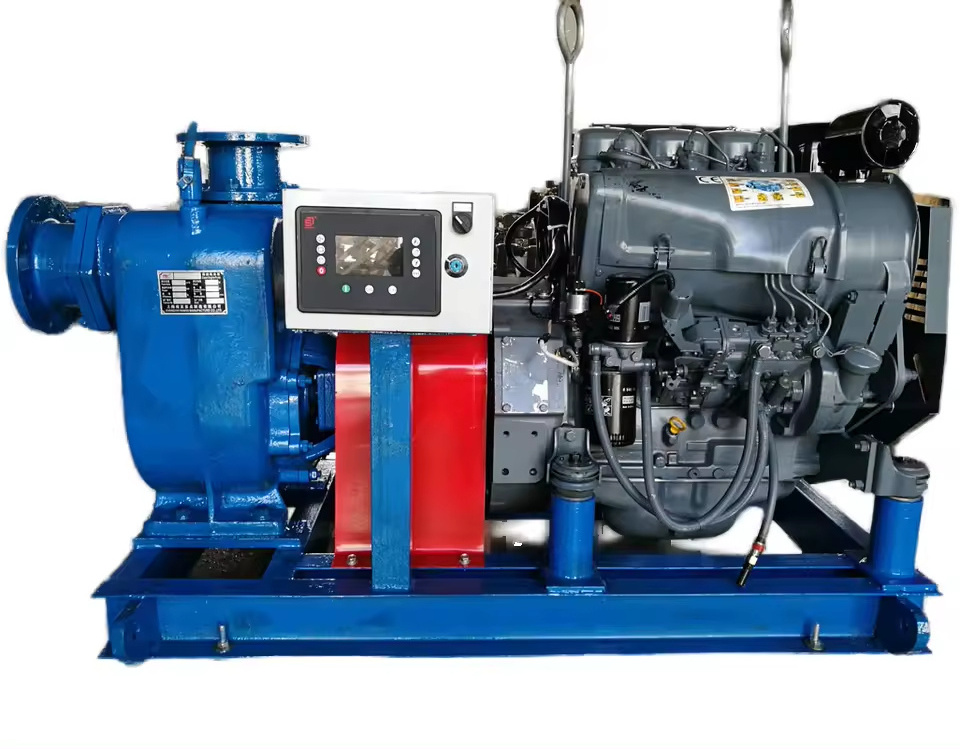

Diesel Engine Fire Pump Unit
|
|
|
|
|
||||
|
The product is characterized by good starting, strong overload capacity, compact structure, convenient maintenance, simple use and
high degree of automation, and it is a kind of fire fighting equipment with reliable performance. |
|
|
|
|
||||
|
Operating conditions:
|
|
|
|
|
||||
|
1. Altitude of sea level: ≤2500 meters
|
|
|
|
|
||||
|
2. Ambient temperature: -25～55℃
|
|
|
|
|
||||
|
3. Relative humidity of air: 9～95%.
|
|
|
|
|
||||
|
4. Seismic intensity: 7 degrees
|
|
|
|
|
||||
Packing & Delivery
PP bags or cartons. They would be packed by carton or polybay or according to customer's requirement.
