Quick Details
-
Worktable Length:
-
5600mm(18.3feet)
-
Worktable Width:
-
2200mm(86.6inch)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANDER/OEM
-
Model Number:
-
FR-300
-
Warranty:
-
3 Years
-
Product name:
-
FR-300 LANDER Heavy Duty Auto Body Frame Machine
-
Using range:
-
Body Shop, 4S station
-
Color:
-
Customizable
-
Platform size:
-
Customizable
-
Surface finishing:
-
Powder coat
-
Chains:
-
2 * 12mm thick chains
-
Towers:
-
Two or more
-
Delivery time:
-
3-5 days after confirming
-
Max. Hydraulic Pressure:
-
70Mpa
-
Max. Tension (N):
-
100KN
Quick Details
-
Weight:
-
2200KG(4850LB)
-
Bench Height:
-
560mm(22.04inch)
-
Max. Lifting Capacity:
-
3500KG(7716LB)
-
Worktable Length:
-
5600mm(18.3feet)
-
Worktable Width:
-
2200mm(86.6inch)
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
LANDER/OEM
-
Model Number:
-
FR-300
-
Warranty:
-
3 Years
-
Product name:
-
FR-300 LANDER Heavy Duty Auto Body Frame Machine
-
Using range:
-
Body Shop, 4S station
-
Color:
-
Customizable
-
Platform size:
-
Customizable
-
Surface finishing:
-
Powder coat
-
Chains:
-
2 * 12mm thick chains
-
Towers:
-
Two or more
-
Delivery time:
-
3-5 days after confirming
-
Max. Hydraulic Pressure:
-
70Mpa
-
Max. Tension (N):
-
100KN

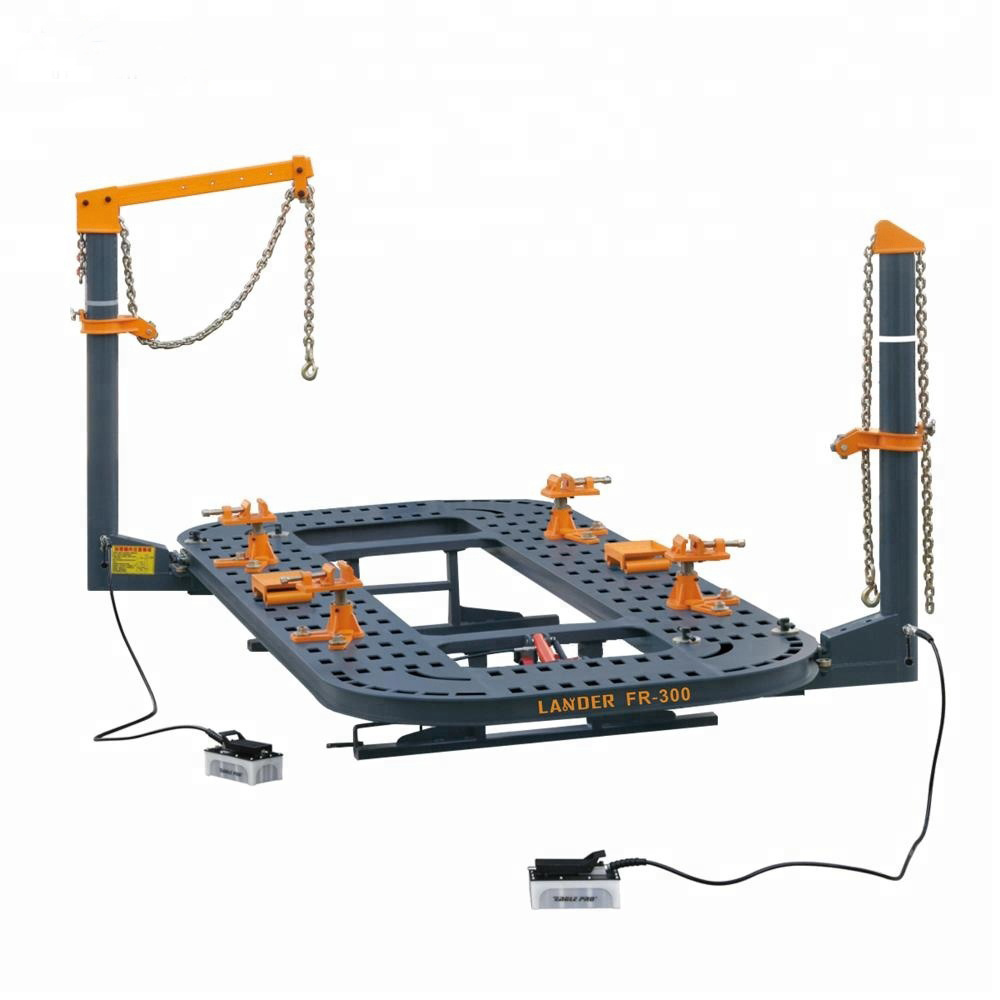

FR-300 LANDER Heavy Duty Auto Body Frame Machine
| SPECIFICATIONS OF FR-300(X) FRAME RACK | ||
| FR-300 | FR-300X | |
| Platform Length | 5200mm(17.06feet) | 5600mm(18.3feet) |
| Platform Width | 2100mm(82.67inch) | 2200mm(86.6inch) |
| Platform Height | 560mm(22.04inch) | 560mm(22.04inch) |
| Diameter of the Post | 160mm(6.3inch) | 160mm(6.3inch) |
| Height of the Post | 1900mm(74.8inch), 2100mm(82.67inch) | 1900mm(74.8inch), 2100mm(82.67inch) |
| Hydraulic Pressure | 70Mpa(10000PSI) | 70Mpa(10000PSI) |
| Post Max. Tension | 100KN (10Ton) | 100KN(10Ton) |
| Post Working Range | 360° | 360° |
| Lifting Capacity | 3500KG(7700LBS) | 3500KG(7700LBS) |
1. Designed to accommodate Full-frame or Uni-body type vehicles
2. Hydraulic Tilt Deck operation with 3500kgs(7700lbs.) lifting capacity
3. Universal anchoring system with adjustable heights
4. Clear floor, true 360 degree pulling capacity
5. Durable powder coat surface finish
6. Two towers with 10-ton hydraulics
7. Unique drive-on ramps
8. Two Air Hydrualic foot operated pumps
9. Complete tool board
10. 3 year structural warranty, 1 year hydraulic system warranty
