Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HuaZheng
-
Model Number:
-
UV-5100
-
Focal Length:
-
/
-
Wavelength Range:
-
/
-
Product name:
-

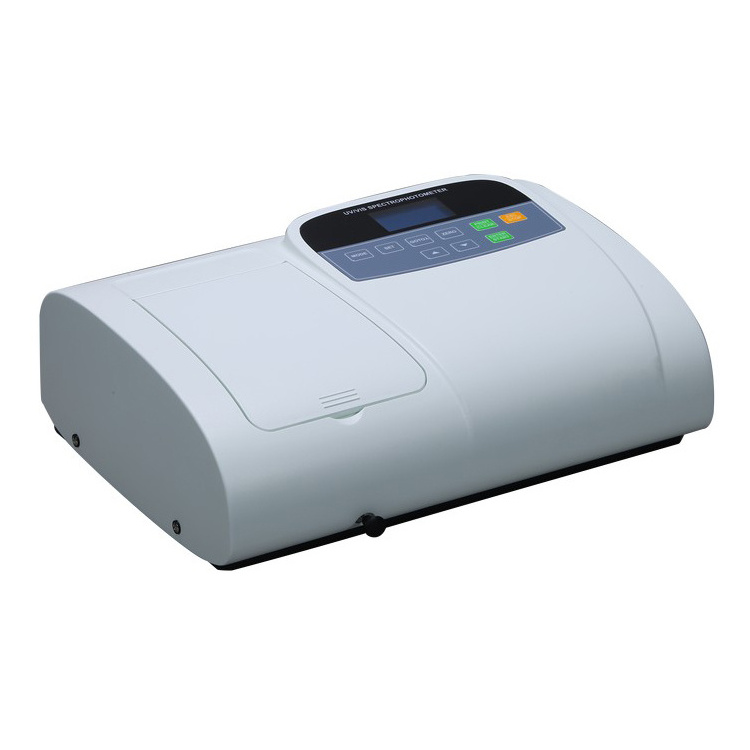

UV-5100 Top Double Beam UV Vis Visible Spectrophotometer
-
MOQ:
-
1
-
Certification:
-
CE
Quick Details
-
Warranty:
-
1 YEAR, 1 Year
-
Size:
-
/
-
Weight:
-
/
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
HuaZheng
-
Model Number:
-
UV-5100
-
Focal Length:
-
/
-
Wavelength Range:
-
/
-
Product name:
-
UV-5100 Top Double Beam UV Vis Visible Spectrophotometer
-
MOQ:
-
1
-
Certification:
-
CE
Huazheng UV-5100 Infrared Spectrophotometer190-1000nm 2nm Digital Single Beam UV-VIS Visible Spectrophotometer Price
I. Technical Specification
|
Model |
UV-5100 |
Photometric Range |
-0.3-3A,0-200%T,0-9999C |
|
Optical System |
Single beam, Grating 1200 lines/mm |
Photometric Mode |
T,A,C,F |
|
Wavelength Range |
190-1000nm |
Stray Light |
$0.1%T |
|
Spectral Bandwidth |
2nm |
Stabilty |
± 0.002A/h @500nm |
|
Wavelength Accuracy |
±2nm |
Display |
128*64 Dots LCD |
|
Wavelength Repeatability |
0.5nm |
Detector |
Silicon Photodiode |
|
Wavelength Setting |
Auto |
Output |
USB Port & Parallel Port |
|
Wavelength Resolution |
0.1nm |
Light Source |
Tungsten Lamp/Tungsten Lamp&D2 Lamp |
|
Photometric Accuracy |
±0.5%T |
Power Requirements |
AC 85~250V |
|
Photometric Repeatability |
≤ 0.3%T |
Dimension |
420* 30 0*1 6 0mm |
|
Weight |
11KG |
||
From the date of purchase within one year instrument, is a product quality problem free repair replacement, lifetime supply of maintenance and technical services. The instrument has found anomalies or malfunctions please contact us to arrange the most convenient treatment options.
