Quick Details
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Febnoy
-
Single Pulse Energy:
-
1000w/1500w
-
Pulse Width:
-
0.3-20ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0-6mm
-
Dimensions:
-
960*530*680mm
-
Weight (KG):
-
150 KG
-
Core Components:
-
fiber laser generator
-
Item:
-
handheld 1500 w laser welding machine
-
welding mode:
-
Contineous Welding , spot welding
-
Application material:
-
mild steel, stainless steel, aluminium
-
Power supply:
-
220V/50HZ
-
Welding gas:
-
N2/Ar
-
Welding thickness:
-
0.5-5 mm
-
Max.Welding speed:
-
120mm/s
-
Other functions:
-
thin metal cutting
-
Cleaning rust width:
-
30mm
-
Cooling System:
-
Water cooling
Quick Details
-
Max. Output Power:
-
1000w /1500w
-
Usage:
-
laser welding steel
-
Laser Source Brand:
-
MAX/RAYCUS
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
Febnoy
-
Single Pulse Energy:
-
1000w/1500w
-
Pulse Width:
-
0.3-20ms
-
Wavelength:
-
1064nm
-
Focal Spot Diameter:
-
0-6mm
-
Dimensions:
-
960*530*680mm
-
Weight (KG):
-
150 KG
-
Core Components:
-
fiber laser generator
-
Item:
-
handheld 1500 w laser welding machine
-
welding mode:
-
Contineous Welding , spot welding
-
Application material:
-
mild steel, stainless steel, aluminium
-
Power supply:
-
220V/50HZ
-
Welding gas:
-
N2/Ar
-
Welding thickness:
-
0.5-5 mm
-
Max.Welding speed:
-
120mm/s
-
Other functions:
-
thin metal cutting
-
Cleaning rust width:
-
30mm
-
Cooling System:
-
Water cooling
lightweld 1500 handheld laser welder cleaner new used laser welding machine for sale in malaysia
Products Description
Small size hand held laser welding machine 3 in 1 laser welder machine welding cutting cleaning
Febnoy fiber laser welding machine is a handheld device which adopts a high-quality fiber laser source to produce a fiber optic beam. After transmission processing, the light is focused on the workpiece to achieve continuous welding. The handheld fiber laser welding machine is more flexible and replaces the fixed light path in previous welding machines. The flexibility of the handheld equipment facilitates the welding of molds, advertising characters, kitchen utensils, doors and windows, etc but also makes laser welding possible in outdoor operations. Because the handheld fiber laser welding machine is so versatile it replaces traditional welding of electric welding, argon arc welding, etc. The handheld welding machine avoids the two thresholds of thermal strain and post-treatment, is environmentally friendly and pollution-free. The welding results are of high quality with no deformation or scar of the work piece.
Laser welding machine 3 in 1 functions welding, cutting and cleaning.
# Welding function
can be used for carbon steel, stainless steel, aluminum welding, etc.,
# Cutting function can be used for thin metal plate material cutting;
# Cleaning function can clean metal surface to remove rust, oil, stains, coating, etc.
Metal Laser Welding /cutting/ cleaning samples
This laser welder metal machine is suitable for welding and cutting of stainless steel pipe tube, iron steel tube ,aluminium and other metal materials,can be widely used in many industries ,such as aerospace equipment, elevator industry, medical equipment industry, stainless steel products industry, fitness equipment industry, decoration industries...It is also with the cleaning function for rust removal.
|

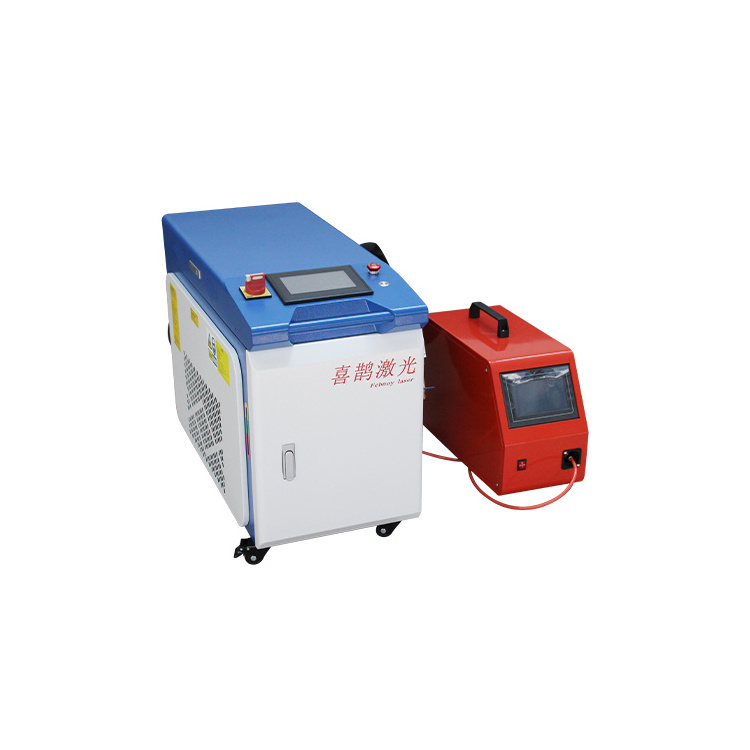

handheld Fiber laser welding cutting cleaning machine
|
|
|
|
Max. Output Power
|
1000w/1500w/2000w
|
|
|
Laser pulse frequency
|
5000HZ
|
|
|
Pulse width
|
0.3-20ms
|
|
|
Wavelength
|
1064nm
|
|
|
Beam quality
|
㎡≤1.5
|
|
|
Fiber Core Diameter
|
25μm 50μm 100μm
|
|
|
Focal Spot Diameter
|
0-6mm
|
|
|
Fiber cable length
|
8m
|
|
|
Welding Speed
|
0-120mm/s
|
|
|
Electricity requirement
|
AC220V,50/60HZ
|
|
|
Power stability
|
±1.5%
|
|
|
Size
|
960*530*680mm
|
|
|
Weight
|
150kg
|
|
Product details
|
Laser welding ability reference
|
|
|
|
|
||||
|
Laser power/ penetration Thickness
|
Stainless steel
|
Carbon steel
|
Galvanized steel
|
Aluminium
|
||||
|
1000w
|
≤ 2.5 mm
|
≤ 2.5 mm
|
≤ 2.5 mm
|
≤ 3 mm
|
||||
|
1500w
|
≤ 4.5 mm
|
≤ 4mm
|
≤ 4 mm
|
≤ 4 mm
|
||||
|
2000w
|
≤ 6 mm
|
≤ 6 mm
|
≤ 6 mm
|
≤ 6 mm
|
||||
