SDCAD Brand what do you mean by screw conveyor screw conveyor zero speed switch 16 screw conveyor

FOB Reference Price: Get Latest Price

≥1 Sets

US $1300

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Place of Origin:: Shandong, China

Brand Name:: SDCAD

Voltage:: Based on model

Dimension(L*W*H):: Based on model

Weight (KG):: 600 kg

Application:: Conveying

After-sales Service:: Engineer Site Service + Online Support

Capacity:: 10~160 T/h

Installation:: Engineer's Guide

Advantage:: 20 Years Production Experiences

Feature:: Simple Operation

Function:: Conving Equipment

Control System:: Automatically Control

Quick Details

Power:: 1.5 KW

Warranty:: 2 years

Width or Diameter:: Other

Place of Origin:: Shandong, China

Brand Name:: SDCAD

Voltage:: Based on model

Dimension(L*W*H):: Based on model

Weight (KG):: 600 kg

Application:: Conveying

After-sales Service:: Engineer Site Service + Online Support

Capacity:: 10~160 T/h

Installation:: Engineer's Guide

Advantage:: 20 Years Production Experiences

Feature:: Simple Operation

Function:: Conving Equipment

Control System:: Automatically Control

SDCAD Brand what do you mean by screw conveyor screw conveyor zero speed switch 16 screw conveyor

Product Overview

Screw Conveyor

Screw conveyors are horizontal, vertical, or inclined, and they are used to move a variety of materials, including powders,granules, and liquids.cement, chemical fertilizer and so on .

It is suitable for horizontal or inclined conveyor powdery, granulous and small block material, such as grain, dinas, coal, flour, Screw conveyors or auger conveyors use a rotating helical screw blade to move bulk materials .

Using temperature of environment is -20~50℃ ,conveying material temperature is ≤200℃ .

FEATURES AT A GLANCE

Diameter : 114 ~406mm.
Length ranges： 100~1800cm.
Capacity: 6~160T/h.

Tilt angle: 0~90° support customazation.

Application: Building materials, chemical industry, electric power, metallurgy, coal charcoal, grain ，coal, ash, slag, cement and grain.Etc.

Customized Solution is the Core concepts of SDCAD

Product Type：

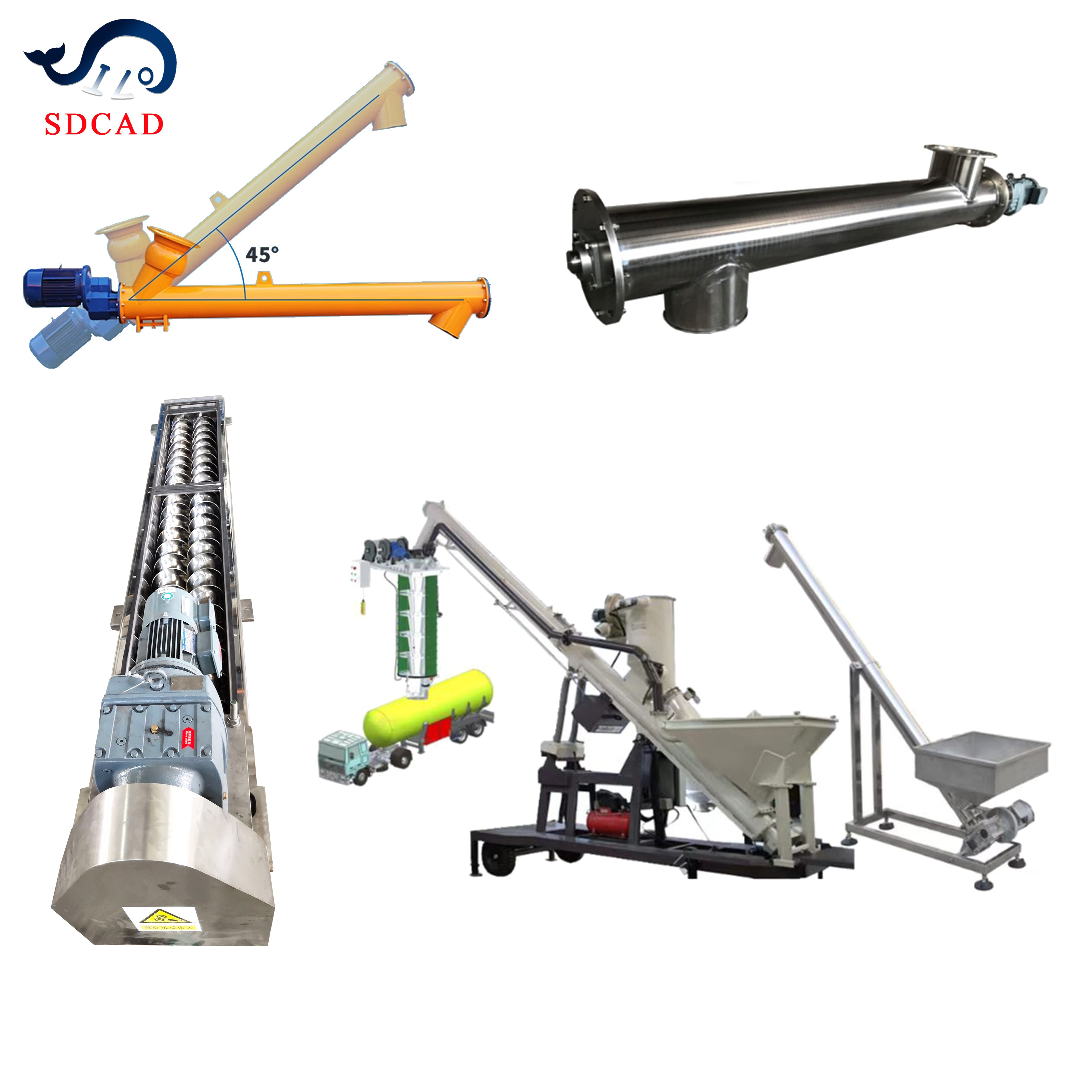

Horizontal Screw Conveyor,Inclined Screw Conveyor,Vertical Screw Conveyor, Shaftless Screw Conveyor

Horizontal Screw Conveyor

Inclined Screw Conveyor

Shaftless Screw Conveyor

PRODUCT SPECIFICATIONS

Diameter	Convey Capacity
Diameter		0 degree	45 degrees
114mm	6.5T/h	6T/h
168mm	25T/h	20T/h
219mm	70T/h	55T/h
273mm	100T/h	75T/h
323mm	125T/h	95T/h
406mm	160T/h	120T/h

Different styles of screw conveyor customazied

To choose the suitable model, please tell us

* Name and feature of the raw material?

* Conveying lengths?
* Handling capacity: kg /h, L/h?
* The Inclined angle you want?

Build Solutions for you

* Design the equipment according to your request. * Providing solutions according to the real situation. * Relevant technical documents would be available. * Delivery on time.Warranty: 12 months

Tube Screw Conveyor

U Screw Conveyor

Without-Shaft Screw Conveyor

Multi-Shaft Screw Conveyor

Screw Conveyor with Hopper

Vertical Screw Conveyor

Customized Screw Conveyor

Precise metering spiral

Stainless Steel Screw Conveyor

PRODUCT CONFIGURATION

Our product Advantages

1.Ideal for conveying dry to semi-fluid bulk materials – free flowing to sluggish; 2.Cost-effective when compared to other conveying devices such as belt, pneumatic or aeromechanical; 3.Efficiently distributes bulk materials to various locations using multiple inlet and discharge points; 4.Totally enclosed for dusty, corrosive or hazardous environments; 5. The structure is simple, compact, low cost in production, easy maintenance and low in cost; 6.Because it is made of seamless pipe, the sealing effect is good, so it is suitable for easy flying, hot materials, toxic and odorous materials; 7. It has stirring, mixing and cooling operations

Product Show

Product Line

Packaging and Transportation

Pre-Sales Service

Customer consultant 24 hour online；
Engineer team provide design drawing；
Skilled staff responsible for production；
Take pictures for all Production process。
