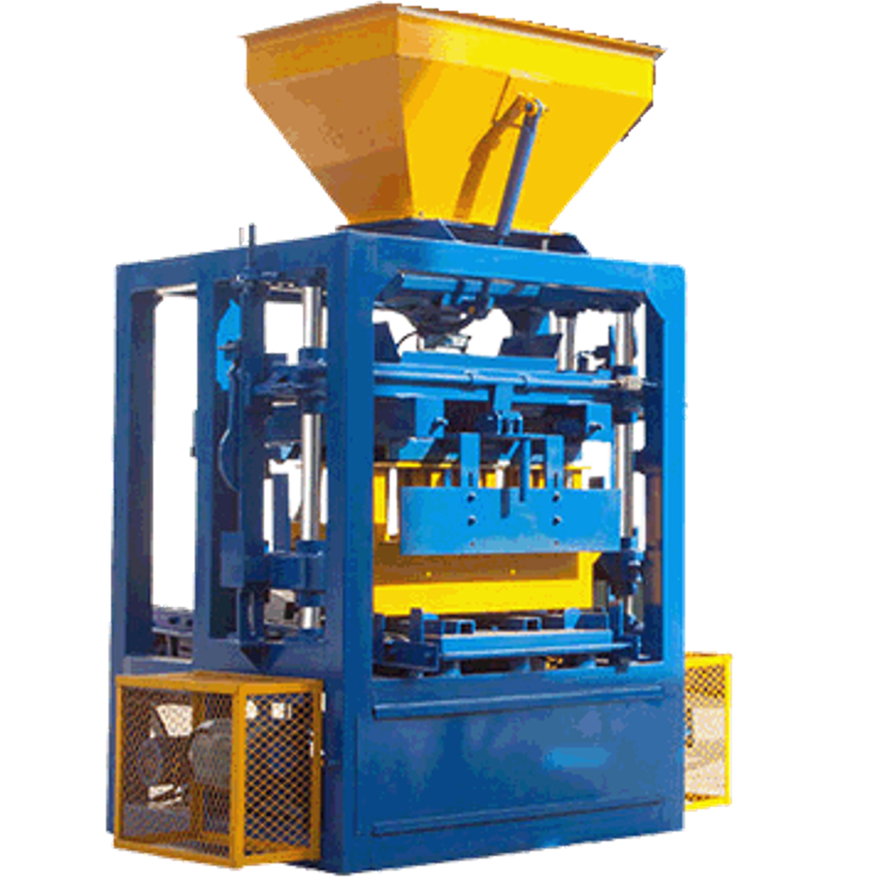

QT4-24 Ecological Concrete Brick Making Machine / Cement Block Molds for Sale in Philippines

QT4-24 Ecological Concrete Brick Making Machine / Cement Block Molds for Sale in Philippines

FOB Reference Price: Get Latest Price

≥1 Sets

US $1500

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brick size:: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm

Place of Origin:: Henan, China

Brand Name:: Shengmao

Dimension(L*W*H):: 2530*1570*2580 mm

Weight (KG):: 1890 kg

After Warranty Service:: Video technical support

Quick Details

Type:: Hollow Block Making Machine, Paving Block Making Machine, Interlock Block Making Machine, Curbstone Block Machine, Other

Brick Raw Material:: Sand

Production Capacity (Pieces/8 hours):: Other, 4480 pcs/8hours, 2500 pcs/8hours, 3400 pcs/8hours, 1920 pcs/8hours, 5760 pcs/8hours, 1500 pcs/8hours, 1280 pcs/8hours, 3000 pcs/8hours, 12000 pcs/8hours, 3200 pcs/8hours, 2560 pcs/8hours, 1000 pcs/8hours, 800 pcs/8hours, 6,720 pcs/day

Brick size:: 400*100*200 mm, 400*120*200 mm, 200*100*60 mm, 300*150*100 mm, 400*150*200 mm, 240*115*90 mm, 200*200*60 mm, 150*150*100 mm, 400*200*200 mm, 230*220*115 mm

Place of Origin:: Henan, China

Brand Name:: Shengmao

Dimension(L*W*H):: 2530*1570*2580 mm

Weight (KG):: 1890 kg

After Warranty Service:: Video technical support

Product Description

QT4-24 its material transferring automatic and feeding fast. It’s automatic design help to reducing the labor intensity and increasing the capacity to a lager extent. This machine with many advantages:
1. Double column, double pressure block molding machine, is massively absorb foreign counterparts and domestic advanced mechanical technology block molding machine of have a little, in the country to the popularization and application of the new wall materials and the research and development of a semi-automatic type products;
2. The machine uses low mode directional vertical vibration and on pressure vibration mode combination, is shaped products and fast, high density and strength uniform;
3. This machine design is reasonable, electric push the mold, material feeding automatic, the operation is simple, energy, a brick faster, compared QT4-24 block molding machine can save artificial 1-2 people, labor intensity is low;
4. It produces various blocks with different molds.

Detailed Picture and Specification

Item	Technical Parameters
Shaping Cycle	24-30 s
Vibration Frequency	4000 r/min
Upper Vibrator	2.2 kw
Nether Vibrator	6 kw
Overall Size	253015702580 mm (LWH)

Item	JD350 Mixer
Shaping Cycle	5 mins
Volume	350L (25 Kg Cement)
Total Weight	330 kg
Overall Size	120012001300 mm (LWH)

Item	Technical Parameters
Conveyor Belt	6 m
Belt Width	0.5 m
Belt Length	6 m/2.2 kw
Belt Speed	2 m/s

Our Projects

After-sales Service

After-sales Service

1. Provide relevant certificates, customs clearance documents, operation and maintenance instructions, installation videos etc.
2. Dispatch after-sales engineers to install and commission equipment abroad, and provide free training for operators and maintenance personnel for operation and maintenance;

3. Establish a complete customer profile, regular inspections, regular visits, free maintenance services and technical improvements;
4. Equipped with a spare parts warehouse, you can guarantee the fast supply of all accessories. During the warranty period, the parts required for equipment damage will be borne by the company, the customer does not have to pay any fees.
