Quick Details
-
Warranty:
-
1year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CCN
-
Size:
-
standard size
-
Car Model:
-
for BMW E36
-
Engine Code:
-
M50/ M52/ M54/ S50/ S52 Engine
-
Turbine A/R::
-
0.63
-
Compressor A/R::
-
0.5
-
Turbine Inducer::
-
64.8
-
Compressor Inducer::
-
52.7
-
Intercooler::
-
27'' x 7'' x 2.5'' inch, Inlet size: 2.5 inch
-
This universal kit adjusttable psi::
-
7.5-14.5 PSI
-
Horse Power::
-
Capable of Boosting Horse Power up to 500HP
-
Turbo Cooling Type::
-
Oil Cooled
-
Exhaust Inlet Turbo:
-
T3/T4 Flange
-
Certification:
-
CE ISO IAF CNAS
Quick Details
-
OE NO.:
-
GGTT3_MFE36-8PCS
-
Condition:
-
New
-
Reference NO.:
-
BV39A-0023, KP390055, KP390053, KP390059, BV39A-0060, KP390012, 5439-971-0055, KP390050, 5439-971-0053, BV39A-0024, 701470-0004, 701470-0003, KP390019, KP390016, KP39-0001, KP390047, 721021-0003, 5439-971-0047, 720855, KP39-0017
-
Warranty:
-
1year
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
CCN
-
Size:
-
standard size
-
Car Model:
-
for BMW E36
-
Engine Code:
-
M50/ M52/ M54/ S50/ S52 Engine
-
Turbine A/R::
-
0.63
-
Compressor A/R::
-
0.5
-
Turbine Inducer::
-
64.8
-
Compressor Inducer::
-
52.7
-
Intercooler::
-
27'' x 7'' x 2.5'' inch, Inlet size: 2.5 inch
-
This universal kit adjusttable psi::
-
7.5-14.5 PSI
-
Horse Power::
-
Capable of Boosting Horse Power up to 500HP
-
Turbo Cooling Type::
-
Oil Cooled
-
Exhaust Inlet Turbo:
-
T3/T4 Flange
-
Certification:
-
CE ISO IAF CNAS
Products Description

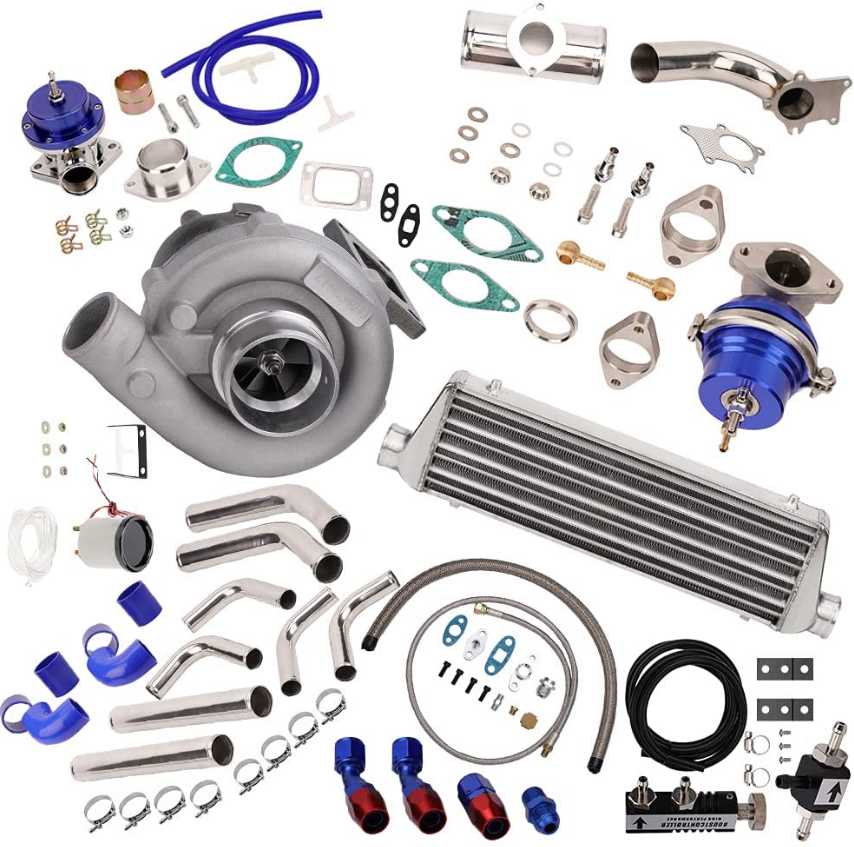

Universal T3 T4 T04E Complete Turbo Charger Turbocharger & Parts Kit For BMW E36 92-99 with Manifold
|
Compatible
|
For BMW E36 328I / 328IS i6 1994-1999
For BMW E36 323I i6 1995-1999 For BMW E36 M3 i6 1992-1999 For BMW E46 323I / 323IS / 323CI / 323TI i6 1997-2000 For BMW E46 328I / 328CI i6 1998-2000 For BMW E46 325I / 325CI / 325XI / 325TI i6 2001-2007 For BMW E46 330I / 330CI / 330XI i6 2000-2007 (Fits M50/ M52/ M54/ S50/ S52 Engine ) Please Check Compatibilities for Years and Models |
|
|
T04E Turbocharger
|
|
|
|
* Exhaust (Turbo Manifold) Flange: Standard T3/ T4 4-Bolt
* Exhaust (Downpipe) Flange: Standard 2.50" Inner Diameter V-Band * Intake Inlet/ Outlet: 3.00"/ 2.00" Compressor * Trim: 44 * Inducer Diameter:50.5 mm * Exducer Diameter:76 mm * A/R:0.5 Turbine * Trim:73 * Inducer Diameter:65.5 mm * Exducer Diameter:55.9 mm * A/R:0.63 |
|
|
|
T3 Flange Manifold
|
|
|
|
* For BMW E36 328I / 328IS i6 1994-1999
* For BMW E36 323I i6 1995-1999 * For BMW E36 M3 i6 1992-1999 * For BMW E46 323I / 323IS / 323CI / 323TI i6 1997-2000 * For BMW E46 328I / 328CI i6 1998-2000 * For BMW E46 325I / 325CI / 325XI / 325TI i6 2001-2007 * For BMW E46 330I / 330CI / 330XI i6 2000-2007 * (Fits M50/ M52/ M54/ S50/ S52 Engine ) Please Check Compatibilities for Years and Models |
|
|
|
2.5" Flange Pipe
|
|
|
|
* Fits TYPE-S or TYPE-RS Dump Pipe Flange
* Construction Prevents Warping Due to High Heat * Made of High Quality T-6061 Aluminum, Lightweight Design * 2.50" Pipe Size * 2.5" Inlet / Outle * 5.5" Length |
|
|
|
T-6061 Aluminum Blow Off Valve
|
|
|
|
* Billet Aluminum Body
* 8 Discharge Ports That Draw In Surrounding Air and Release a Unique Discharge Sound * 40mm, Hard-Anodized Valve for Increased Airflow * Dual Spring System Promoted Response and Allows for High Boost Pressures * Holds Up to 30 PSI Boost Pressure * Aggressive for JDM Racing Discharge Sound * 2 Bolt Mounting Design |
|
|
|
2.5" Aluminum Universal Intercooler Pipe
|
|
|
|
* 100% Brand New
* 100% Quality assurance tested * Made out of high quality of 6061 aluminum Manual polishing finished |
|
|
|
2.5" Universal Intercooler
|
|
|
|
* Inlet / outlet size : 2.5"
* Core size : 21''x 7''x 2.5'' * Full size: 27.00" (L) X 7.00" (H) X 2.50"(W) * Compress Air Flow Rate<350Cubic Feet/Min, Rated up to500 Max HP * Pressure drop: 2~5psiat35psi, 0.2~0.5psiat15psi * Material: Aluminum alloy * Core design: Tube & Fin |
|
|
|
Universal T3/T4 T04E Oil Feed + Return Drain Line
|
|
|
|
* Oil return line length: 550mm
* Oil return line inner diameter: ¢21 * Oil feed line length: 1000mm * Oil feed line inner diameter: ¢14 * Hose end fitting: 10 AN* Material: High Strength Steel with Aluminum Material |
|
|
|
Turbo Boost Controller
|
|
|
|
* Allows adjustable boost psi settings, light weight design to be mount under the hood. * Hardware is included
* Adjustable boost knob increases horsepower and torque, depends on boost level. * Universal fitment and great for all Turbo applications * CNC Machined Aluminum Body * 1-30 PSI Adjustable |
|
|
Our Advantages:
1.
Covers more than 900 turbocharged part numbers
2.Japanese technology, Chinese factory price
2. Factory price,Let you have enough profit
4. Turbocharger In stock,quick delivery
5. Professional Perfomance Auto parts supplier.20 years of experience in auto parts technology, focus on professionalism worthy of your trust
Quality Assurance Factory Price High Quality， Turbocharger For Different kinds of car models，
welcome to contact us for further information，Help you save time to find the product you need
Details Images
We have more detailed pictures of products, if you need to know, you can initiate an inquiry, contact us and send it to you
