Quick Details
-
Table Travel (Y) (mm):
-
900
-
Dimension(L*W*H):
-
450*3545*3200mm
-
Weight (T):
-
14 T
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.0075
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
18.5
-
Max. Table Load(kg):
-
1500 kg
-
Feed Speed(mm/min):
-
1 - 5000 mm/min
-
Rapid Feed Speed(m/min):
-
15/15/12
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
220V/380V/400
-
Marketing Type:
-
Hot Product 2022
-
Warranty of core components:
-
13 months
-
Product name:
-
VMC1690 VMC1890 heavy duty cnc milling machine
-
Spindle speed:
-
8000rpm
-
Control system:
-
KND FANUC SIEMENS (optional)
-
Processing:
-
Metal Cutting Cnc Milling Machine
-
Table size:
-
1800*900mm
-
X/Y/Z axis travel:
-
1600X900X700mm
-
Spindle taper:
-
BT50
-
Tool magazine capacity:
-
arm:24
-
X/Y/Z max. feed speed:
-
5000mm/min
-
Keywords:
-
Vmc Machine Center
Quick Details
-
Table Size (mm):
-
1800X900
-
Number of Axes:
-
3, 4, 5
-
Table Travel (X) (mm):
-
1600
-
Table Travel (Y) (mm):
-
900
-
Dimension(L*W*H):
-
450*3545*3200mm
-
Weight (T):
-
14 T
-
Positioning Accuracy (mm):
-
0.01
-
Repeatability (X/Y/Z) (mm):
-
0.0075
-
Range of Spindle Speed(r.p.m):
-
1 - 8000 r.p.m
-
Spindle Motor Power(kW):
-
18.5
-
Max. Table Load(kg):
-
1500 kg
-
Feed Speed(mm/min):
-
1 - 5000 mm/min
-
Rapid Feed Speed(m/min):
-
15/15/12
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
SGSK
-
Voltage:
-
220V/380V/400
-
Marketing Type:
-
Hot Product 2022
-
Warranty of core components:
-
13 months
-
Product name:
-
VMC1690 VMC1890 heavy duty cnc milling machine
-
Spindle speed:
-
8000rpm
-
Control system:
-
KND FANUC SIEMENS (optional)
-
Processing:
-
Metal Cutting Cnc Milling Machine
-
Table size:
-
1800*900mm
-
X/Y/Z axis travel:
-
1600X900X700mm
-
Spindle taper:
-
BT50
-
Tool magazine capacity:
-
arm:24
-
X/Y/Z max. feed speed:
-
5000mm/min
-
Keywords:
-
Vmc Machine Center

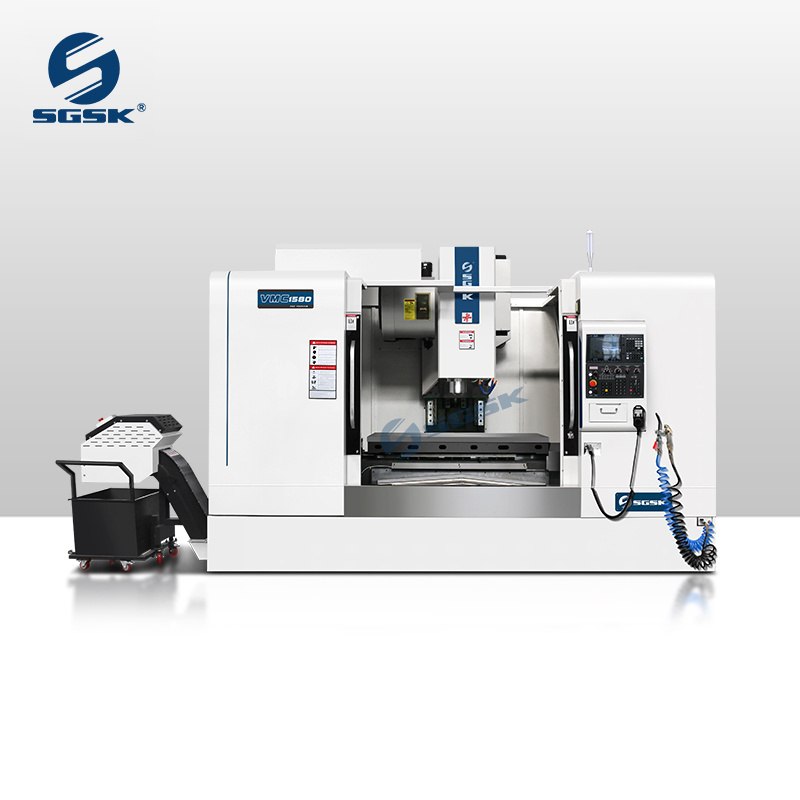

Vertical machining center centro mecanizado cnc VMC1690 VMC1890 heavy duty cnc milling machine
Products Description
Details Images
Product Paramenters
Features:
High quality resin sand
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Taiwan spindle
Taiwan ball screw and locking nut
Taiwan pressure cylinder
Automatic lubrication system
Chip conveyor at optional
Application:
This VMC is suitable for mechanical processing and mold making .And it can asapt to the processing requirement from rough machining to finish machining .It can also finish many working procedures like milling ,drilling ,tapping ,boring ,etc.
Product main technical specifications:
|
Specifications
|
Units
|
VMC1690
|
VMC1890
|
|
Table size
|
mm
|
1800x900
|
2000x900
|
|
X axis travel
|
mm
|
1600
|
1800
|
|
Y axis travel
|
mm
|
900
|
900
|
|
Z axis travel
|
mm
|
700
|
800
|
|
Max. worktable load
|
kg
|
1500
|
1600
|
|
T slot(number-width-pitch)
|
|
5-22x165
|
5-22x165
|
|
Max. spindle speed
|
rpm
|
6000(Optional:8000)
|
6000(Optional:8000)
|
|
Spindle taper
|
mm
|
BT50
|
BT50
|
|
Main motor power
|
kw
|
18.5/22
|
22/26
|
|
X/Y/Z rapid traverse speed
|
m/min
|
15/15/12
|
15/15/12
|
|
Cutting feed speed
|
mm/min
|
1-5000
|
1-5000
|
|
Guide rail type
|
|
Linear rail
|
Linear rail
|
|
Distance from spindle axis to column surface
|
mm
|
950
|
950
|
|
Distance between spindle nose and worktable surface
|
mm
|
170-800
|
160-900
|
|
Positioning accuracy
|
mm
|
±0.01
|
±0.01
|
|
Repeat positioning accuracy
|
mm
|
±0.0075
|
±0.0075
|
|
Tool magazine
|
|
Arm 24
|
Arm 24
|
|
Max. tool diameter
|
mm
|
φ112 (Adjacent)/ φ200(Apart)
|
φ112 (Adjacent)/ φ200(Apart)
|
|
Max.tool weight
|
kg
|
18
|
18
|
|
Machine weight
|
kg
|
14000
|
15000
|
|
Overall dimension
|
mm
|
4500x3350x3200
|
5100x3800x3200
|
