Quick Details
-
Air pressure::
-
0.5-0.8mpa
-
Overall dimension::
-
2100mm x 860mm x 1500mm
-
Air consumption::
-
80L/min
Quick Details
-
Place of Origin:
-
Shandong, China
-
voltage:
-
380V 50HZ 3P
-
power::
-
0.76kw
-
Air pressure::
-
0.5-0.8mpa
-
Overall dimension::
-
2100mm x 860mm x 1500mm
-
Air consumption::
-
80L/min

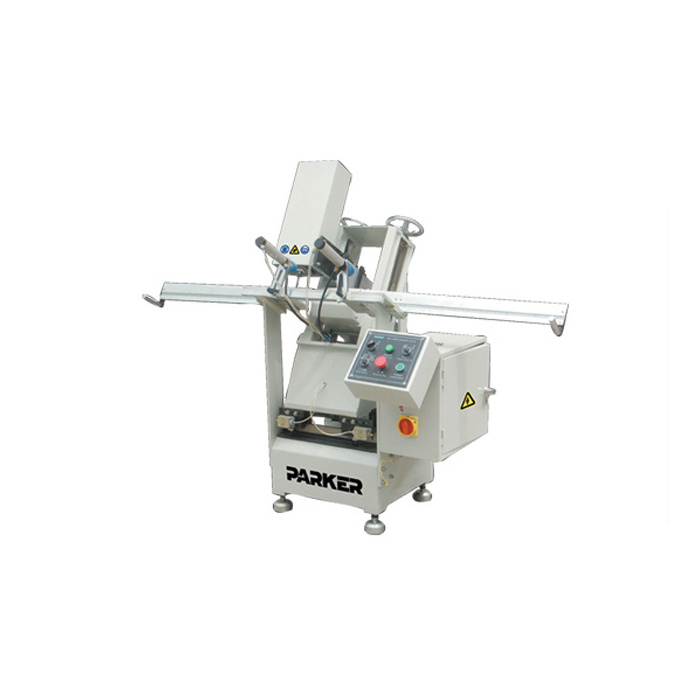

UPVC&PVC(Plastic) Profile Frame Window and Door Automatic Water Slot Routing Machine pvc profile hole drilling machine- vinyl profile drilling machine
SCX02-2X60
Parameter:
|
♦ Voltage: |
220V 50HZ |
|
♦ Total Power: |
0.76KW |
|
♦ Air pressure: |
0.5-0.8MPa |
|
♦ Air consumption: |
80L/min |
|
♦ Max. Milling depth: |
30mm |
|
♦ Milling length: |
60mm |
|
♦ Diameter of milling cutter: |
Φ5mm |
|
♦ Overall dimension: |
2100mm x 860mm x 1500mm |
|
♦ Weight: |
190KG |
Features:
♦ This machine mainly consists of machine heads, hand driven lift mechanism, profile-holding worktable, machine framework, and electric chest. The whole machine is normally equipped with two machine heads: right machine head, middle machine head.
♦ According to different requirements, we can select different allocations such as allocation of left machine head, allocation of middle machine head, low head machine and so on. All the working combination of every machine heads can be completed through the select switch on the electric chest.
♦ This machine uses module structure. During running, all the machine heads can single work, or selected interlock work, which is free to select, easy to control. It is mainly used for processing water slot on PVC profile.
