Quick Details
-
Power:
-
5kW/80V,12V
-
Table Size:
-
2.44m*0.90m
-
Overall Dimensions:
-
12.25*2.5*2.89m(Stowed)
-
Weight:
-
18900 kg
-
Marketing Type:
-
New Product
-
Product name:
-
Deisel Boom Lifts
-
Type:
-
Hydraulic Cylinder Drive
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
-
Application:
-
Widely
-
Material:
-
High-duty Steel Structure
-
Feature:
-
Easy Operation Safety Convenience
-
Capacity:
-
2000kg
-
Control:
-
Double Controller
-
Lifting system:
-
Hydraulic Lift Cylinders
-
Operation way:
-
Platform Operate
Quick Details
-
Warranty:
-
1 Year
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
China Brand
-
Power:
-
5kW/80V,12V
-
Table Size:
-
2.44m*0.90m
-
Overall Dimensions:
-
12.25*2.5*2.89m(Stowed)
-
Weight:
-
18900 kg
-
Marketing Type:
-
New Product
-
Product name:
-
Deisel Boom Lifts
-
Type:
-
Hydraulic Cylinder Drive
-
Keywords:
-
Hydraulic Vehicle-mounted Elevating Platform
-
Application:
-
Widely
-
Material:
-
High-duty Steel Structure
-
Feature:
-
Easy Operation Safety Convenience
-
Capacity:
-
2000kg
-
Control:
-
Double Controller
-
Lifting system:
-
Hydraulic Lift Cylinders
-
Operation way:
-
Platform Operate

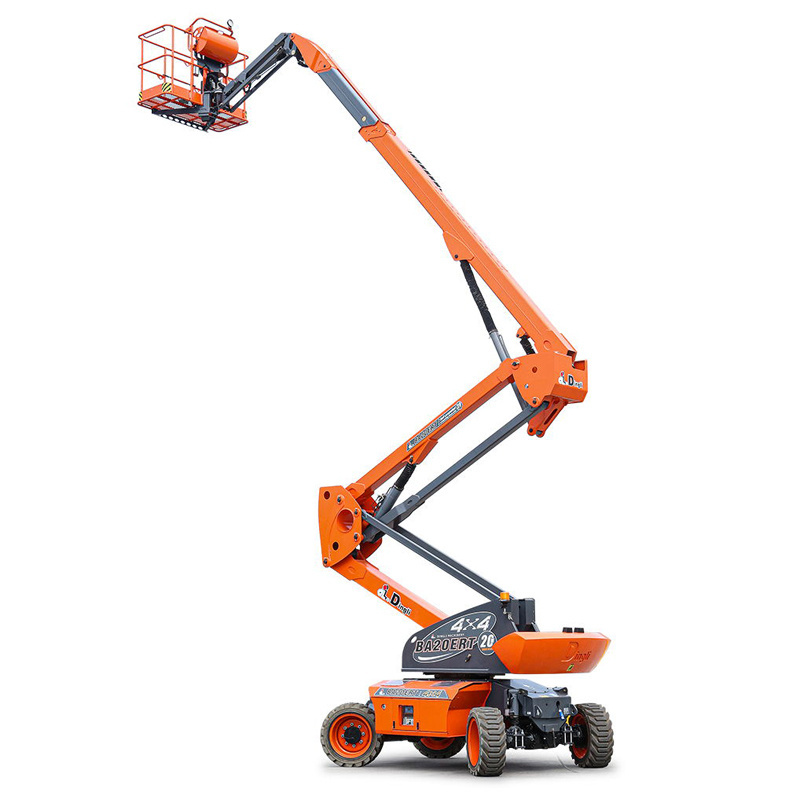

Top selling Best Boom Lift BT28RT Trailed Lift engine Mini Scissor Lift Platform
Welcome to MAXIZM Construction Machinery Co.,Ltd!
Home of value that works!
We provide you with the best quality of BULLDOZER, EXCAVATOR,COMPACTOR, FORKLIFT, MOTOR GRADER,WHEEL ROADER ,ETC.
Jerrica Liu
Phone Number:+86-18246243847
EMAIL:jerrica @ maxizm.com
WhatsApp/Wechat:+86-18246243847
Important Features
1. Using the axle integrated 4WD system,better off-road performance
2. Equipped with platform anti-extrusion device, start stop protection when extrusion occurs
3. The whole series of parts is universal, lower parts storage cost, more efficient maintenance
4. All the parts are at both sides of the chassis, making the maintenance more convenient
5. The center of gravity moves down, the stability of the whole machine is stronger
6. Container transport available
| Parameter | BT30RT | BT28RT | BT26SRT | BT26RT | BT24RT |
| Max.Working Height(m) | 30.30 | 28.60 | 26.70 | 26.32 | 24.80 |
| Max.Platform Height(m) | 28.3 | 26.60 | 24.70 | 24.32 | 22.80 |
| Max.Horizontal Reach(m) | 22.7 | 21.30 | 19.20 | 18.90 | 17.30 |
| Overall Length(Stowed)(m) | 12.25 | 11.66 | 10.83 | 10.82 | 10.25 |
| Overall Length(Transport)(m) | 11.96 | 11.82 | 11.12 | 10.77 | 10.81 |
| Overall Width(Stowed)(m) | 2.50 | ||||
| Overall Width(Transport)(m) | 2.28 | ||||
| Overall Height(Stowed)(m) | 2.89 | ||||
| Overall Height(Transport)(m) | 2.57 | ||||
| Platform Size(Length*Width)(m) | 2.44*0.90 | ||||
| Ground Clearance(m) | 0.41 | ||||
| Whellbase(m) | 2.80 | ||||
| S.W.L(Unrestricted)(kg) | 454 | ||||
| Max.Occupants | 3 | ||||
| Turntable Tailswing(m) | 1.61 | ||||
| Turning Radius(Inside/Outside)(m) | 1.87/3.22 | ||||
| Turret Rotary(°) | 360 | ||||
| Platform Rotation(°) | 180 | ||||
| Jib Movement(°) | 130 | 135 | 130 | 135 | 130 |
| Travel Speed(km/h) | Max.6.0 | ||||
| Travel Speed(km/h) | Max.1.1 | ||||
| Gradeability(%) | 45% | ||||
| Maximum Working Slpoe | X-5°/Y-5° | ||||
| Tyre | 385/45-28 | ||||
| Engine TD2.9 L4 | 55.4kw | ||||
| Fuel | Diesel | ||||
| Hydraulic Tank(L) | 150 | ||||
| Diesel Tank | 135 | ||||
| Weight(kg) | 18900 | 18400 | 16600 | 16090 | 14300 |
