Quick Details
-
Model Number:
-
LHD-450/13
-
Main Motor Power(KW):
-
280
-
Inlet dia.(mm):
-
8.0
-
Outlet dia.(mm):
-
1.2-4
-
Drawing drum dia.(mm):
-
450
-
Max drawing speed(m/s):
-
25
-
Annealing voltage(V):
-
0-65V(DC)
-
Annealing current(A):
-
0-6000A(DC)
-
Fix speed capstan motor power(KW):
-
75
-
Double take-up standard(mm):
-
PND500/560/630
-
Optional equipment:
-
Ring take up machine
Quick Details
-
Use:
-
Drawing
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
SOKA
-
Model Number:
-
LHD-450/13
-
Main Motor Power(KW):
-
280
-
Inlet dia.(mm):
-
8.0
-
Outlet dia.(mm):
-
1.2-4
-
Drawing drum dia.(mm):
-
450
-
Max drawing speed(m/s):
-
25
-
Annealing voltage(V):
-
0-65V(DC)
-
Annealing current(A):
-
0-6000A(DC)
-
Fix speed capstan motor power(KW):
-
75
-
Double take-up standard(mm):
-
PND500/560/630
-
Optional equipment:
-
Ring take up machine
electrical large hs code for cable stripping machine for sale
APPLICATION:
It is applied for the production of Wire and cable industry , Metal wire processing, Oil cable industry , Automobile brake line,Musical instruments etc.
MAIN CHARACTERISTICS:
1. Ironed cast .
2. Horizontal structure , dual driving motors , owning rapid die change system .
3. High precision gear transmission , high efficiency , low noise .
4. Fully immersed way to lubricate and cool , which can guarantee the quality
of drawing wire .
5. Annealing device is inclined, which is convenient for workers to cross wire.
Special designed air pipe to send air to the axis of annealing wheel.
Main technique parameter:
Model: JDT-450/13
Drawing Die:13
Inletwire Diameter (mm):8.0MM
Outletwire Diameter (mm):1.2 -4.0MM
Line Speed (m/s):25m/s
Highest Yield :1000kg/H
Capstan dia(Max):450mm
Farrowed ratio: ratio of transformation
Fix speed Motor: AC 75KW
Die rotating motor:31r/min 0.25KW
Gear: 20CrMnTi Gear grinding accuracy level 6
Material of the drum: hammering 40Cr covered by tungsten carbide
Bearing: NSK bearing
Gearbox lubricant heat exchanger :GLG - 6/1.0 6m2Tube type
G ear oil pump:70L/min, 5.5Kw
Slip ratio of m/c: 20%-25%
Lubricant type for bearing : Splash type
Type of cooling : Spray add 1/2 leaching
Quantity of dies for your choice:

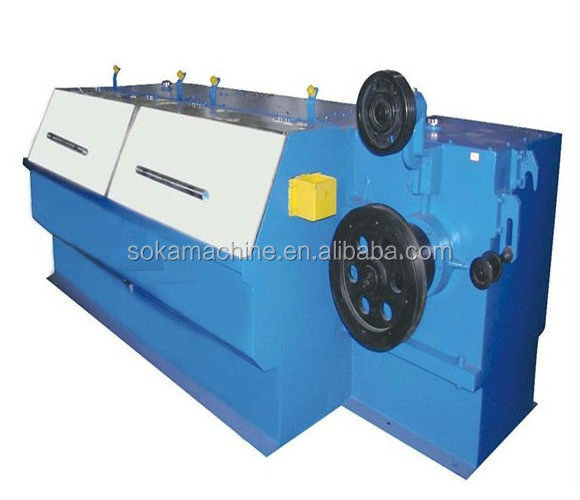

PICTURE DISPLAY:
Take-up machine for your choice:
Selective equipment:
