Quick Details
-
Power (kW):
-
5.5
-
Weight (KG):
-
30
-
model:
-
MP-2S
-
supply voltage:
-
220V 50HZ
-
Work disk diameter:
-
203mm
-
Working disc speed:
-
1000 rev / min
-
power:
-
550W
-
Number of grinding discs:
-
2
-
Grinding method:
-
semi-automatic
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
RSE
-
Core Components:
-
Other
-
Power (kW):
-
5.5
-
Weight (KG):
-
30
-
model:
-
MP-2S
-
supply voltage:
-
220V 50HZ
-
Work disk diameter:
-
203mm
-
Working disc speed:
-
1000 rev / min
-
power:
-
550W
-
Number of grinding discs:
-
2
-
Grinding method:
-
semi-automatic
PRODUCT DESCRIPTION
Brief description .

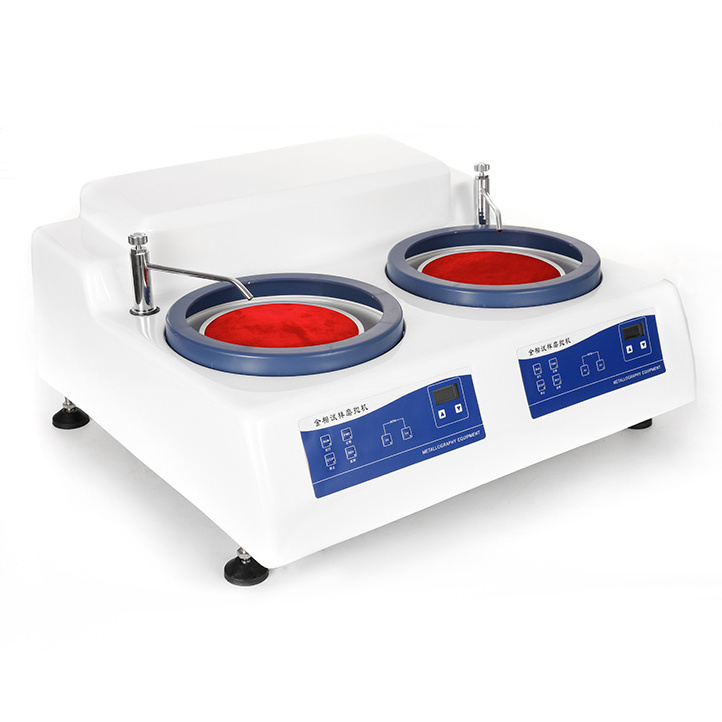

1.This grinding and polishing machine is a dual disc, dual motor, and dual control type, which can be operated by two people at the same time. The motor can be controlled separately by two side control boards, and is suitable for pre grinding, grinding, and polishing operations on metallographic specimens.
2.This machine can achieve a speed range of 50-100 0 revolutions per minute through stepless speed regulation and four speed settings, and can also quickly set gears of 250/500/750/1000 revolutions per minute, making it more widely applicable. It is an essential equipment for users to make metallographic specimens.
It is an essential equipment for users to make metallographic specimens.
3.
This machine is equipped with a cooling device that can cool the sample during pre grinding to prevent damage to the metallographic structure due to overheating of the sample. This machine is easy to use and reliable, making it an ideal sample preparation equipment for factories, research institutions, and laboratories in colleges and universities.
SPECIFICATION
|
Name
|
Manual grinding polishing machine
|
|
|
|
|||
|
model
|
MP-2S
|
|
|
|
|||
|
power supply
|
AC220V,50HZ
|
|
|
|
|||
|
Grinding disc speed
|
50-1000 rev / min
|
|
|
|
|||
|
Work disk diameter
|
Standard φ 203mm ( Optional φ 200mm,φ 230mm , φ 250mm )
|
|
|
|
|||
|
Grinding method
|
Manual
|
|
|
|
|||
|
Number of grinding discs
|
2
|
|
|
|
|||
|
Dimensions
|
710 x 670 x 300mm
|
|
|
|
|||
|
weight
|
50KG
|
|
|
|
|||
|
power
|
550W
|
|
|
|
|||
|
cooling system
|
✔
|
|
|
|
|||
|
Standard configuration
|
Metallographic sandpaper 6 sheets
|
|
|
|
|||
|
|
Alumina polishing powder 100g
|
|
|
|
|||
|
|
drain-pipe
|
|
|
|
|||
|
|
Water inlet pipe
|
|
|
|
|||
|
|
2 aluminum alloy discs
|
|
|
|
|||
|
|
2 polishing cloths
|
|
|
|
|||
FAQ
Q. Are you a manufacturer or a trading company?
A. We are professional laboratory instrument manufacturers, have their own design team and factory, have mature technical experience, and can guarantee the quality of products and the optimal price.
Q. Our country's power supply and plug are different. How do you solve it?
A. We can supply a transformer and plug according to your local requirements according to the power plug of different countries.
Q. How long is your delivery time? If I want to customize the instrument, how long does it take?
A.1. lf the goods are in stock, it is 5-10 days. 2. We can provide customized services for our customers. It usually takes 30-60 days depending on the specifications of the custom instrument.
Q. How to pay?
A.T/T, LIC, D/P, etc., it is recommended to use Alibaba Trade Guarantee.
Q.How is the package of goods? Delivery methods?
A.1. Standard export fumigation sign wooden box packaging
2. Express, air, sea shipping according to customer requirements, find the most suitable way.also accept LC at sight.
