Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyway
-
Model Number:
-
HWD606
-
Torque:
-
High Torque
-
Name:
-
Linear Actuator
-
Model:
-
HWD606
-
Input Voltage:
-
12V or 24V DC
-
Load Capacity:
-
750N, 1500N, 4000N, 6000N
-
Free Load Speed:
-
30mm/s, 18mm/s, 8mm/s, 4mm/s
-
Standard Stroke:
-
50 mm --- 1000mm (Optional)
-
Installation Dimension:
-
S + 175mm
-
Protection Grade::
-
IP43, IP54, IP65
-
Type of duty::
-
S2-10min
-
Operation Temperature:
-
-26 to 65 centigrade
-
Certification:
-
ce, RoHS, Recliner Bed Linear Actuator
Quick Details
-
Speed(RPM):
-
High Speed
-
Continuous Current(A):
-
Current
-
Efficiency:
-
TBD
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Hyway
-
Model Number:
-
HWD606
-
Torque:
-
High Torque
-
Name:
-
Linear Actuator
-
Model:
-
HWD606
-
Input Voltage:
-
12V or 24V DC
-
Load Capacity:
-
750N, 1500N, 4000N, 6000N
-
Free Load Speed:
-
30mm/s, 18mm/s, 8mm/s, 4mm/s
-
Standard Stroke:
-
50 mm --- 1000mm (Optional)
-
Installation Dimension:
-
S + 175mm
-
Protection Grade::
-
IP43, IP54, IP65
-
Type of duty::
-
S2-10min
-
Operation Temperature:
-
-26 to 65 centigrade
-
Certification:
-
ce, RoHS, Recliner Bed Linear Actuator
rack and pinion 12 volt 12v 500n dewert linear actuator

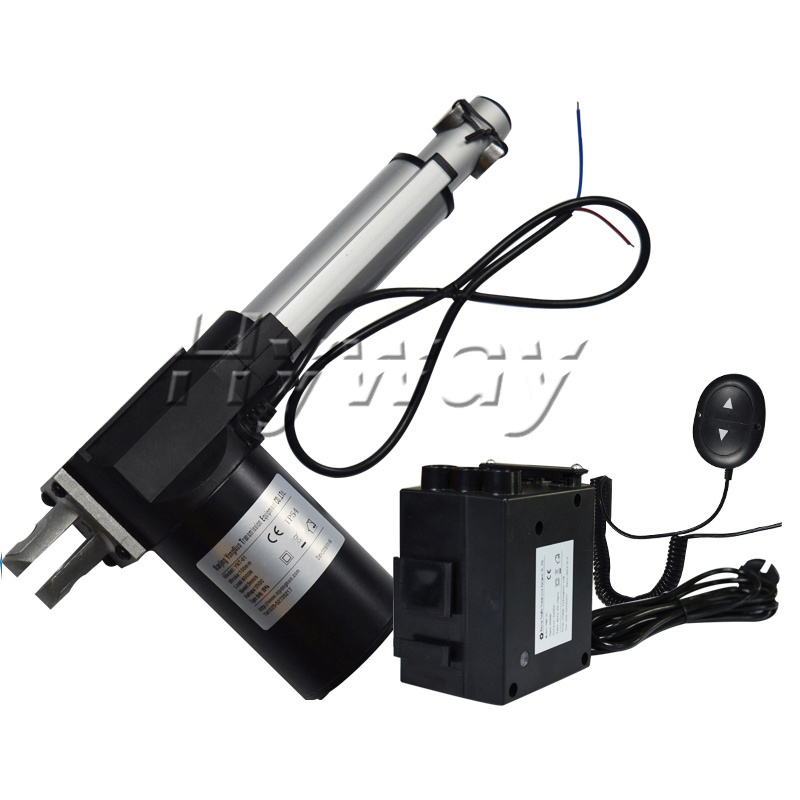

The HWD606 linear actuators are widely used in electric sofas, massage chairs, dental chairs, electric medical beds, traction bed, television movements counters, electric push rod, furniture push rod, linear drive, medical push rod, special push rod for elderly chair, flat cart, furniture and other movements
|
Name: |
Industrial Linear Actuator |
|
Model: |
HWD606 |
|
Usage: |
Sofa, Bed, Chair,Electric Bed, Electric Sofa,Massage Chair, Dental Chair, other Industrial use |
|
Input Voltage: |
12v or24V DC |
|
Load Capacity: |
750N/1500N/4000N/6 000N /8000N |
|
Free Load Speed: |
4-30 mm/s |
|
Standard Stroke: |
more than 50mm and customized |
|
Installation Dimension: |
S+175mm |
|
Type of Duty: |
S2 -- 10 min (2 minutes work, 18 minutes rest) |
|
Limit Switch: |
Builtin / Inner (can not be adjust after left factory) |
|
Work Temp.: |
-26 to 65 centigrade |
|
Material aluminium |
Stainless Steel + Plastic |
|
Gross Weight |
2kg |
|
Noise |
< 48db |
|
Protection Grade: |
IP 45-67 |
|
Color |
Black or Gray |
|
Certificate: |
CE, RoHS |
|
Delivery time |
3~7 days for samples |
