pump solar 1hp dc solar submersible pump set

pump solar 1hp dc solar submersible pump set

FOB Reference Price: Get Latest Price

≥2 Pieces

US $253

≥50 Pieces

US $245

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Warranty:: 2 years, 2 Years

Brand Name:: DIFFUL

Model Number:: 4DPC13-60-110-1500

Place of Origin:: Zhejiang, China

Horsepower:: 1500W

Power Source:: solar

Structure:: Centrifugal Pump

Cable Length:: 2m cable

Outlet Size:: 2inch

Power:: 2hp

Usage:: Water

Motor:: 100% Copper Wire

Size:: 4 Inch

Outlet:: 2''inch

Feature:: High Efficiency

Fuel:: solar pump

Product name:: 4inch submersible solar pump

Quick Details

Application:: Irrigation and Agriculture

Pressure:: low pressure, High Pressure

Voltage:: 110V

Warranty:: 2 years, 2 Years

Brand Name:: DIFFUL

Model Number:: 4DPC13-60-110-1500

Place of Origin:: Zhejiang, China

Horsepower:: 1500W

Power Source:: solar

Structure:: Centrifugal Pump

Cable Length:: 2m cable

Outlet Size:: 2inch

Power:: 2hp

Usage:: Water

Motor:: 100% Copper Wire

Size:: 4 Inch

Outlet:: 2''inch

Feature:: High Efficiency

Fuel:: solar pump

Product name:: 4inch submersible solar pump

Products Description

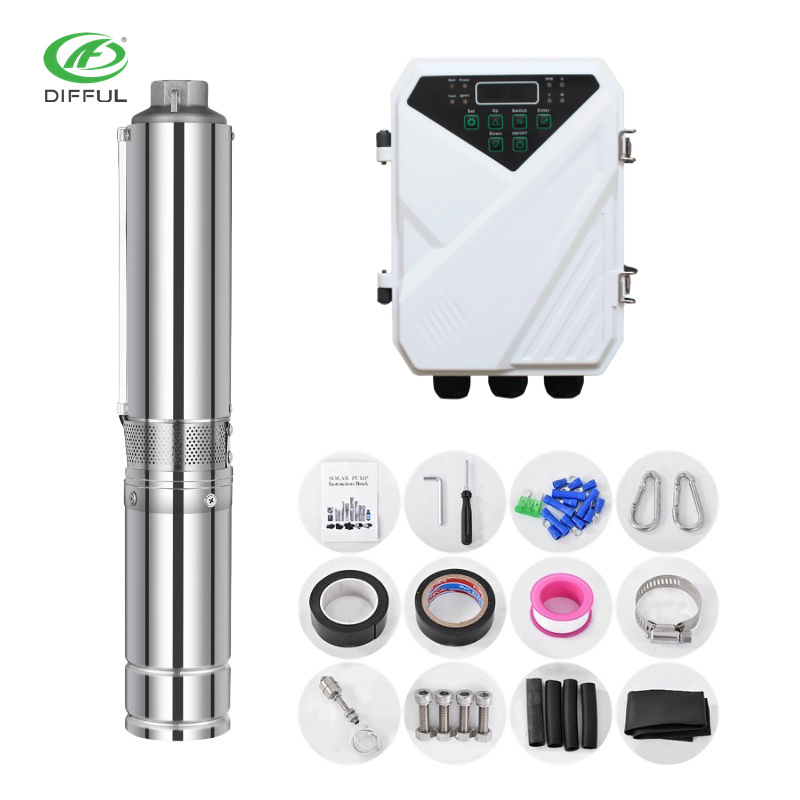

pump solar 1hp dc solar submersible pump

Advantage of DC solar pump

1. DC Brushless Permanent-magnetic synchronous motor for solar power dc submersible water pump to get high speed and high efficiency.

2.304 S/S pump shaft; Alloy mechanical seal.

3. Motor coil is made by automatic winding machine with centralized winding technology, motor efficiency is much improved.

4. Intelligent water shortage protection : the pump stops working automatically when there is no water in the well, and automatically start working 30 minutes later.

5. Controller : MPPT function ; frequency conversion function; Automatically working function; water proof and leak-proof.

Application

1.Irrigation in horticulture & agriculture

2.Livestock watering
3.Gardens or fountains

4 .Domestic water supply
5.Pond management
6.Small scale service industries

Product Parameters

pump solar 1hp dc solar submersible pump

Model	4DPC13-60-110-1500
Max flow	13m ³ /h
Max head	60m
Voltage	110V
Power	1500W
Outlet	2inch

Model	Voltage	Power	Max. Flow	Max.Head	Outlet
4DPC6-42-48-600	48V	300W	6m ³ /h	42m	1.25"
4DPC6-42-72-600	72V	400W	6m ³ /h	42m	1.25"
4DPC6-56-48-750	48V	600W	6m ³ /h	56m	1.25"
4DPC6-56-72-750	72V	600W	6m ³ /h	56m	1.25"
4DPC6-84-72-1100	72V	750W	6m ³ /h	84m	1.25"
4DPC6-84-110-1100	110V	750W	6m ³ /h	84m	1.25"
4DPC6-112-110-1300	110V	1100W	6m ³ /h	112m	1.25"
4DPC6-135-110-1500	110V	1100W	6m ³ /h	135m	1.25"
4DPC9-45-110-750	110V	1300W	9m ³ /h	45m	2"
4DPC9-58-110-1300	110V	1500W	9m ³ /h	58m	2"
4DPC9-71-110-1500	110V	1500W	9m ³ /h	71m	2"
4DPC11.5-30-72-750	72V	750W	11.5m ³ /h	30m	2"
4DPC11.5-49-110-1100	110V	1100W	11.5m ³ /h	49m	2"
4DPC11.5-55-110-1300	110V	1300W	11.5m ³ /h	55m	2"
4DPC13-60-110-1500	110V	1500W	13m ³ /h	60m	2"

How to choose pump

How to choose the correct solar water pump?

HEAD CALCULATE:

1.Distance of ' B+C+D/10' if have a water tank

2.Distance of 'B' if without water tank.

FLOW CALCULATE:

How much water per hour or per day do you want?

Selecting the solar pump model that meets your requirements against the pump model number table.

How to connect

Product packaging

pump solar 1hp dc solar submersible pump

Customer reviews

Namibian customers

We are very happy to be able to use such a good product.We are a water shortage here, I hope he can bring convenience to me in the future.

Kenyan customer

With solar pumps, it's more convenient for us to raise sheep. We also use them to irrigate the land. It's a practical invention.

Senegal customers

Usually we get water very difficult here, but now there are solar pumps. Everything has become very simple, I hope to drink water every day.

About us

pump solar 1hp dc solar submersible pump

DIFFUL

As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china , we believe one day difful pump will exist in every corner of the world by means of its reliable quality and good reputation.
By the way, DIFFUL sincerely welcomes all the friend to visit our company and hopes to have a good communication and double-win partnership with all of you cause Difful pump is always on the way to be better! Your views are the driving forces of DIFFUL! I hereby on behalf of all the members of Difful, thank all of you for the long-term supporting and concerning of our growth.

FAQ

1. Q:What's your MOQ?
A:Trial sample order is OK.
2. What's your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A: Yes, welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
