Product Drawing
we can customize the product according to your request
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
YBQ132-15-108
-
Frequency:
-
102HZ
-
Product Name:
-
Electric Car Motor
-
Application:
-
Electric Car Vehicle
-
Speed:
-
3000rpm
-
Rated Power:
-
13.5kw
Quick Details
-
AC Voltage:
-
108v
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
super motor
-
Model Number:
-
YBQ132-15-108
-
Frequency:
-
102HZ
-
Product Name:
-
Electric Car Motor
-
Application:
-
Electric Car Vehicle
-
Speed:
-
3000rpm
-
Rated Power:
-
13.5kw
Super Motor
Product Description

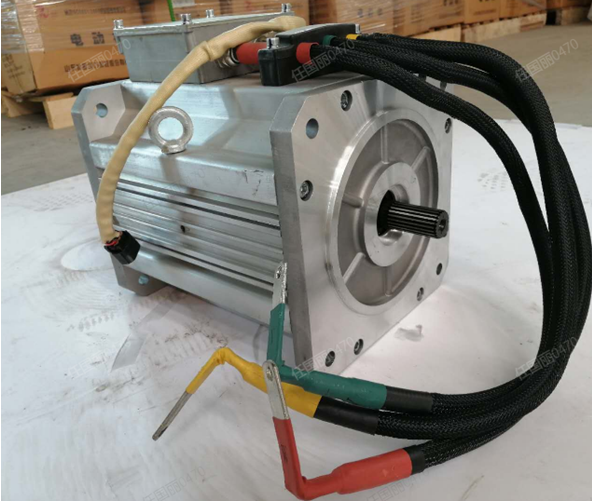

13.5kw 108v AC three phase motor for conversion car
|
Coutinuous Power
|
13.5KW
|
Peak Current
|
6600r/min
|
|
Rated current
|
147A
|
Protection Grade
|
IP66
|
|
Rated Voltage
|
108V
|
Insulation Grade
|
H
|
|
Rated Torque
|
35.8N.M
|
Character of Service
|
S9
|
|
Peak Torque
|
140N.M
|
Number of Phases
|
Three Phase
|
Applicable model
Condition
:
Body weight: 1053kg
Full load weight: 1350kg
Length: 3996 mm
Width: 1553 mm
Height: 1650 mm
Distance between two axles: 2600mm
Distance from ground: 140mm
Drive: The front drive
Tire diameter: 15inches (175/65, R 14)
Ratio: 6.7(Recommended)
Vehicle requirements :
Speed range: 80~100km/h
Motor torque for flat road operation: 6.9N.m
Required torque for climbing: 123.8N.m
Climbing slope: 20 degree
Calculation result . Full load maximum speed requirement: 90km/h:
Body weight: 1053kg
Full load weight: 1350kg
Length: 3996 mm
Width: 1553 mm
Height: 1650 mm
Distance between two axles: 2600mm
Distance from ground: 140mm
Drive: The front drive
Tire diameter: 15inches (175/65, R 14)
Ratio: 6.7(Recommended)
Vehicle requirements :
Speed range: 80~100km/h
Motor torque for flat road operation: 6.9N.m
Required torque for climbing: 123.8N.m
Climbing slope: 20 degree
Calculation result . Full load maximum speed requirement: 90km/h:
Calculation conclusion
: When our 13.5kw108V AC asynchronous motor is used，on the transmission ratio of 8, the vehicle will get the
maximum running speed of at least 90km/h .When the gradient percentage is 11.4% (20° slope Angle), the minimum running speed of
20km/h can be obtained(This calculation is an estimation and judgment method, which does not promise absolute accuracy. The final
conclusion depends on the test results of all parts after assembly.)
Continuous mileage on a single charge：100km
Battery recommended：18kwh/108V
The charging time：6-8 hours
maximum running speed of at least 90km/h .When the gradient percentage is 11.4% (20° slope Angle), the minimum running speed of
20km/h can be obtained(This calculation is an estimation and judgment method, which does not promise absolute accuracy. The final
conclusion depends on the test results of all parts after assembly.)
Continuous mileage on a single charge：100km
Battery recommended：18kwh/108V
The charging time：6-8 hours
Optional Products
|
Controller
|
|
|
|
Rated output current
|
125A
|
|
|
Peak output current
|
430A
|
|
|
Rated input voltage
|
108VDC
|
|
|
Overall dimensions
|
L*W*H(mm)270*213*104
|
|
|
Weight
|
5.4kg
|
|
|
Cooling way
|
Natural cooling
|
|
|
Working temperature
|
-40~85℃
|
|
|
Storage temperature
|
-40~105℃
|
|
|
Protection grade
|
IP67
|
|
Charger
The product has the advantages of high efficiency, small size, high stability, long life, etc. The whole potting and sealing
process has the characteristics of up to IP67 protection level, which can work safely, high reliability and complete protection
functions under the condition of short time immersion. It is an ideal power source for electric vehicle charging.The built-in
thermal sensor of the charger can work reliably at -35℃ -+ 85℃, with overheating protection function and automatic recovery.
process has the characteristics of up to IP67 protection level, which can work safely, high reliability and complete protection
functions under the condition of short time immersion. It is an ideal power source for electric vehicle charging.The built-in
thermal sensor of the charger can work reliably at -35℃ -+ 85℃, with overheating protection function and automatic recovery.
|
Input voltage range
|
AC 90～265V
|
|
Input current
|
16A
|
|
Output rated voltage
|
108V
|
|
Output voltage range
|
34～132VDC
|
|
Maximum output current
|
32A
|
|
The power coefficient
|
≥0.99 More than half cargo
|
|
Frequency
|
45-65Hz
|
|
The output power
|
3300W@220VAC 1600W@110VAC
|
|
Input overvoltage protection
|
AC270±5V
|
|
Input undervoltage protection
|
AC85±5V
|
|
DC converter
|
|
|
|
Rated power
|
1KW
|
|
|
Peak power
|
1.2KW
|
|
|
Input rated voltage
|
DC108V
|
|
|
The output voltage
|
14V±1%
|
|
|
Output current
|
72A
|
|
|
Protection level
|
IP67
|
|
|
Operating temperature
|
- 40℃～60℃
|
|
|
Protection function
|
Output over voltage, under voltage, short circuit protection, input reverse connection protection, over
|
|
|
Product size
|
278(length)x116(width)x74(height)
|
|
Our Company
Shandong Super Motor Power Tech Co.,Ltd. is a professional manufacturer of the driving kit for electric vehicles, which includes the electric motors, transaxles，controllers, battery chargers for. Widely used on electric golf carts, sightseeing vehicles, electric 4 wheelers, beach vehicles, mini-trains, cleaning equipment, and other industrial electric vehicles.
Meanwhile, we are able to design, test and produce proper motors and other parts to suit your specific application.
Besides producing a range of electric car parts, we are able to supply solutions for your electric vehicles.
We develop and sell driving kit including motor, controller, and axle for our customers for 40 plus countries and regions all over the world. Meanwhile, we are pleased as well to provide the optional parts, such as charger, dashboard, DC-DC converter, steering system, suspension,chassis, tires, and battery pack per request on your behalf.
RESEARCH AND DEVELOPMENT EQUIPMENT
RESEARCH AND DEVELOPMENT
Packing & Delivery
Packing Details : Special exporting package, including wooden package , carton package and Fumigation wooden package .we take all possible measures to ensure that our products can be delivered to the customers all over the world.
Delivery Details : 7-15 days after order of Solid bicycle tire tubes
DHL: 3-7 working days ；
UPS: 5-10 working days；
TNT: 5-10 working days；
FedEx: 7-15 working days；
EMS: 12-15 working days；
China Post: Depends on ship to which country；
Sea: Depends on ship to which country
Our Service
1. OEM Manufacturing welcome: Product, Package...
2. Sample order
3. We will reply you for your inquiry in 24 hours.
4. after sending, we will track the products for you once every two days, until you get the products. When you got the
goods, test them, and give me a feedback.If you have any questions about the problem, contact with us, we will offer
the solve way for you.
FAQ
1. What is your lead time for production?
The typical lead time of our product is 15 working days, if in stock 7 days.
2. What kind of warranty Kingwoo provides?
We provide 13 months warranty to the product sold from the shipping date. At the same time, we will provide some FOC spare parts for rapid worn parts.
3. What kind of payment methods can you accept?
Normally we can accept T/T,L/C,Western union.Order can be generated online, order modified, online payment can achieved，We support offline payment
4. What is your MOQ?
Our MOQ is one set.
5. Can I put my own Logo on the product?
Yes, you can put your own Logo on the product.
6. Do you provide OEM service?
Yes, we do provide OEM service.
7. Can you customize the product according to our special request?
Yes, we can customize the product according to your request
8. Do you supply spare parts if I buy your product?
Yes, we supply all the spare parts used in our product at reasonable price and lead time. Furthermore, for the model which we stopped production, we even supply spare parts in 5 years from the year we stopped it.
9. Do you provide after service if I buy your vproduct?
We will provide spare parts and technical support for after service. However, if any parts need to replace, you will need to do this yourselves, we will provide instruction if needed.
10. Do you provide spare parts book and operational manual?
Yes, we provide them. The operational manual will be sent together with the product. The spare parts book will be sent via email separately.
11 .Do you provide Trade Assurance via Alibaba?
Yes, we do. Trade Assurance order is welcomed!
