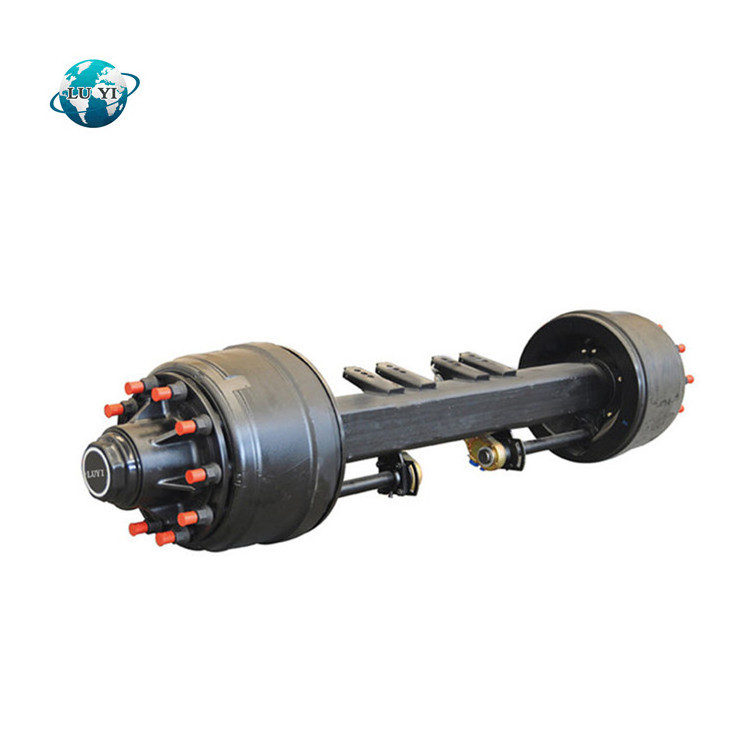

Heavy duty Utility semi trailer truck single suspension axle for sale

Product Description

• One high-quality low-alloy axle tube has strong carrying capacity and high bendng strength .
• The axle tube tempered as a whole and then quenching optimized which made by finishing high-precision machinery .
• Evvironmentally friendly Non-asbestos brake shoe which increase the wear life of more than 25% .
• Brake componets has strong interchangeability , S-camshaft , so that have more flexible and reliable brake action .
• Adopt heavy-duty bearings which specially used for heavy vehicles has strong interchangeability .
• The unique beauty with O-ring of the steel wheel cover has special good performance .
• ABS optinal .
• Integral heat-formed alloy-steel axle beam, advanced forming technology thickened the spindle wall. Wholly heat treatment for the axle beam, to ensure strength in load capacity and light in weight;
• Advanced bearing journals and radius heat hardening increase the strength and prolong the life of the spindles;
• PLC-controlled automatic welding for brake brackets, pre-machined brake shoe assembly to guarantee reliable brake performance;
• High performance premium non-asbestos brake lining;
• Grease lubricant is supplied by Mobil;
• Spare parts interchangeable with the popular axles in market.

Note : (1) Optional track lengths avaliable

(2) Availavle with abs FIXING FEATURES

Built-in brake drum series

Max capacity (T)	Track (mm)L2	Brake size (mm)	Center distance of spring seat (mm)L3	Axle Tube (mm)	Center distance of brake chamber (mm)L4	Total length (mm)L1	Axle weight (mm)
13	1840	Φ420*180	≥930	150	372	2165	370
13	1840	Φ420*220	≥930	150	354	~2165	370
16	1850	Φ420*220	≥940	150	354	~2200	408
20	1850	Φ420*220	≥940	150	354	~2258	448

Disc brake series

Axle beam size(mm)	Max. capacity kg/lbs		Disc brake(mm)	Spring centre (mm)	Track (mm)	Total length (mm)
127	11.500/25.00		Φ430*45	980	1816	~2046
127	11.500/25.00		Φ430*45	980	1850	~2046
150	13.000/29.00		Φ430*45	980	1840	~2201

Oil lubrication systerm

Max capacity (T)	Track (mm)	Brake size (mm)	Center distance of spring seat (mm)	Axle Tube (mm)	Center distance of brake chamber (mm)	Total length (mm)	Axle weight (mm)
13	1969	Φ420*220	920~960	127*16	300	2165	370
13	1969	Φ420*220	920~960	127	300	~2165	370

Spoke type wheel series

Max capacity (T)	S cam brake series Φ*width		Track (mm)	Spline No.	Axle beam (mm)	Center distance of chamber		Total Length  (mm)
						CL(mm)	AC (mm)
16	S 420*220		1850	37	150	543	354	~2220
16	S 420*220		1850	37	150	543	354	~2220

Light weight axle

Max capacity (T)	Track (mm)L2	Brake size (mm)	Center distance of spring seat (mm)L3	Axle Tube (mm)	Center distance of brake chamber (mm)L4	Total length (mm)	Axle weight (mm)
13	1840	Φ420*220	≥930	150	354	~2165	350
16	1850	Φ420*220	≥940	150	354	~2200	390
20	1850	Φ420*220	≥940	150	354	~2258	435

Single point of suspension

Rated Load (kg)		Weight	Axle Tube (mm)	Axle space (mm)
24000		2150	150*150*14	1385
28000		2550	150*150*16	1550
32000		2605	150*150*16	1550

Two line four axle suspension

Max capacity (T)	Track (mm)	wheelbase (mm)	Center distance (mm)	Total width (mm)	E (mm)	F (mm)	M (mm)	N (mm)	Central Height (mm)	Back and forth Angle α	Angle of swing β	Brake
40	865	1220	1600	2970	230	489	320	115	190-220	7-9	6	Φ311*190
40	865	1362	1600	2970	230	489	320	115	190-220	6-8	6	Φ311*190
40	915	1220	1640	3060	220	489	320	115	190-220	7-9	6	Φ311*190
40	880	1220	1600	2995	205	489	320	115	190-220	7-9	6	Φ311*190
60	865	1450	1600	2990	210	489	320	115	190-220	7-9	6	Φ420*180
60	940	1450	1700	3205	195	489	320	115	190-220	7-9	6	Φ420*180
60	940	1450	1740	3270	210	489	320	115	190-220	7-9	6	Φ420*180
60	965	1550	1800	3390	210	489	320	115	190-220	5-8	6	Φ420*180
60	880	1320	1600	2996	204				220	5-8	6	Φ420*180
80	965	1550	1845	3470	220	489	320	115	220	6	6	Φ420*220

Here we have only listed some of the models we produce, and please note that we can produce various specifications semi trailer axle according to your drawings, sample or specific parameters you give us.

More axle details , please feel free to contact with us .
