Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Topright
-
Dimension(L*W*H):
-
245x60mm
-
Weight:
-
0.4 KG
-
Warranty:
-
One Year
-
Working Temperature Range:
-
0 - 700 ℃
-
Core Components:
-
resistance wire
-
Wattage:
-
20-1000w
-
Heating wire:
-
Ni-Cr or FeCrAl
-
Standard voltage:
-
220/230v
-
Operation temperature:
-
200c
-
thermocouple:
-
with or without
-
Color:
-
white/black/yellow
-
Working Life:
-
1-5 years
-
About Health:
-
Healthy-Free From Pollution
-
Can customized:
-
Yes
Quick Details
-
Type:
-
Air Heater
-
Power Source:
-
Electric
-
Voltage:
-
220-230v
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
Topright
-
Dimension(L*W*H):
-
245x60mm
-
Weight:
-
0.4 KG
-
Warranty:
-
One Year
-
Working Temperature Range:
-
0 - 700 ℃
-
Core Components:
-
resistance wire
-
Wattage:
-
20-1000w
-
Heating wire:
-
Ni-Cr or FeCrAl
-
Standard voltage:
-
220/230v
-
Operation temperature:
-
200c
-
thermocouple:
-
with or without
-
Color:
-
white/black/yellow
-
Working Life:
-
1-5 years
-
About Health:
-
Healthy-Free From Pollution
-
Can customized:
-
Yes
Products Description

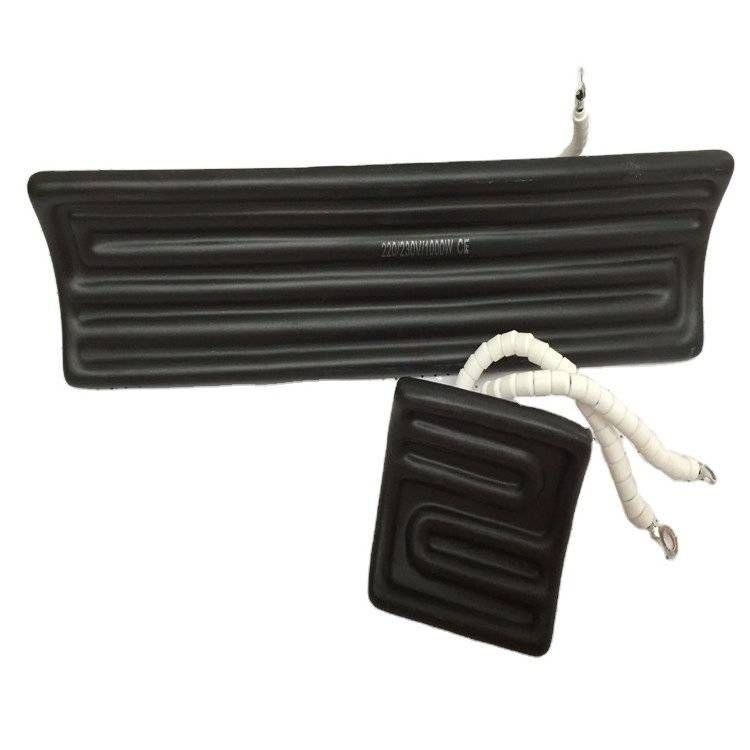

Far infrared outdoor ceramic heater are working under temperature 300°C to 700°C (572°F - 1292°F) producing infrared wavelengths in the range of 2 to 10 micron, which is in the most suitable distance for plastics and many other materials absorb, which makes infrared ceramic heater the most efficient infrared radiant emitter on the market.
A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.
A range of aluminized steel reflectors are also available to ensure that most of the radiation generated is reflected forward on to the target area.
|
Product Name
|
110v 120v 220v 230v 240v Far Infrared Ceramic Heater for Thermoforming
|
|
Color
|
white, yellow, black, etc
|
|
Power
|
125-1500W
|
|
Usually size
|
245 x 60, 245 x 80, 122 x 122, 122 x 60, 80 x 80,60 x 60mm
|
|
Shapes
|
Arc, Hollow and Flat
|
|
Voltage
|
110-440volts
|
|
Thermocouple
|
Optional, K or J Type
|
|
Operating Temperature
|
300C - 700C
|
Detailed Images
Application
Application
1.PET perform heating in stretch blow molding machines
2.Printing Ink drying in offset machines
3.Screen-printing curing on T-shirts and textiles
4.Powder coating curing
5.Rubber coated drying
6.Sterilizing/mirror coating drying in glass industries
7.Paint baking
8.Paper coating drying
9.All type of lamination
Preheating prior to embossing
2.Printing Ink drying in offset machines
3.Screen-printing curing on T-shirts and textiles
4.Powder coating curing
5.Rubber coated drying
6.Sterilizing/mirror coating drying in glass industries
7.Paint baking
8.Paper coating drying
9.All type of lamination
Preheating prior to embossing
The Related Products
Certifications
Packing＆shipping
Every infrared ceramic heater has its own box to protect it .
The overall packaging uses foam cartons to reduce collisions.
