Quick Details
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service:
-
One Year
-
Warranty:
-
One Year
-
Type:
-
Full Trailer
-
Load Capacity:
-
4T
-
Wheel Base:
-
Customized
-
Axle Number:
-
2 Axle
-
Material:
-
Steel
-
Grade:
-
Light Duty
Quick Details
-
OE NO.:
-
customized
-
Max Payload:
-
4T
-
Size:
-
optional
-
Place of Origin:
-
Jiangsu, China
-
After-sales Service:
-
One Year
-
Warranty:
-
One Year
-
Type:
-
Full Trailer
-
Load Capacity:
-
4T
-
Wheel Base:
-
Customized
-
Axle Number:
-
2 Axle
-
Material:
-
Steel
-
Grade:
-
Light Duty
Product Description
Basic info.
|
Item
|
Length (mm)
|
Wheel Base(mm)
|
Width of the Trailer(mm)
|
Loading Weight(kg)
|
|
CJAR330
|
1500
|
1370
|
1550
|
780
|
|
CJAR520
|
1700
|
1570
|
1750
|
1000
|
|
CJAR580
|
2000
|
1870
|
2100
|
1700
|

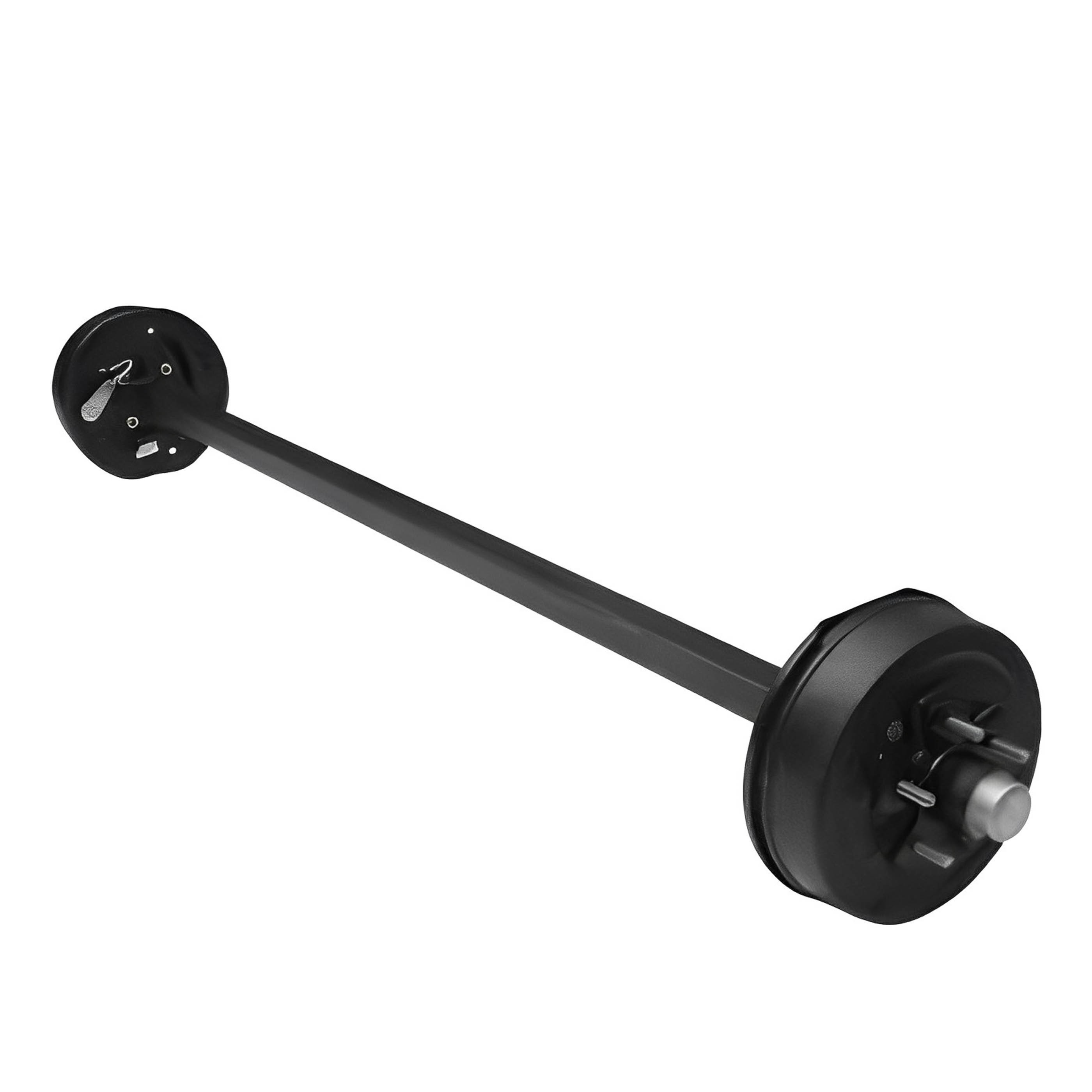

Product Details
Specification
|
Tubing:
|
2 3/8" OD (Standard), Galvanized Option (Marine),Corrosion Resistant Hubs
|
|
|
• V-Bend Beam Option
|
|
Bolt Pattern Options:
|
• 5 on 4 1/2", 4 3/4", 5", and 5 1/2"
|
|
|
• 6 on 5 1/2"
|
|
Brake Options:
|
Some available with parking feature.
|
|
|
• 10" x 2 1/4" Electric (Manual or Nev-R-Adjust®)
|
|
|
• 10" x 2 1/4" Hydraulic (Uni-Servo, Duo-Servo or Freebacking)
|
|
|
• 10" X 2 1/4" Hydraulic Freebacking Corrosion
|
|
|
Resistant (Galv/Marine Axle)
|
|
|
• Hydraulic Disc: 5 on 4 1/2" only
|
|
Spindles:
|
Uses L68149 Inner Bearing, L44649 Outer Bearing.
|
|
|
• Straight • Drop: 4" or 6"
|
|
|
• Stainless Steel Wear Sleeves on Galvanized Axles
|
