Quick Details
-
Brand Name:
-
KJ
-
Model Number:
-
DRJ02000
-
Output Energy:
-
>=5mj
-
Ranging Gating:
-
20~5000m(step length 10m)
-
Repeat Frequency:
-
1/10(6times/min)
-
Output Interface:
-
RS232 serial port, 115200, 8, N, 1.
-
Display:
-
OLED Screen and Reticle Eyepiece
-
Magnification:
-
10X
-
Power Supply:
-
Rechargable Polymer Lithium Battery
-
Working Temperature(Degree):
-
-40 to +50
-
Weight:
-
715g
-
Certification:
-
Intertek
Quick Details
-
Warranty:
-
12 Months, 1 Year
-
Size:
-
60mm*130mm*186mm
-
Place of Origin:
-
Chongqing, China
-
Brand Name:
-
KJ
-
Model Number:
-
DRJ02000
-
Output Energy:
-
>=5mj
-
Ranging Gating:
-
20~5000m(step length 10m)
-
Repeat Frequency:
-
1/10(6times/min)
-
Output Interface:
-
RS232 serial port, 115200, 8, N, 1.
-
Display:
-
OLED Screen and Reticle Eyepiece
-
Magnification:
-
10X
-
Power Supply:
-
Rechargable Polymer Lithium Battery
-
Working Temperature(Degree):
-
-40 to +50
-
Weight:
-
715g
-
Certification:
-
Intertek

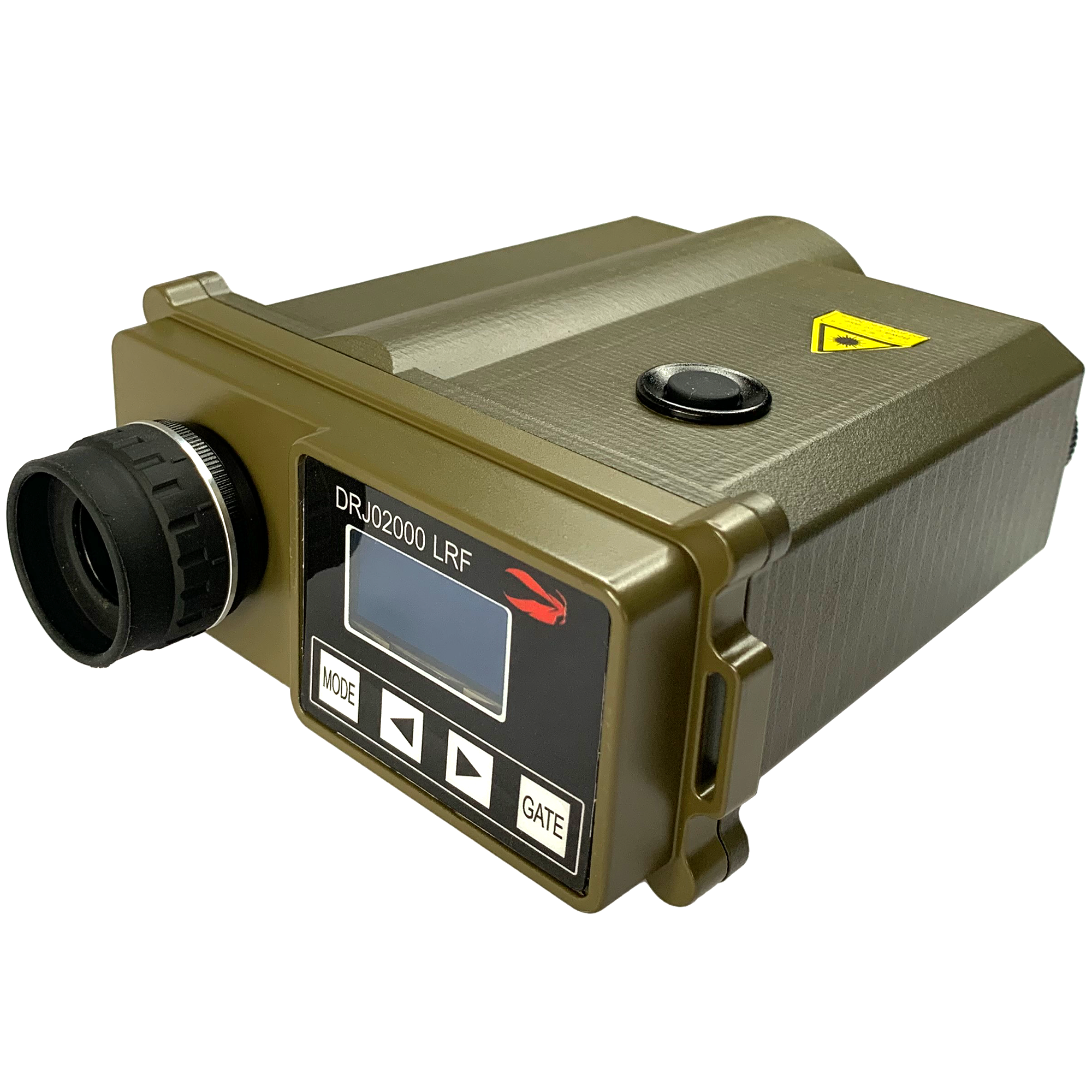

Products Appearance
| Front | Back |
|
|
| Objective Lens | Eyepiece&Display |
|
|
Technical Parameters
| Technical Index | Details: |
| Light source | ND: YAG |
| Wavelength | 1064nm |
| Output energy | ≥ 5mj |
| Working life | ≥ 20000 times |
| Ranging Distance | 30m-20km |
| Ranging Accuracy | ±1m(0.3m) |
| Ranging Gating | 20~5000m (step length 10m) |
| Accurate Rate | 98.00% |
| Repeat Frequency | 1/10(6times/min) |
| Measured Data | Average Value of Measured Data. |
| Data Storage | 10 data on this device and more data can be viewed by the serial port |
| Data Transmission | Output interface: RS232 serial port, 115200, 8, N,1 |
| Display | OLED display screen and Reticle eyepiece. |
| Screen Adjustment | Lighting and brightness adjustment of the screen, and cross reticle. The 30s automatically closes without any operation. |
| Working life | Accumulated laser working life |
| Queries | Last ten ranging value; Serial number; Store data; Battery capacity check. |
| Receiving aperture | Φ42mm |
| Field of view | 5.5° |
| Magnification | 10X |
| Working Temperature | -40℃~+50℃ |
| Adapt to environment | Dustproof, waterproof, and shockproof. |
| Dimensions | 60mm*130mm*186mm |
| Weight | 715g |
| Power Supply | Polymer lithium battery packs (7.4V or 11.1V/1000mAh), can work more than 2000 times per sufficient battery pack at normal temperature. |
1.0 Design Concept
1.1 Trigger Key (TK): Turn on and emit laser pulses to make the instrument normal ranging.
1.2 GATE: Set the distance gate of the instrument. Under the main interface, press the distance gate once will add 500m to the gate value.
1.3 Add Key (
l
>
): Numeric correction. Under the main interface, press
l
>
key one-time will add 10m.
1.4 Minus Key (
<1
): Numeric correction. Under the main interface, press
<1
key one-time will reduce 10m.
1.5 MODE: Menu button, press this button to switch the display content.
1.6 Display window: display the distance value and operation function characters.
1.7 Eyepiece: The operator aims at the target with this eyepiece.
1.8 Battery compartment: Load 3 ICR 10440 rechargeable lithium batteries.
1.9 Connecting Plug: Signal Input/output for Instruments and External Equipment.
1.10 Installation Interface: Used to install the instrument in the tripod or fixed special position.
1.11 Laser Emission: Emission laser. It is forbidden to emit laser to people.
1.12 Laser Receiver: Used to receive the signal reflected from the target.
|
Pin No. & Function
1: Signal Ground 2: +VDD 3: Trigger 4: TXD 5: RXD 6: Charging Port |
