Sxinen OEM/ODM PCBA Sealed film pressure sensitive sensor out of bed alarm position detection Smart seat cushion floor sofa FSR

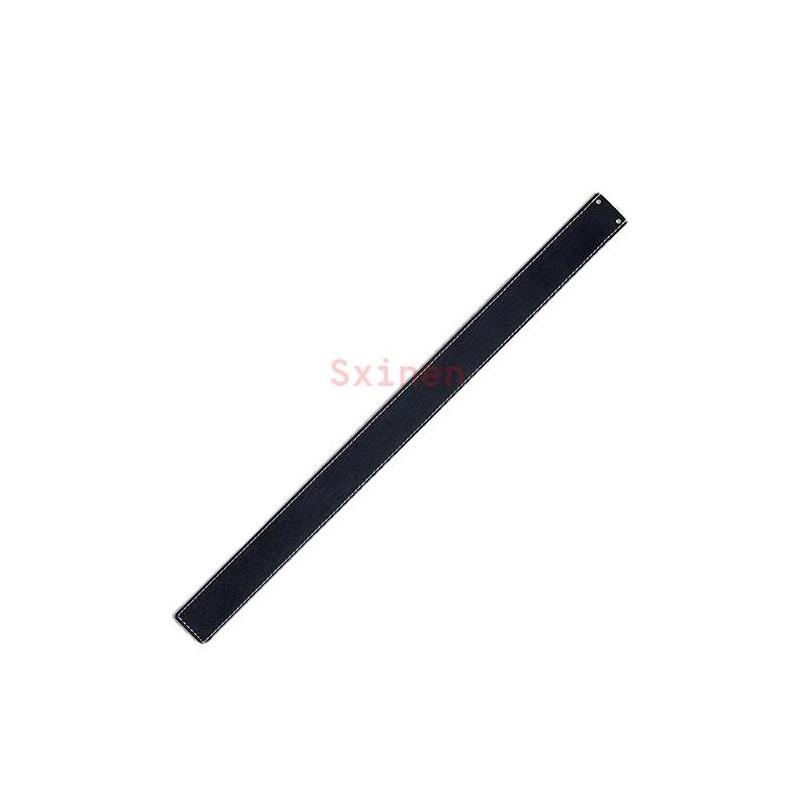

RP-L is a resistive thin-film pressure sensor with a long strip sensing area. The pressure sensor consists of a conductive material with excellent overall mechanical properties, a nano-scale pressure-sensing material, and an adhesive material. The top layer is a flexible polyester film and a conductive layer laminated to it, and the bottom layer is a flexible film and a pressure-sensing material laminated to it. The two are laminated by double-sided adhesive and isolate the sensing area of the top and bottom layers.
Sensor in the natural state in the open-circuit state, infinite resistance; when the external pressure reaches a certain value (such as 20g), the bottom layer of pressure-sensitive materials contact the top layer of the line separated from each other, and make it conductive, the sensor trigger, from the open-circuit state to jump to the pressure-sensitive state, the sensor resistance from infinity to jump to 200K ohms or less. As the external pressure continues to grow, the sensor resistance gradually decreases, the change in resistance with the pressure changes accordingly, the greater the pressure, the smaller the resistance value, such as 10Kg pressure, the resistance drops to less than 2K ohms.
Sensor interface with metal terminals, can be directly tin solder wire. The sensor has a certain flexibility, can be properly bent, and can be attached to the appropriate curvature of the curved surface.

Diodes: fast recovery diodes, rectifier diodes, switching diodes, modulating diodes, Schottky diodes, voltage regulator diodes, light-emitting (led) diodes, laser (photoelectric) diodes, trigger diodes, varactor diodes, transient suppression diodes, detector diodes, power diodes.

Triode: field effect tube MOS, silicon controlled (thyristor), low noise amplifying triode, high frequency amplifying triode, low frequency amplifying triode, magnetic triode, Darlington triode, high inverse voltage triode, with damping triode, switching triode, microwave triode, photosensitive triode, other triode.

Integrated IC: TV IC, audio IC, video player IC, VCR IC, computer IC, electronic piano IC, communication IC, camera IC, remote control IC, alarm IC, doorbell IC, flashing light IC, music IC, temperature control IC, watch IC, electric toy IC, cell phone IC, driver IC, voice IC, power supply module, display IC, voltage regulator IC, logic IC, linear IC, amplifier, memory, emulator, microcontroller, other IC

SMD potentiometer: original U.S. BOURNS / Burns, Panasonic full series 3314, 3224

Direct plug potentiometer: original U.S. BOURNS/BOURNS, Panasonic and other brands of the full range of 3296, 3266, 3362, 3386, and other direct potentiometer

3362, 3386, etc. full series of direct plug

Fuses: original U.S. BOURNS / Burns, Littelfuse Littelfuse and other brands of the full range of 2920, 1812, 1206, 1210, 0805, 0603 full series

Rectifier bridge series: mini rectifier bridge, flat bridge, square bridge, round bridge, thin bridge, DIP/SMD bridge

LED tube: SMD full series 0603, 0805, 1206, 1210, DIP full series F3, F5

Chip resistors: 0201, 0402, 0603, 0805, 1206, 1210, 1812, 2010, 2512 full series of package resistors, chip series of resistance

Chip resistors: full series of direct insert, full series of SMD

SMD tantalum capacitors: P type (2012), A type (3216), B type (3528), C type (6032), D type (7343), E type (7343) full series package

SMD capacitors: 0402, 0603, 0805, 1206, 1210, 1808, 1812, 2220, etc.

Direct insert capacitors: porcelain chip capacitors, high voltage capacitors, electrolytic capacitors, tantalum electrolytic capacitors, CBB capacitors, etc.
