Quick Details
-
Model Number:
-
AP100LFP-MP
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-

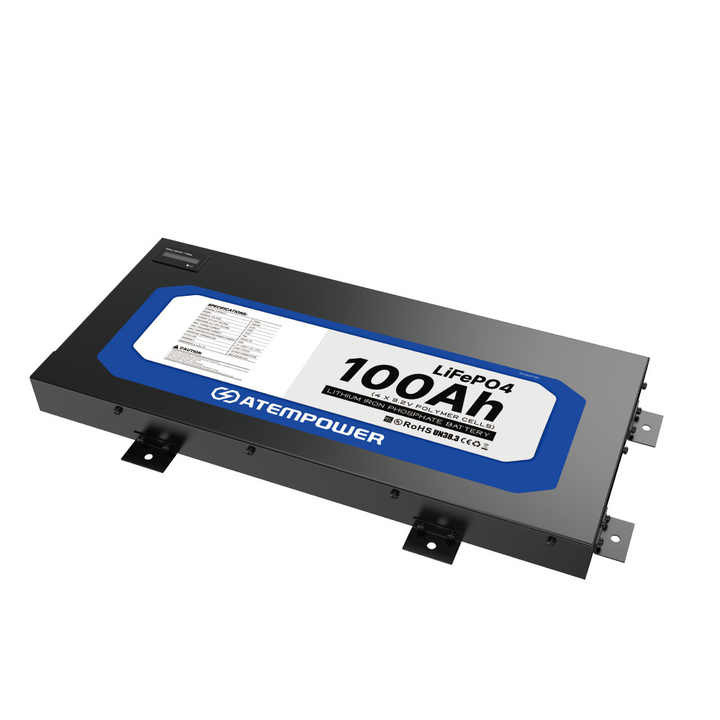

12V 100Ah Slimline Lifepo4 Battery
-
Cycle Life:
-
1C/100%;2000Cycles
-
Max.Charge Current:
-
50A
-
Max.Discharge Current(≤7s):
-
200A
-
Charge Voltage:
-
10V-14.6V
-
Max.Modules in Series/Parallel:
-
2S/2P
-
Working Temperature:
-
-20~70℃
-
Max.Continuous Charge Current(25℃):
-
50A
-
Max.Continuous Discharge Current(25℃):
-
100A
-
Recommended Charge Current:
-
50A
Quick Details
-
Anode Material:
-
LFP
-
Application:
-
Power Tools, Home Appliances, Consumer Electronics, BOATS, Golf Carts, SUBMARINES, Electric Bicycles/Scooters, electric vehicles, Electric Power Systems, Solar Energy Storage Systems, Uninterruptible Power Supplies
-
Brand Name:
-
ATEM POWER
-
Model Number:
-
AP100LFP-MP
-
Place of Origin:
-
Zhejiang, China
-
Product Name:
-
12V 100Ah Slimline Lifepo4 Battery
-
Cycle Life:
-
1C/100%;2000Cycles
-
Max.Charge Current:
-
50A
-
Max.Discharge Current(≤7s):
-
200A
-
Charge Voltage:
-
10V-14.6V
-
Max.Modules in Series/Parallel:
-
2S/2P
-
Working Temperature:
-
-20~70℃
-
Max.Continuous Charge Current(25℃):
-
50A
-
Max.Continuous Discharge Current(25℃):
-
100A
-
Recommended Charge Current:
-
50A
Product Description
Specification
|
Product Name
|
12V 100Ah Slimline LiFePO4 Battery
|
|
Nominal Capacity
|
100Ah
|
|
Nominal Voltage
|
12.8V
|
|
Internal Resistance
|
≤10MΩ
|
|
Max.Charge Current
|
50A
|
|
Max.Discharge Current(≤7s)
|
200A
|
|
Charge Voltage
|
10V-14.6V
|
|
Working Temperature
|
-20~70℃
|
|
Max.Continuous Charge Current(25℃)
|
50A
|
|
Max.Continuous Discharge Current(25℃)
|
100A
|
Features :
* Fit Where Others Can’t: The super slim blade profile (5cm in thickness) makes it the perfect battery to be mounted
behind or under seats or at the 4x4’s back.
* A Grade Cell: It is composed of A grade prismatic cells that provides higher energy density and consistency and is less
prone to failure caused by vibration.
* Longer Lifespan: This slimline lithium iron phosphate battery can deliver up to 2,000 rounds — several times the life
of a lead-acid counterpart.
* Higher Usable Capacity: AGM are recommended to be discharged to 50% of the capacity while this lithium ion slim battery can be discharged to 80-90%.
* High Quality BMS: It allows a Max. 200A discharge current and provide voltage/ temperature monitoring and smart
balancing with a low self-discharge rate.
* High Power Output: It has been designed to allow sufficient discharge amp rating to power high power appliances such as a microwave or coffee machine.
* Run in Parallel or Series: Designed to allow for up to 2 batteries in series or 2 batteries in parallel to achieve
desired voltage and amp-hour capacity of the bank.
* Faster Charging: Lower internal resistance allows this 100Ah slimline lithium battery/slimline lithium iron battery/ to
be charged and ready to use much faster.
* Optimally Engineered: Volt meter displays LiFePO4 battery’s capacity and voltage, and twin 120A Anderson style plugs
for high current charging & discharging.
* Impeccably Lightweight: Weighted 16.5 kg, it provides 100AH that doubles the power of an AGM with half of that
weight,even SPCC steel enclosure is equipped. SPCC Enclosure: Made of Japanese standard SPCC steel, it is 20% stronger than typical hot rolled steel to better protect battery cells with glossy surface finish.
behind or under seats or at the 4x4’s back.
* A Grade Cell: It is composed of A grade prismatic cells that provides higher energy density and consistency and is less
prone to failure caused by vibration.
* Longer Lifespan: This slimline lithium iron phosphate battery can deliver up to 2,000 rounds — several times the life
of a lead-acid counterpart.
* Higher Usable Capacity: AGM are recommended to be discharged to 50% of the capacity while this lithium ion slim battery can be discharged to 80-90%.
* High Quality BMS: It allows a Max. 200A discharge current and provide voltage/ temperature monitoring and smart
balancing with a low self-discharge rate.
* High Power Output: It has been designed to allow sufficient discharge amp rating to power high power appliances such as a microwave or coffee machine.
* Run in Parallel or Series: Designed to allow for up to 2 batteries in series or 2 batteries in parallel to achieve
desired voltage and amp-hour capacity of the bank.
* Faster Charging: Lower internal resistance allows this 100Ah slimline lithium battery/slimline lithium iron battery/ to
be charged and ready to use much faster.
* Optimally Engineered: Volt meter displays LiFePO4 battery’s capacity and voltage, and twin 120A Anderson style plugs
for high current charging & discharging.
* Impeccably Lightweight: Weighted 16.5 kg, it provides 100AH that doubles the power of an AGM with half of that
weight,even SPCC steel enclosure is equipped. SPCC Enclosure: Made of Japanese standard SPCC steel, it is 20% stronger than typical hot rolled steel to better protect battery cells with glossy surface finish.
