Quick Details
-
Model Number:
-
A-001
-
Product name:
-
gas hose
-
Color:
-
any is available
-
Working temperature:
-
-5°C~65°C
-
Working pressure:
-
10-30 bar
-
Standard:
-
ISO9001
-
Length:
-
20m,30mm,50m,100m
-
Sample:
-
accepted
-
Gas Outlet:
-
accepted
-
Installation Type:
-
Wall Mount
-
MOQ:
-
1 meter
Quick Details
-
Processing Service:
-
Cutting
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
AGR
-
Model Number:
-
A-001
-
Product name:
-
gas hose
-
Color:
-
any is available
-
Working temperature:
-
-5°C~65°C
-
Working pressure:
-
10-30 bar
-
Standard:
-
ISO9001
-
Length:
-
20m,30mm,50m,100m
-
Sample:
-
accepted
-
Gas Outlet:
-
accepted
-
Installation Type:
-
Wall Mount
-
MOQ:
-
1 meter
Product Description
Medical Hoses
In compliance with the norm ISO5359-2014.Hose suitable for transfer of low pressure gas in the food systems of medical tools.3 layer atoxic PVC with textile renforce，high flexibility without silicon and heavy metals.This hose is suggested for the transport of oxygen，nitrogen oxide，air，Helium，xeno，carbon dioxide，nitrogen oxide and nitrogen mixture，air for surgical tools.Inner diameters and corresponding tolerances according to the norm UNI EN ISO 1307:2008.This is to emphasize that since thermoplastic products are subject to deformations and shrinking also due to the outside temperature，the length tolerance is±5％。
Phthalate content≤0.1％
Product Dimension: 1/4" MEDICAL HOSE
Inner Diameter:6.3MM 1/4 inch
Outer Diameter:12MM 0.47inch
Thickness:2.85mm 0.11inch
Weight per meter: 102 GR/M
Material:Non-toxic PVC
Working temperature: -15+50 celsus degree
Working pressure:20 Bar
Burst pressure:60 Bar
Layers Adherence:12-15N/m
Product Dimension: 5/16" MEDICAL HOSE
Inner Diameter:8MM 5/16 inch
Outer Diameter:14MM 0.55inch
Thickness:3mm 0.12inch
Weight per meter: 131 GR/M
Material:Non-toxic Medical Grade PVC
Working temperature: -15+50 celsus degree
Working pressure:20 Bar
Burst pressure:60 Bar
Layers Adherence:12-15N/m
MAIN TECHNICAL FEATURES:
-High Flexibility without silicon and heavy material
-Smooth sureface
-UV resistance
-Ozone resistance
-3 layer atoxic PVC with textile reinforce
Specification
|
Parameter
|
Detail
|
|
Structure |
PVC 3-layer pipe, the outer layer is wear-resistant PVC, the middle is a polyester wire reinforcement layer, and the inner layer
is a food grade material layer |
|
Color
|
White, Black, Blue Double, Yellow, Green, Grey, White + Black
|
|
Specification
|
1/4’’ / 5/16’’
|
|
Pressure
|
Working pressure:2.0MPA
|
|
Operating temperature
|
-10/+60℃
|
|
Advantages
|
Bright color, soft, smooth surface, anti-ultraviolet, anti-aging, anti-ozone
|
|
Apply
|
Medical equipment gas transport(medical pendant/gas outlet/adapter)
|

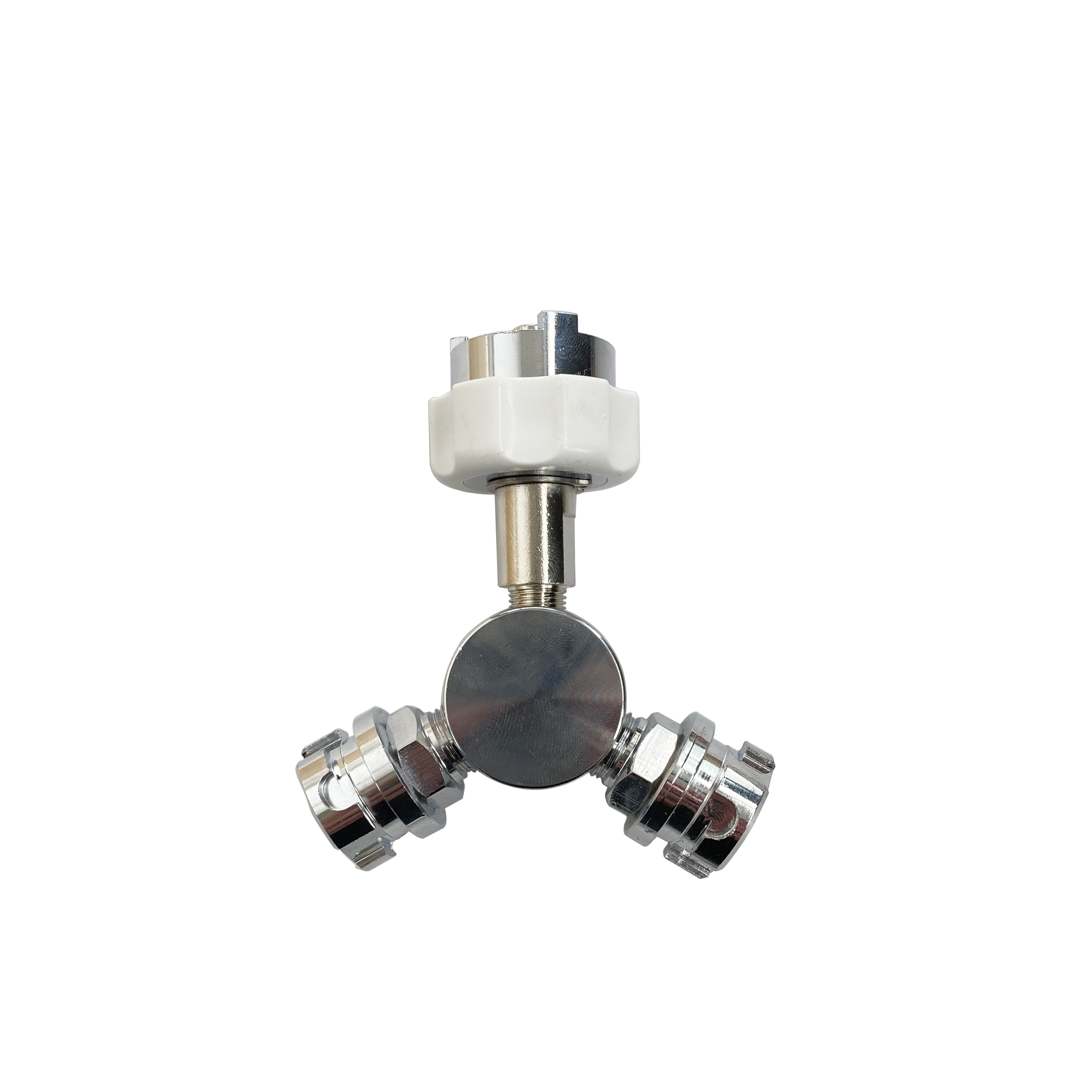

Medical Hose Assemblies
Medical gas hose assemblies are used for gas transmission between air sources and medical equipment
Suitable for oxygen, negative pressure suction, medical air, laughing gas,Exhaust gas, carbon dioxide, nitrogen, helium, power air
Connector form: Ohmeda, DISS, Chemetron, Puritan-Bennett, FS, GS, BS, NS and micro sockets
Maximum operating pressure: 200 psi
Fittings are made of high quality copper alloy, surface plating, cleaning treatment
Stainless steel ferrule, mechanically formed buckle, clamping firm and durable
EU CE certification in accordance with the standard ISO 5359
