iptv multicast qam scrambler cas modulator (TS IP multicast gigabit in, DVB-C RF out)

iptv multicast qam scrambler cas modulator (TS IP multicast gigabit in, DVB-C RF out)

FOB Reference Price: Get Latest Price

≥1 Sets

US $350

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

input:: ts udp multicast

output:: 4 RF F-head

Application Fields:: DVB Headend,Hotel IPTV,FTTH IPTV

whats-app:: +8615196699123

Frequency Range:: 47MHz~870MHz

Multiplexer:: from the input 32 IP

Scrambler:: support 4 CAS/SMS

Symbol Rate:: 5~9 Msps, 1Ksps step

Constellation:: 16, 32, 64, 128, 256 QAM

skype:: benter.niu

Quick Details

Place of Origin:: Sichuan, China

Brand Name:: sochuang

Model Number:: SC-4154

input:: ts udp multicast

output:: 4 RF F-head

Application Fields:: DVB Headend,Hotel IPTV,FTTH IPTV

whats-app:: +8615196699123

Frequency Range:: 47MHz~870MHz

Multiplexer:: from the input 32 IP

Scrambler:: support 4 CAS/SMS

Symbol Rate:: 5~9 Msps, 1Ksps step

Constellation:: 16, 32, 64, 128, 256 QAM

skype:: benter.niu

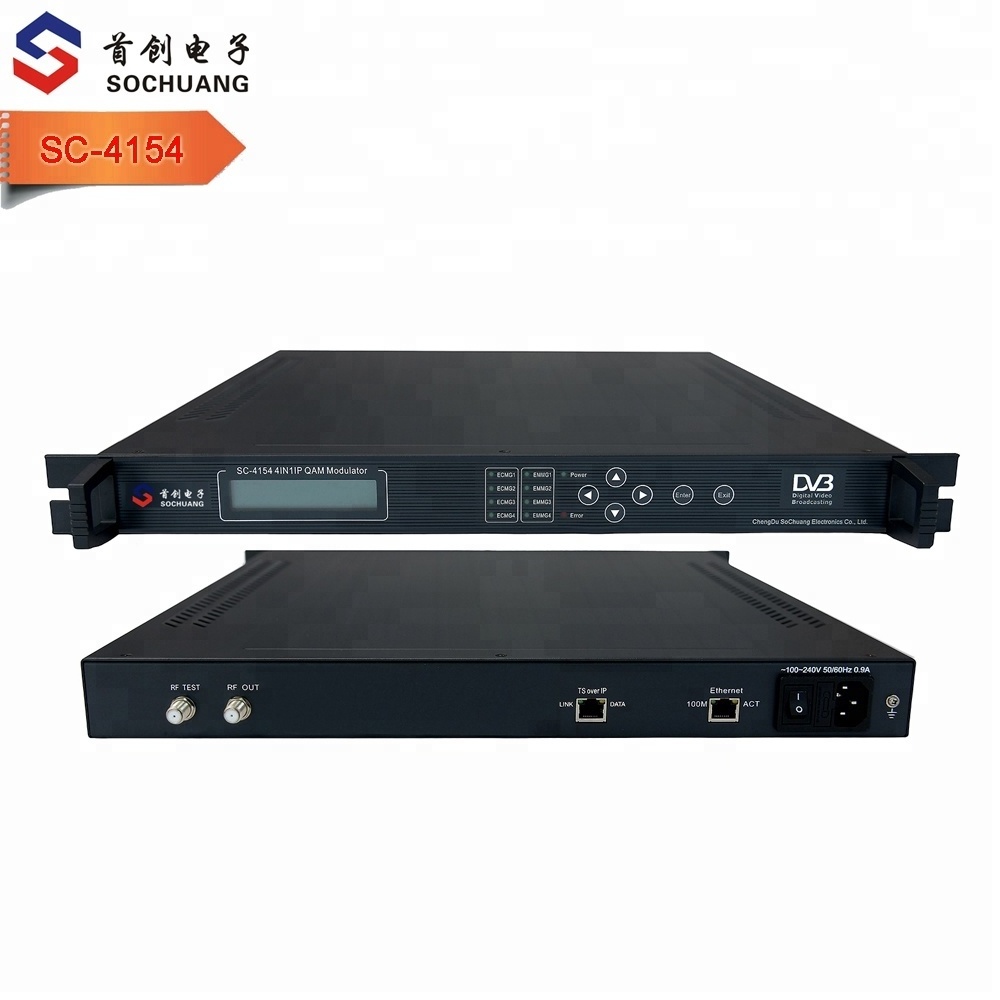

SC-4154 32 IP input multiplexer scrambler qam modulator /Multi-channel IP to DVB-C RF modulator/IP Edge QAM for DVB headend low cost

iptv multicast qam scrambler cas modulator (TS IP multicast gigabit in, DVB-C RF out)

Product Description

Overview

4 IN 1 IP QAM M odulator with MUX - S crambler support s 32 × IP input and 4 × RF output . T he input IP signal can be sent to signal processor and be converted to TS (transport stream) . I t integrates multiplexer, scrambler and QAM/DVB-C modulator. It supports 4 CAS/SMS S imul C rypt . It suits 1U rack and can be configured by front panel LCD and NMS ( network management software ). Its high-integrated and cost-effective design makes it widely used in varieties of digital broadcas ting distribution systems.

Features

1. Integrated mux-scrambler modulator

2. 32 × IP input

3. 4 × DVB-C RF output

4. Support 4× CAS/SMS

5. 8M cache, anti-burst stream

6. PID filter and re-mapping

7. PSI / SI edit, NIT table inserts and PCR correction

8. LCD/Keyboard control by front panel and network management by Ethernet

Technical Specifications

Input	IP	1000mbps IP port (32 × IP in)
Output	Interface	4 × RF, F-head
	Impedance	75Ω
	Constellation	16, 32, 64, 128, 256 QAM
	Symbol Rate	5 ~ 9 Msps , 1 K sps step
	Error-Correcting Codes	RS code188/204
	MER	≥ 40 dB
	BER	0
	Output L evel	90~ 1 10 dB u V
	L evel Test P ort	70~90 dB u V
	Level Attenuation Range	- 20 dBm~0dBm (per carrier), 0.5dB s tep
	Frequency Range	47MHz~870MHz
Multiplexer		from the input 32 × IP
Scrambler		s upport 4×CAS/SMS ; h ead-end implementation of DVB s imul c rypt (ETSI TS 103 197 V1.4.1)
Management		n etwork RJ-45 , 10/100M
Management		Key board +LCD
General Features	Size	4 82 mm× 2 8 0mm ×44mm
	Temperature Range	0 ~ 45 °C (Operati on ) ; -20 ~ 80 °C (Storage)
	Power	100-240VAC, 50Hz, 25W
