Quick Details
-
Worktable Length:
-
5200/5600/5800/6100mm
-
Worktable Width:
-
2200mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bluesky
-
Model Number:
-
FM2500
-
Warranty:
-
2 Years
-
Using range:
-
4S Station/garage Store/according
-
Color:
-
Customers' Request
-
Certification:
-
CE Approved
-
Durability:
-
Perfect Car Chassis Straightening Bench
-
Material:
-
Manganese Steel
-
Chain Size:
-
OD12mm
-
Measuring system:
-
2D Mechanical Measuring System Optional
-
Kinds of clamps:
-
Standard Clamps 4 Pieces
-
Air Supply Required:
-
8 Bar
-
Post Working Range:
-
360 Degree Maintenance Car
Quick Details
-
Weight:
-
2000kg
-
Bench Height:
-
560mm
-
Max. Lifting Capacity:
-
3500kg
-
Worktable Length:
-
5200/5600/5800/6100mm
-
Worktable Width:
-
2200mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Bluesky
-
Model Number:
-
FM2500
-
Warranty:
-
2 Years
-
Using range:
-
4S Station/garage Store/according
-
Color:
-
Customers' Request
-
Certification:
-
CE Approved
-
Durability:
-
Perfect Car Chassis Straightening Bench
-
Material:
-
Manganese Steel
-
Chain Size:
-
OD12mm
-
Measuring system:
-
2D Mechanical Measuring System Optional
-
Kinds of clamps:
-
Standard Clamps 4 Pieces
-
Air Supply Required:
-
8 Bar
-
Post Working Range:
-
360 Degree Maintenance Car
Product Description

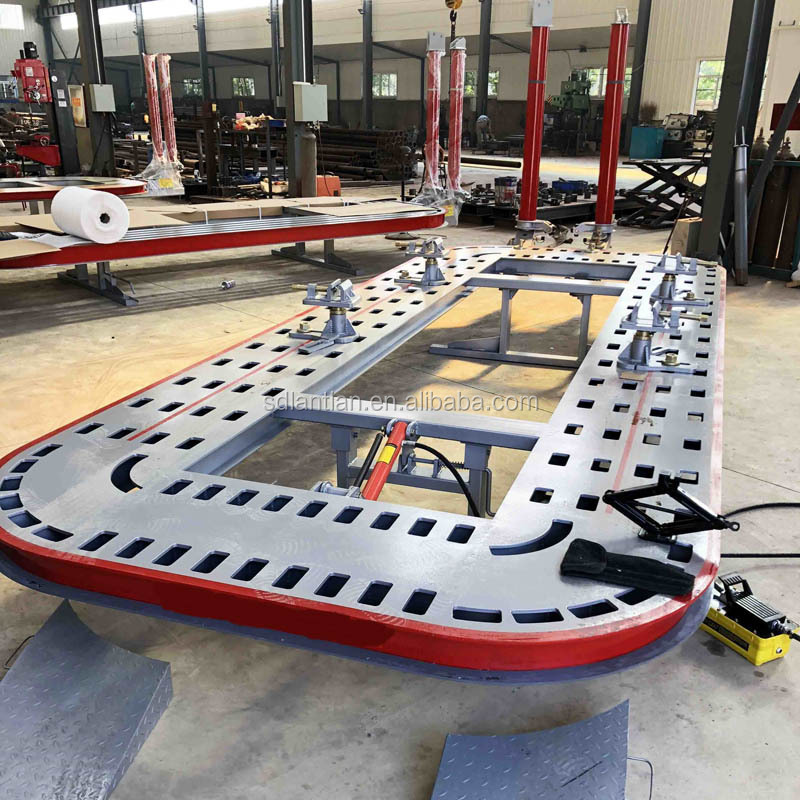

Yantai car frame straightening machine FM2500
Specification
|
Working length
|
|
5600MM
|
|
5800MM
|
|
6100MM
|
|
||||
|
Working width
|
|
2200MM
|
|
2200MM
|
|
2200MM
|
|
||||
|
Working height
|
|
560MM
|
|
560MM
|
|
560MM
|
|
||||
|
Max. load
|
|
3500KG
|
|
3500KG
|
|
3500KG
|
|
||||
|
Max. pulling capacity
|
|
95KN
|
|
95KN
|
|
95KN
|
|
||||
|
Tower pulling range
|
|
360°
|
|
360°
|
|
360°
|
|
||||
|
Air source pressure
|
|
0.8MPa
|
|
0.8MPa
|
|
0.8MPa
|
|
||||
|
Max hydraulic working pressure
|
|
70MPa(10000psi)
|
|
70MPa(10000psi)
|
|
70MPa(10000psi)
|
|
||||
|
|
|
|
|
|
|
|
|
||||
universal anchoring system with adjustable height
Cylinder suppor the platform single side lifting and lowering, convenient for accident cars moving on and off
10ton strengthen pulling tower,
pulling tower works 360 degree along side the platform, pulling capacity of pulling tower is 10tons
Optional Accessories
Mercedes-Benz BMW clamps Air jack 2D-Measurement
Electric control box square pulling tower platform packing carton
Packing & Delivery
Two Packages Packing size: 5650x2150x300mm,1600kg
2200x1300x400mm,450kg
4.78CBM, 2050KGS
