Minew Waterproof 2.9 Inch E Ink Digital Price Tag BLE 5.0 Electronic Shelf Label Smart Label

Minew Waterproof 2.9 Inch E Ink Digital Price Tag BLE 5.0 Electronic Shelf Label Smart Label

FOB Reference Price: Get Latest Price

≥50 Pieces

US $6.65

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Work logic:: Cloud Platform -> Gateway/APP -> ESL

Technology:: 2.4GHz & Bluetooth Low Energy 5.0

Chip:: Nordic nRF52

Size:: 91* 41* 14 mm

Color:: Black/White/Red

Certification:: CE/FCC/RoHS

Quick Details

Place of Origin:: Guangdong, China

Brand Name:: Minew

Model Number:: MTag29R

Work logic:: Cloud Platform -> Gateway/APP -> ESL

Technology:: 2.4GHz & Bluetooth Low Energy 5.0

Chip:: Nordic nRF52

Size:: 91* 41* 14 mm

Color:: Black/White/Red

Certification:: CE/FCC/RoHS

Product Description

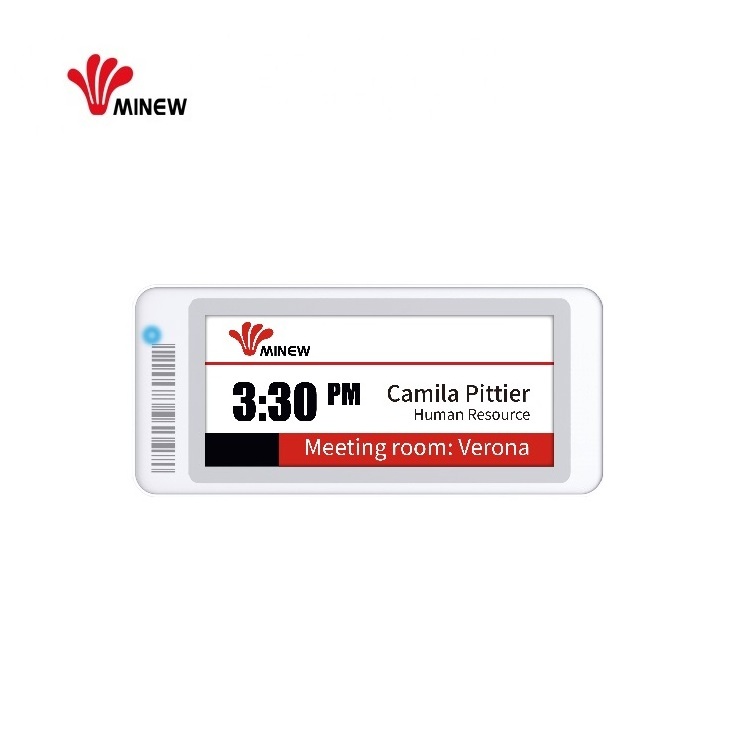

MINEW 2.9 Inch E-ink Epaper ESL Electronic Shelf Label

Minew 2.9 inch BLE 5.0 esl price tag applied with the latest Bluetooth® 5.0 technology and the high-quality dot matrix E-ink display. They can works from 0 °C to 50 °C, and all have the ultra-low power consumption batteries living up to 5 years. Minew electronic shelf labels are easy to control and manage with the MTag series development kit. It will bring you a brand-new
experience for smart retail.

Specification

Model Number	MTag29R
Size	2.90 inch
Dimensions (mm)	91 x 41 x 14.2
Weight (g)	45
Active display area (mm)	66.90 x 29.06
Resolution (pixels)	296 x 128
Pixel density	112 DPI
Pixel colors	Black/White/Red
Viewing angle	180°
Communication method	Bluetooth® 5.0
Battery	CR2450 x 2
Battery lifetime	5 years
Operating temperature	0 °C to 40 °C
Storing temperature	- 20 °C to 70 °C
Compliance	CE, FCC, RoHS

Electronic Shelf Labels (ESL), are the key to transforming physical world into digital assets. As a listed company & ISO9001 manufacturer of ESL, Minew offers high-quality electronic labels, empowering things to be more agile, responsive, and accurate, and beyond.

Minew Technologies, has established a complete digital signage IoT ecosystem with Bluetooth Low Energy 5.0/5.4, covers wide sizes and multiple functions, not only multi-color, waterproof, low-temperature resistance, gateway, sensor module, OEM and ODM, but also flexible platform (cloud and on-premise)

How does the ESL system work, the Cloud transmits the processed data to the ESL by the Gateway or the mobile phone APP in seconds. As the central control of the ESL system, the gateway plays the role of the communication bridge between the ESL and the Cloud system, uploading and delivering, waking up the ESL and transmitting information to display.

Areas of application: Paperless & Pricing, Conference & Meeting Rooms, Office Buildings, Public Sector & Medical Facilities, Restaurants & Hotels, Table Signage, Warehouse & Production Advantages and highlight: Innovative, Completely wireless, No AC electricity needed, Almost unlimited mounting options, Long operating life (Up to 5~10 years of battery life), Low power consumption through ePaper technology, Always up-to-date information centrally controlled, Attractive and modern appearance, Individual design and existing rich template options

Benefits:

For consumer: Accurate, Clear, Cost-saving, Convenient, Fast

For retailer: Upgrade the brand image, Optimize the management operation, Save the cost, Increase the interaction with customers, Promote the sales

For employee: Easy-to-use solution, Effective management, Serving customers better

Flexibility:

Flexible choosing: Color/type/outer shell/template for optional

Flexible installation way: Desk & floor Stand, Rail, Hook, Clip, Fixture, Sticker

Flexible management: Headquarter/branch/pioneer store/pilot store/flagship store Flexible operation: PDA/PC/APP/NFC/standard batch remote control/standalone one by one refresh/brush plan
