Quick Details
-
Product name:
-
Binocular Passenger Flow
-
Application:
-
Shop/Bus/Retail store/Bulidings
-
Size:
-
162mm*76mm*37.8mm
-
Material:
-
Metal and plastic
-
Power supply:
-
DC12V/POE
-
Data cache:
-
1 year
-
Weight:
-
300g
-
Height range:
-
2.2~6.0m
-
filter out highly:
-
0.5~1.2m
-
Power:
-
3.2W-3.6W
Quick Details
-
Brand Name:
-
FOORIR
-
Place of Origin:
-
Sichuan, China
-
Model Number:
-
HX-CCD20
-
Product name:
-
Binocular Passenger Flow
-
Application:
-
Shop/Bus/Retail store/Bulidings
-
Size:
-
162mm*76mm*37.8mm
-
Material:
-
Metal and plastic
-
Power supply:
-
DC12V/POE
-
Data cache:
-
1 year
-
Weight:
-
300g
-
Height range:
-
2.2~6.0m
-
filter out highly:
-
0.5~1.2m
-
Power:
-
3.2W-3.6W
|

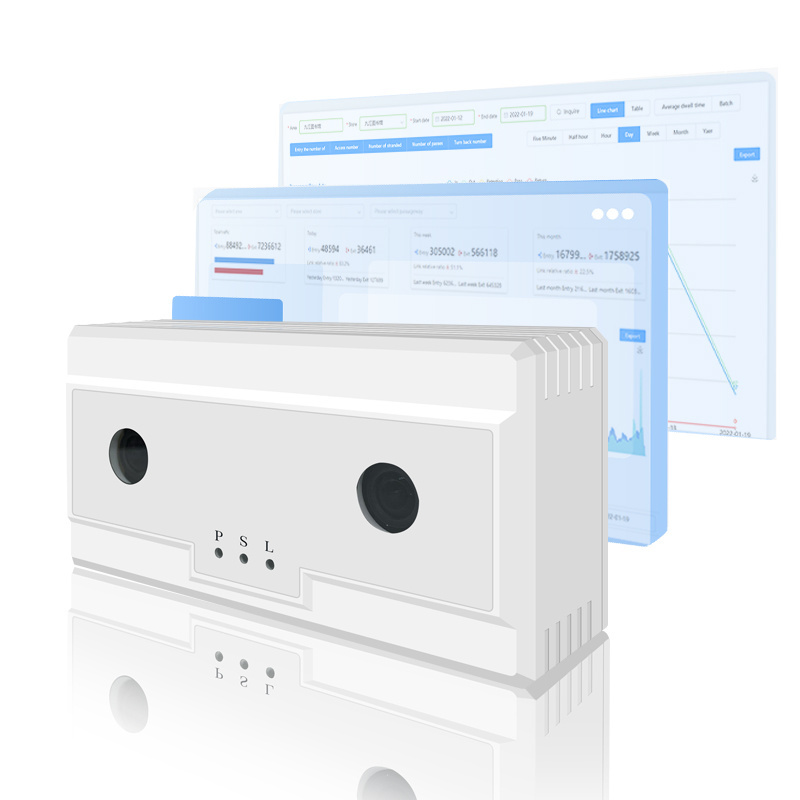

WiFi 3D Binocular Passenger People Footfall Counter
|
|
|
|
Visual Field
|
Horizontal 100°，Vertical 70°
|
|
|
Output Frame rate
|
640*400@25fps
|
|
|
Accuracy
|
≥98%
|
|
|
Height Range
|
2.2~6m
|
|
|
Coverage Range
|
1.2~5.5m
|
|
|
Filter Height
|
0.5~1.2m
|
|
|
Power
|
3.2W~3.6W
|
|
|
Power Supply Mode
|
POE（802.3af/at）/DC-12V
|
|
|
Ethernet cable
|
RJ45/RS-485/WIFI
|
|
|
IP Addressing
|
Statics IP / DHCP
|
|
|
Offline caching
|
90 Days
|
|
|
DATA UPLOAD Mode
|
HTTP POST/HTTPS POST
|
|
|
Other DATA Interface
|
485 x 1/ 9V～30V IO Input x 1
|
|
|
Work Temperature
|
-20°C~45°C
|
|
|
Work Humidity
|
20~80 %
|
|
|
Storage Temperature
|
-20°C~50°C
|
|
|
Storage Temperature
|
20~80 %
|
|
|
Structure（mm）
|
143x 70 x 40
|
|
|
Weight (g)
|
370
|
|
|
Installation
|
Top Mounting/Lifting/Pit Mounting
|
|
|
Box gauge
|
Single packing size: length 24cm * width 11cm * height: 9.5cm single packing weight: 0.56kg outer box size: length 49cm * width
49cm * high 25cm (20 sets), outer box weight: 12.3kg |
|
Passenger flow control，screen display
Know the passenger flow information in the area, warning of excessive number of people, more quickly to do personnel control
，Provide customized large screen display service, if you need to customize, please contact us.
Case
Sales countries
Device configuration debugging
On the same network segment, enter the debugging interface through the website we provided. It can link corresponding device to view passenger flow data in real-time, can view device information, modify device settings, installation height, filter height,rotation angle, detection direction, network parameters,etc., and also display the number of people enter/leave/pass through/stay on in real-time. It can also export a set time of the passenger flow data.
Platform
We can provide you with a free website platform to monitor and analyze data. The platform supports both Chinese and English modes. If you need to customize other languages, please contact us for more details
Installation
Tilt installed
The filter height of each device is 0.5m, and the installation height is 2.2~6M. It can be installed at 45° tilt and has a large field Angle of 100°
Multiple device can be spliced
Support 6 devices spliced, the Max covering range is 30M(
3-4 devices are recommended
), a complete video picture can be formed after multiple device spliced.
IP65 waterproof
It has passed IP65 waterproof certification
Characteristics
Three kinds of
network and t
wo kinds of
power supply
1.
Three types of networking: WIFI; RS485; RJ45.
2. Two power supply modes: DC or POE
2. Two power supply modes: DC or POE
