Quick Details
-
Application:
-
Laptop, Check gate
-
Series:
-
MIPI
-
Features:
-
30PINS
-
Mounting Type:
-
MIPI interface
-
Size / Dimension:
-
40x 22.2 x 20.4mm(oem)
-
Description:
-
OV13850
-
Size:
-
40x 22.2 x 20.4mm(oem)
-
Style:
-
Mipi Camera Module
-
Color:
-
Yellow
-
Use:
-
Laptop, Check gate
-
Sensor:
-
OV13850
-
Angle:
-
80°
-
Pixel:
-
13 mega
-
Highest resolution:
-
4224*3136
-
Frame rate:
-
30fps
-
Certification:
-
ce
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OEM
-
Model Number:
-
HZ-OV13850 S1.0
-
Application:
-
Laptop, Check gate
-
Series:
-
MIPI
-
Features:
-
30PINS
-
Mounting Type:
-
MIPI interface
-
Size / Dimension:
-
40x 22.2 x 20.4mm(oem)
-
Description:
-
OV13850
-
Size:
-
40x 22.2 x 20.4mm(oem)
-
Style:
-
Mipi Camera Module
-
Color:
-
Yellow
-
Use:
-
Laptop, Check gate
-
Sensor:
-
OV13850
-
Angle:
-
80°
-
Pixel:
-
13 mega
-
Highest resolution:
-
4224*3136
-
Frame rate:
-
30fps
-
Certification:
-
ce

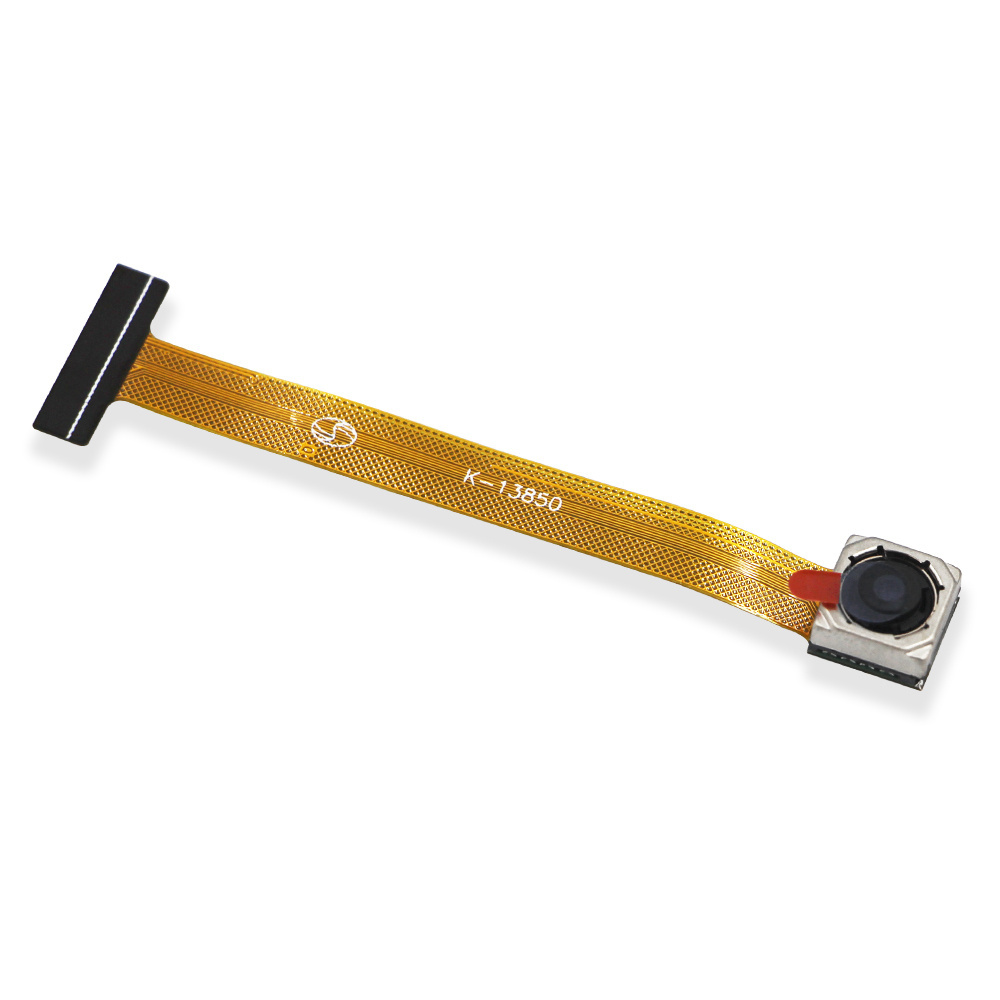

31 Pin ff long recording time mini watch spy 6K drone night digital photo industrial grade wdr hd ov13850 camera module
|
Module No.
|
HZ-OV13850 S1.0
|
|
|
Module Size
|
40x 22.2 x 20.4mm(oem)
|
|
|
Object distance
|
OEM
|
|
|
Resolution
|
≥1800lW/PH(Center)
|
|
|
Focus
|
Auto Focus
|
|
|
Interface
|
MIPI
|
|
|
Voltage
|
Core 1.0V±0.5%
analog 2.5~2.9V(2.8v typical) I/O 1.7 V~1.9V |
|
|
Temperature (Operation)
|
-30°C to 70°C
|
|
|
Temperature (Stable Image)
|
0°C to 50°C
|
|
|
PCB printing ink
|
Yellow
|
|
|
Package
|
PLCC/wafer
|
|
|
Sensor Type
|
|
|
|
Sensor No.
|
OV13850
|
|
|
Sercor Type
|
1/3.06"
|
|
|
Active Array Size
|
4224 X3136
|
|
|
Sensitivity
|
TBD
|
|
|
Pixel Size
|
1.12µm x 1.12µm
|
|
|
Maximum Image Transfer Rate
|
Full resolution 30@fps(Nornmal/HDR)4K2K@30fps(Nornmal/HDR)
1080P@60fps(Nornmal/HDR) |
|
|
LED Type
|
|
|
|
LED
|
5500-7000K
|
|
|
LENS
|
|
|
|
Thread
|
M6.5XP0.25
|
|
|
Lens Construction
|
5P
|
|
|
F/NO
|
2.2mm
|
|
|
EFL
|
3.46mm
|
|
|
FOV
|
80°
|
|
|
IR Filter
|
/
|
|
|
TV Distortion
|
<1.0%
|
|
|
S/N Ratio
|
TBD
|
|
|
Dynamic Range
|
TBD
|
|
|
IC Assembly
|
PLCC
|
|
|
Substrate
|
FPC
|
|
|
Assembly technique
|
Glue
|
|
|
Output Formats
|
30fps@full size
|
|
|
Fixed Pattern Noise
|
< 0.03% of VPEAK-TO-PEAK
|
|
