Quick Details
-
Model Number:
-
PT-712
-
Output signal:
-
4~20mA, 0-10V, etc
-
Accuracy:
-
0.2%FS, 0.5%FS
-
Pressure range:
-
0~60MPa
-
Process connection:
-
G1/4, R1/4, etc
-
Electrical connection:
-
M12 industrial plug
-
Working temperature:
-
-40 ~ 85
-
Overload pressure:
-
7 * FSO
-
Certificates:
-
CE UKCA
-
Pressure type:
-
Gauge Pressure Absolute Pressure Sealed Pressure
-
Application:
-
Hydraulic, injection molding machines, etc
Quick Details
-
Warranty:
-
1 YEAR
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
OULD
-
Model Number:
-
PT-712
-
Output signal:
-
4~20mA, 0-10V, etc
-
Accuracy:
-
0.2%FS, 0.5%FS
-
Pressure range:
-
0~60MPa
-
Process connection:
-
G1/4, R1/4, etc
-
Electrical connection:
-
M12 industrial plug
-
Working temperature:
-
-40 ~ 85
-
Overload pressure:
-
7 * FSO
-
Certificates:
-
CE UKCA
-
Pressure type:
-
Gauge Pressure Absolute Pressure Sealed Pressure
-
Application:
-
Hydraulic, injection molding machines, etc

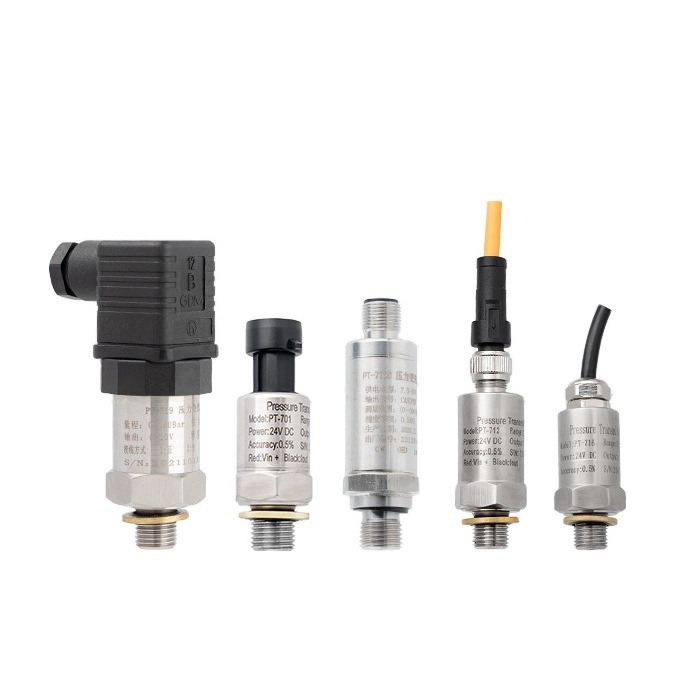

Product Description
|
output signal
|
4～20mA
|
0～10V
|
|
|
||
|
Power+
|
1 brown
|
1 brown
|
|
|
||
|
Voltage output
|
|
2 White
|
|
|
||
|
Current output/power supply-
|
3 blue
|
3 blue
|
|
|
||
Specification
Measuring range: 0MPa~0.1MPa~60MPa
Output signal: 4-20mA, 0-10VDC
Overload pressure: 200%FS, 150%FS (above 20MPa)
Power supply voltage: 24VDC (10~30VDC)
Process connection: G1/4, R1/4, customizable
Comprehensive accuracy: ±0.25%FS, ±0.5%FS
Working temperature: -40℃-85℃
Temperature drift: ±0.03%FS/℃
Protection level: IP65
Electrical connection: M12 industrial plug
You may need a long cable to use with this sender,Tell us by clicking the button below 1m/2m/3m/5m:
If you are not sure what kind of pressure sensor is right for your project.
please contact us
