Quick Details
-
Weight (KG):
-
7500
-
Applicable Industries:
-
Cable Recycling Machine
-
Machine Type:
-
Scrap Metal Shredders
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YUXI
-
Power (kW):
-
45
-
Weight (KG):
-
7500
-
Applicable Industries:
-
Cable Recycling Machine
-
Machine Type:
-
Scrap Metal Shredders
Products Description

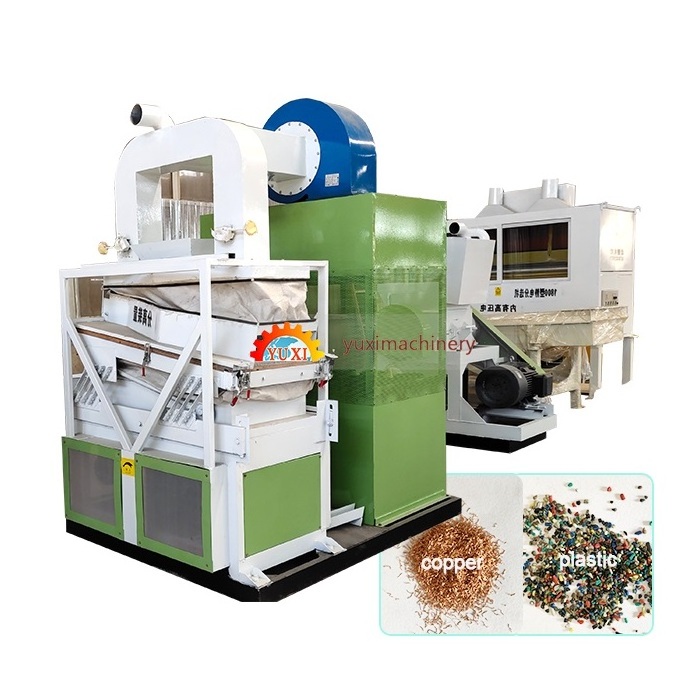

Electric Waste Cable Recycling Machine
The
waste cable recycling machine
is mainly used to dispose of used wires such as used circuit wires, miscellaneous wires, communication wires, data cables, and earphone cables.
The cable wire recycling production line consists of a shredder, a magnetic separator, a gravity sorter, a dust removal device, a control cabinet, and others.
Cable wire recycling machine can separate copper and plastic, high separation efficiency.
Configuration Line
|
No.
|
Machine Name
|
Content
|
Power
|
|
1
|
Crusher
|
Conveyor thCrusher the waste cable into 8 mm
|
30 kw
|
|
2
|
Gravity separator machine
|
Separator copper and plastic
|
3.3 kw
|
|
3
|
Dust bag type dust collector machine
|
Absorb waste dust to realize environmental protection
|
3.3 kw+1.5 kw
|
|
4
|
Pure copper outlet vibration screen
|
0Copper will come out from the vibration screen screen
|
0.37 kw
|
|
5
|
Pure plastic outlet vibration screen
|
Plastic will come out from the vibration screen screen
|
0.37 kw
|
|
6
|
PLC control panel
|
Control the plant start and stop and debugging
|
3.3kw+1.5kw
|
|
7
|
High voltage electrostatic separator machine
|
Separate the waste cables size below 8 mm
|
7.5 kw
|
Need us to configure the production line, please contact me
Raw Materials
Copper cable recycling machine
can process and dispose of various waste wires such as circuit wires, miscellaneous wires, communication wires, data cables, and earphone cables with diameters between 5 and 20 mm.
Final Products
The electric waste wire recycling production line is crushed, the specific gravity is sorted, and the air separation can obtain copper and plastic with a purity of more than 99%.
Working Process
Main machine of cable wire recycling equipment for your reference.
Cable shredder machine
Shredder machine is mainly used to tear the cable into small pieces of 3-10 cm, the size of the finished product is even
Crusher machine
Crusher machine
further crushing the raw materials and breaking the raw materials into smaller particles
Gravity Separator
Suitable for separating various metals and non-metals, stable performance and low noise
High Voltage Electrostatic Separator Machine
High voltage electrostatic separator machine
can sort metal and plastic twice, with higher purity
Technical Parameter
|
Model
|
YX400
|
YX600
|
YX800
|
|
Capacity
|
300-400kg
|
500-600kg
|
700-800kg
|
|
Total power
|
27KW
|
45KW
|
75KW
|
|
Dimension (m)
|
3.2*2.1*2.3
|
4*2.1*2.5
|
6.2*5*3.3
|
|
Motor NO.
|
6
|
6
|
6
|
|
Separation Ratio
|
99.70%
|
99.70%
|
99.70%
|
|
Dust Removal Ratio
|
99.70%
|
99.70%
|
99.70%
|
|
Weight(kg)
|
3120
|
4500
|
6800
|
Advantage
1. Factory direct sales, quality after-sales protection, cost-effective.
2. The model is complete, and can also be customized according to different needs.
3. Adopt PLC control to make the equipment evenly fed, stable and safe, and have automatic alarm function.
4. The shredder adopts a high hardness spindle and has a long service life.
5. The combination of airflow sorting equipment and high-voltage static equipment makes the sorting rate as high as 99% or more.
6. The material returning system makes the semi-finished product undergo secondary pulverization, which ensures the complete separation of metal and non-metal.
Why Choose Us
About Yuxi Company
The yuxi company has 21 years of production experience, and two factories are located in Zhengzhou City, Henan Province. It is a leading company in the production of various waste recycling equipment. The company has a professional technical team, perfect after-sales service, product sales in more than 50 countries around the world.
Large Supply
The perfect technology of sufficient raw materials can be supplied to large quantities of enterprises.
High Customer Feedback Rate
Many customers come to our factory to visit and buy machines, giving us a high quality of product quality.
Profession
We have dozens of professional engineers, tell us your production, raw materials, finished products, we can give you the most suitable production line
