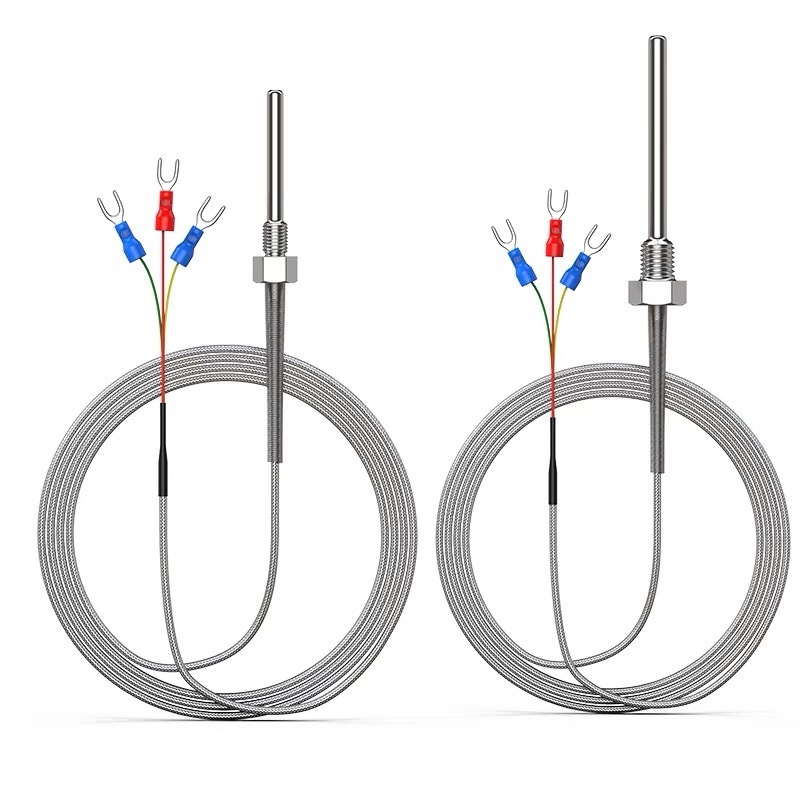

3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread
3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread
3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread
3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread
3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread
3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread
3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread
3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread

3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread

FOB Reference Price: Get Latest Price
≥1 Pieces
US $10
≥50 Pieces
US $8
≥100 Pieces
US $7
≥500 Pieces
US $6
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Model Number:
PT100 type
Brand:
HY
Certificate:
ISO9001
Temperature range:
0-420°C
Probe material:
304 316 2520 Inconel600 Stainless Steel
Probe diameter:
3-12mmm
Wire/Cable:
fiberglass insulation with stailess steel shield
Probe length:
10-10000mm or customized
Usage occasion:
Various industry
Terminal:
Connector or Y or U type
Package:
Carton&wooden case&Customized

Quick Details

Warranty:
12months
Place of Origin:
Jiangsu, China
Brand Name:
HY
Model Number:
PT100 type
Brand:
HY
Certificate:
ISO9001
Temperature range:
0-420°C
Probe material:
304 316 2520 Inconel600 Stainless Steel
Probe diameter:
3-12mmm
Wire/Cable:
fiberglass insulation with stailess steel shield
Probe length:
10-10000mm or customized
Usage occasion:
Various industry
Terminal:
Connector or Y or U type
Package:
Carton&wooden case&Customized

3 wires RTD PT100 temperature sensor flexible pt100 thermocouple probe with high temperature lead wire M8 thread

Technical data:

Model WZP-291
Type PT100
Probe diameter 3-8mm
Probe length 10-10000mm
Probe material 321SS 316SS 2520 INCONEL600
Measure temperature 0-420c
Wire length 1000mm or customized
Wire material Fiberglass with stainless steel shield

Resistance Temperature Detectors (RTDs) are temperature sensors that contain a resistor that changes resistance value as its temperature changes. They have been used for many years to measure temperature in laboratory and industrial processes, and have developed a reputation for accuracy, repeatability, and stability. The RTD is one of the most accurate temperature sensors. Not only does it provide good accuracy, it also provides excellent stability and repeatability. RTDs are relatively immune to electrical noise and therefore well suited for temperature measurement in industrial environments, especially around motors, generators and other high voltage equipment.

Photos View

Thread size

Element
