With 3.3M length refrigerated van.
High-quality insulation van.
Engine: JAC 120hp gasoline engine
We can customize based on your needs.
- Product Details
- {{item.text}}
Quick Details
-
After-sales Service Provided:
-
Online support
-
Brand Name:
-
JAC
-
Place of Origin:
-
China Hubei
-
Dimensions (L x W x H) (mm):
-
5620*1765*2700 mm
-
Box Dimensions (L x W x H) (mm):
-
3500*1610*1750 mm
-
Product name:
-
JAC 1.5 tons Refrigerated Truck
-
Application:
-
Frozen food transport
-
Overall dimension:
-
5620*1765*2700 mm
-
Drive type:
-
4*2 LHD
-
Transmission:
-
Manual Operation
-
Refrigeration unit:
-
Hanxue or US brand optional
-
Loading capacity:
-
1.5 tons
-
Van Material:
-
FRP+ 8cm PU insulation
-
Warranty:
-
12 months
-
Color & logo:
-
Per customer need
Quick Details
-
Condition:
-
New
-
Emission Standard:
-
EURO 5
-
Gross Vehicle Weight:
-
≤5T
-
After-sales Service Provided:
-
Online support
-
Brand Name:
-
JAC
-
Place of Origin:
-
China Hubei
-
Dimensions (L x W x H) (mm):
-
5620*1765*2700 mm
-
Box Dimensions (L x W x H) (mm):
-
3500*1610*1750 mm
-
Product name:
-
JAC 1.5 tons Refrigerated Truck
-
Application:
-
Frozen food transport
-
Overall dimension:
-
5620*1765*2700 mm
-
Drive type:
-
4*2 LHD
-
Transmission:
-
Manual Operation
-
Refrigeration unit:
-
Hanxue or US brand optional
-
Loading capacity:
-
1.5 tons
-
Van Material:
-
FRP+ 8cm PU insulation
-
Warranty:
-
12 months
-
Color & logo:
-
Per customer need
Products Description

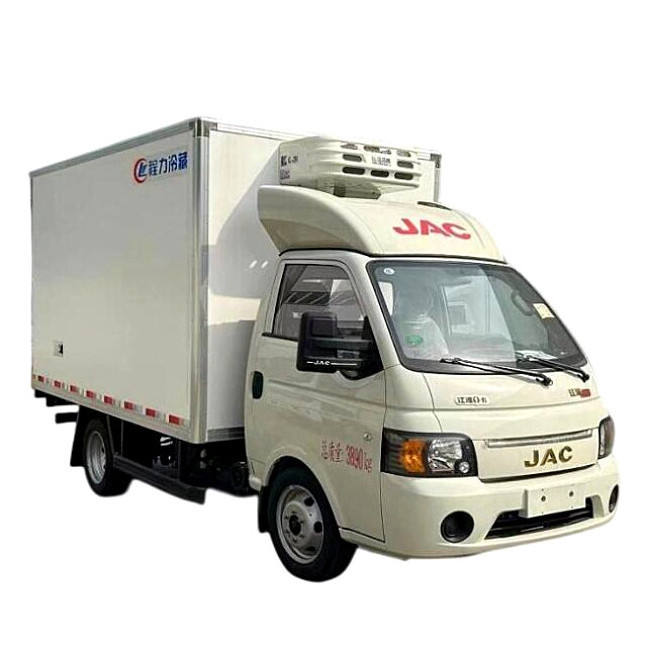

JAC mini Ice Cream Delivery Truck 1.5 Tons Refrigerated Frozen Van Truck
Refrigerated trucks also named by freezer truck, refrigerated van truck, cooling van truck, refrigerated freezer truck,
refrigerator trucks, freezer van truck, van refrigerator truck, frozen food transport truck, reefer truck, seafood refrigerated truck, ice cream refrigerated truck, refrigerated box truck, etc.
1. Optional -5℃ or -15℃ refrigeration unit, with cooling machine temperature display control regulator.
2. Optional side doors, ventilation slots can be installed at the bottom of the freezer van, and "cooling + heating" dual-temperature unit can be selected (can reach -18 degrees). Optional for adding temperature and humidity recorder, installation of ventilation slots, rail meat hooks, etc.
3. According to customer requirements, it is refitted into refrigerated trucks, insulated trucks, freezer trucks, etc., suitable for transporting medicines (medicine vaccine trucks), vegetables, fruits, fresh meat, frozen meat, seafood, chicken fry, etc.
4. Optional refrigeration unit brands: Xinxiang-Huatai, Huasheng Mars, Xiangyang-Hanya, Xiangyang-Hanxue, Zhengzhou-Kaixue, United States-Carrier, United States-THERMO KING, KINGTEC and other brands.
refrigerator trucks, freezer van truck, van refrigerator truck, frozen food transport truck, reefer truck, seafood refrigerated truck, ice cream refrigerated truck, refrigerated box truck, etc.
1. Optional -5℃ or -15℃ refrigeration unit, with cooling machine temperature display control regulator.
2. Optional side doors, ventilation slots can be installed at the bottom of the freezer van, and "cooling + heating" dual-temperature unit can be selected (can reach -18 degrees). Optional for adding temperature and humidity recorder, installation of ventilation slots, rail meat hooks, etc.
3. According to customer requirements, it is refitted into refrigerated trucks, insulated trucks, freezer trucks, etc., suitable for transporting medicines (medicine vaccine trucks), vegetables, fruits, fresh meat, frozen meat, seafood, chicken fry, etc.
4. Optional refrigeration unit brands: Xinxiang-Huatai, Huasheng Mars, Xiangyang-Hanya, Xiangyang-Hanxue, Zhengzhou-Kaixue, United States-Carrier, United States-THERMO KING, KINGTEC and other brands.
JAC 1.5 tons Refrigerator Truck
Factory direct sale freezer van trucks
Cooling temperature adjustable.
With 3.3M length refrigerated van.
High-quality insulation van.
Engine: JAC 120hp gasoline engine
We can customize based on your needs.
With 3.3M length refrigerated van.
High-quality insulation van.
Engine: JAC 120hp gasoline engine
We can customize based on your needs.
JAC 1.5 tons cooling van truck
back side of the refrigerated truck
1.5 tons frozen food transport truck
Specification
|
Item
|
unit
|
Parameter
|
|
||
|
Vehicle model
|
|
JAC Refrigerated Truck
|
|
||
|
Chassis model
|
|
HFC5030XLCPV4E6B4S
|
|
||
|
Overall dimensions
|
mm
|
5620×1765×2700
|
|
||
|
Body internal dimensions
|
|
3500×1610×1750
|
|
||
|
Axle load
|
kg
|
1270/1365
|
|
||
|
Gross weight
|
|
3465
|
|
||
|
Curb weight
|
|
1880
|
|
||
|
Wheel base
|
mm
|
2600/2850
|
|
||
|
F/R track base
|
|
1300/1360
|
|
||
|
Approach/departure angle
|
°
|
24/20
|
|
||
|
Traction system
|
|
4*2
|
|
||
|
Exhaust/kw
|
ml/kw
|
1600/88
|
|
||
|
Max speed
|
km/h
|
110
|
|
||
|
Fuel type
|
Gasoline
|
Engine
|
HFC4GB3-3E
|
||
|
Number of axles
|
2
|
Pieces of spring
|
3/5,4/6
|
||
|
Number of tires
|
4+1
|
Tire specification
|
175/75R16LT
|
||
|
Engine manufacturer
|
Anhui Hefei JAC Motor Co., LTD
|
|
|
||
|
Equipment
|
JAC chassis, with heat preservation box body, standard material is glass fiber reinforced plastic, 8cm polyurethane insulation layer, Standard back open door and China brand refrigeration unit;
|
|
|
||
|
Introduction
|
The van with light weight, high strength, seamless, corrosion-resistant benefits; The van around the aluminum alloy decoration,
door lock stainless steel standard parts. |
|
|
||
Detailed Images
Packing & Delivery
1> Packaging:
Nude, but waxed before shipment in our factory.
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements
2> Shipping: Small type can be put into 20' or 40' container, big type must be shipped by bulk carriers or ro-ro ship or according to your requirements
