Quick Details
-
Dimension(L*W*H):
-
7.6*1.3*2.6m
-
Weight:
-
1800 KG
-
Product name:
-

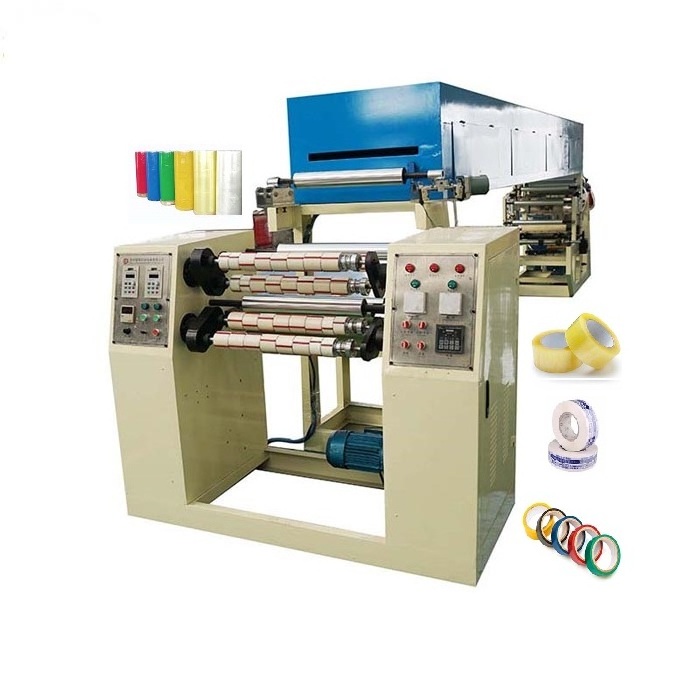

Small BOPP plastic film adhesive coating tape making machine
-
Name:
-
Adhesive plastic film coating making machine
-
Max.coating width:
-
500mm
-
Max.coating speed:
-
25m/min
-
Max.loading diameter:
-
600mm
-
Max.rewinding diameter:
-
180mm
-
Function:
-
Printing coating slitting
-
Drying:
-
heating water by electricity
-
raw materials:
-
bopp film & glue
-
Dimension:
-
7.6*1.3*2.6m/1800kg
Quick Details
-
Voltage:
-
380v,50hz
-
Place of Origin:
-
China
-
Brand Name:
-
ZOMAGTC
-
Dimension(L*W*H):
-
7.6*1.3*2.6m
-
Weight:
-
1800 KG
-
Product name:
-
Small BOPP plastic film adhesive coating tape making machine
-
Name:
-
Adhesive plastic film coating making machine
-
Max.coating width:
-
500mm
-
Max.coating speed:
-
25m/min
-
Max.loading diameter:
-
600mm
-
Max.rewinding diameter:
-
180mm
-
Function:
-
Printing coating slitting
-
Drying:
-
heating water by electricity
-
raw materials:
-
bopp film & glue
-
Dimension:
-
7.6*1.3*2.6m/1800kg
Product Description
Small bopp plastic film adhesive tape coating machine tape printing slitting rewinding machine tape making machine
|
Item
|
OR-500C
|
OR-1000C
|
|
Dimensions
|
7.60m*1.3m*2.40m
|
7.60m*1.30m*2.60m
|
|
Power
|
3-phase,380v,50Hz,15kw
|
3-phase,380v,50Hz
|
|
Max.coating width
|
500mm
|
1000mm
|
|
Max.coating speed
|
25m/min
|
10--22M/min
|
|
Max.loading diameter
|
600mm
|
600MM
|
|
Max.rewinding diameter
|
180mm
|
180MM
|
|
Drying
|
heating water by electricity
|
heating water by electricity
|
|
1
|
Equip with high precision automatic rectifying device to make the collection even.
|
|
2
|
Anti-explosion and high temperature resistance thermal cycling system, make the same temperature in each position.
|
|
3
|
Equips with 4 rolls for final product collection, up and down roll will dislocate to collect the rolls.
|
|
4
|
Equips with high precision and wearproof pneumatic shaft for collection roll, it will very easy to control the frictional force between collection roll and type core.
|
|
5
|
Equips with Teflon knurling roll, which will keep a good viscidity for the type.
|
|
6
|
All the doctor roll, gluing roll, film delivery roll are all pneumatic controlled.
|
|
7
|
The oven door is on the flank, which is convenient for the oven maintenance
|
|
8
|
Equips with automatic tube cutting machine and tube load and unload machine
|
|
9
|
Double adhesive type making is option.
|
|
10
|
Printing is an option for the machine
|
Recommend Products
Contact us
E-mail：peter@superelec.cn
Tel/Whats App：+86 13663008617
Packaging & Shipping
PACKAGING
|
Packaging Details
|
|
Stong wooden box package
|
|
|
Port
|
|
The main ports in China, depends customers choice
|
|
|
Lead Time
|
1 pc
|
35 days
|
|
|
|
>1 pcs
|
To be negotiated
|
|
SHIPPING
1.By air, sea or combined transportation.
2.Express via FEDEX, TNT, UPS, DHL, EMS(AS your request)
3.Tracking Number will offer you immediately after delivery
3.Tracking Number will offer you immediately after delivery
4.Shipping cost depends on the shipping method, product quantity,weight, carton size and your area.
