Quick Details
-
Brand Name:
-
hbAnmin
-
Model Number:
-
A-C1
-
Product name:
-
358 Anti Climb Fence
-
Application:
-
Sport Fence,Farm Fence,Garden Fence
-
Material:
-
Galvanzied wire,PVC coated wire
-
Height:
-
2000-6000mm
-
Length:
-
2-2.5m
-
Mesh opening:
-
12.7*76.2mm
-
Wire diameter:
-
3-5mm
-
Color:
-
Green, White, yellow, Gray etc
-
Delivery Time:
-
15-21 days
-
Meterial:
-
Low Carbon Steel Wire
Quick Details
-
Frame Material:
-
Metal
-
Feature:
-
Easily Assembled, Sustainable, ECO FRIENDLY, Pressure Treated Timbers, Tempered Glass, Waterproof
-
Place of Origin:
-
Hebei, China
-
Brand Name:
-
hbAnmin
-
Model Number:
-
A-C1
-
Product name:
-
358 Anti Climb Fence
-
Application:
-
Sport Fence,Farm Fence,Garden Fence
-
Material:
-
Galvanzied wire,PVC coated wire
-
Height:
-
2000-6000mm
-
Length:
-
2-2.5m
-
Mesh opening:
-
12.7*76.2mm
-
Wire diameter:
-
3-5mm
-
Color:
-
Green, White, yellow, Gray etc
-
Delivery Time:
-
15-21 days
-
Meterial:
-
Low Carbon Steel Wire
Product Description

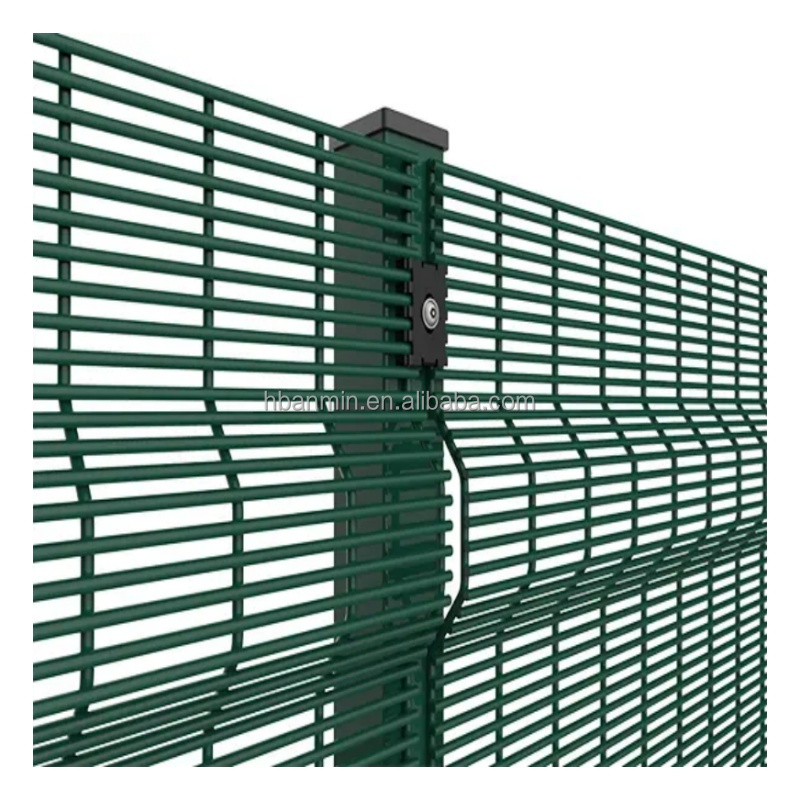

The name—358 high security fence comes from the size of panel mesh opening and wire diameter:
3'' × 0.5'' × 8 gauge, approximately equals to: 76.2 mm × 12.7 mm × 4 mm. As a welded wire fence, galvanized after welded and then PVC coated is recommended for a sturdy structure and corrosion resistance ability.
358 security fences are extremely difficult to penetrate, with the small mesh aperture being effectively finger proof, and extremely difficult to attack using conventional hand tools. 358 fences are recognized as one of the most difficult to break through the barrier, because it is difficult to climb. It is called security fencing and high- strength fencing. 358 security fencing panel can be bent in part to enhance the aesthetic effect.
Specification
|
C post
|
62mm×83mm×3mm
|
|
round post
|
outside diameter:80mm×3mm
|
|
rectangular post
|
60mm×80mm×3mm,60mm×120mm×3mm
|
|
post length
|
on request (normal 2.3mm-4m)
|
|
material
|
square steel pipe , round steel pipe , C type steel
|
|
finished
|
hot dipped galvanized,pvc coated
|
|
polyester painting color
|
Any RAL color (dark green, black,ect.)
|
|
Mesh Opening
|
Wire Thickness
|
Panel Width
|
Height
|
|
76.2×12.7mm
|
Horizontal wire:
3.0 ,3.5 ,4.0mm
Vertical wire:
4.0mm
|
2.50m / 2.20m
|
1800mm
|
|
|
|
|
2000mm
|
|
|
|
|
2100mm
|
|
|
|
|
2100mm
|
|
|
|
|
2400mm
|
|
|
|
|
2500mm
|
|
|
|
|
3000mm
|
|
FENCE HEIGHT
|
MESH SIZE(H×W)
|
MESH WEIGHT(kg)
|
|
1.27m
|
1270 × 2515 mm
|
29.1 kg
|
|
2.4m
|
2400 × 2515mm
|
55.5 kg
|
|
2.7m
|
2700 × 2515 mm
|
62.5 kg
|
|
3.0m
|
3000 × 2515 mm
|
62.5 kg
|
|
3.3m
|
3300 × 2515 mm
|
76.4 kg
|
|
3.6m
|
3600 × 2515 mm
|
83.4 kg
|
|
4.0m
|
4000 × 2515 mm
|
92.6 kg
|
|
4.5m
|
4500 × 2515 mm
|
104.2 kg
|
|
4.8m
|
4800 × 2515 mm
|
111.1 kg
|
|
5.2m
|
5200 × 2515 mm
|
120.4 kg
|
Products Details
Application
358 Anti Climb Fence is widely used in residential fence, factory fence, prison fence, airport fence and so on.
