Quick Details
-
Installation:
-
under guidance
-
Product:
-
Industail PE jaw crusher series
-
Model Number:
-
PE/PEX
-
Product supply:
-
complete mining machines
-
Certification:
-
ISO9001
Quick Details
-
Place of Origin:
-
Jiangxi, China, China (Mainland)
-
After-sales Service Provided:
-
Video technical support, Engineers available to service machinery overseas
-
Keyword:
-
Crusher Stone Machine Mini Jaw
-
Installation:
-
under guidance
-
Product:
-
Industail PE jaw crusher series
-
Model Number:
-
PE/PEX
-
Product supply:
-
complete mining machines
-
Certification:
-
ISO9001

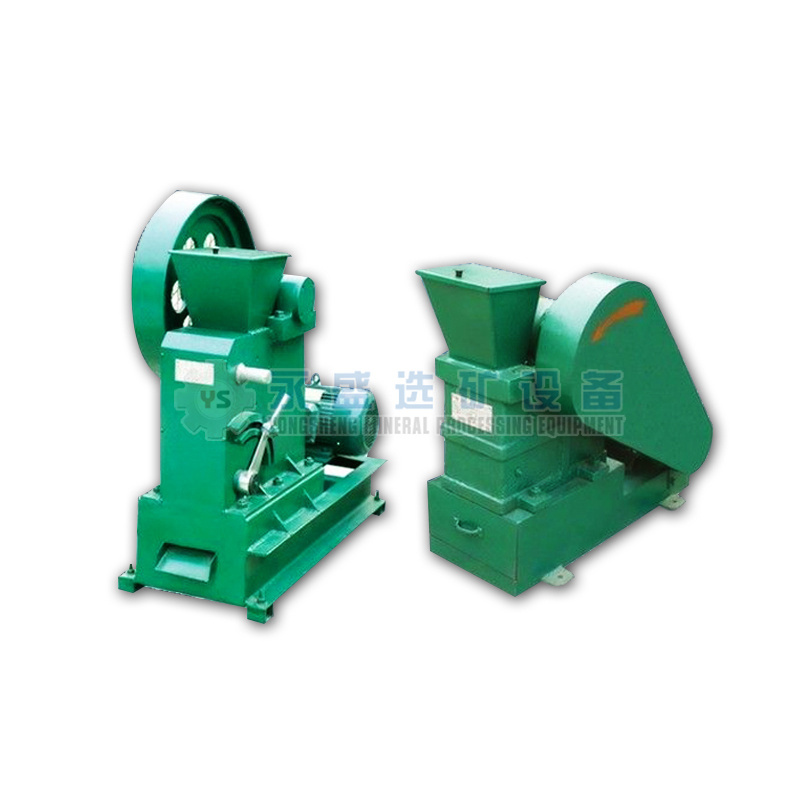

Energy Saving Small Rock Crusher / Crusher Stone Machine Mini Jaw Crusher
Related Products:
|
|
|
|
Models&Parameters:
| Model | Inlet Size(mm) | Max Feed Size(mm) | Scope of Output Size(mm) | Capacity(kg/h) | Spindle Speed(r/min) | Motor Power(Kw) | Weight(Kg) | Overall Size |
| PE100Χ60 | 100 Χ60 | 50 | 6-10 | 230-400 | 650 | 1.5 | 85 | 950×400×500 |
| PEF100 Χ60 | 100 Χ60 | 50 | 0.1-15.1 | 45-550 | 600 | 2.2 | 260 | 1050× 410 ×765 |
| PEF100 Χ100 | 100 Χ100 | 80 | 3-25 | 200-1800 | 500 | 3 | 320 | 1050× 410 ×860 |
| PEF125 Χ100 | 125 Χ100 | 80 | 5-25 | 200-1800 | 500 | 3 | 320 | 1050× 410 ×860 |
| PEF150 Χ100 | 150 Χ100 | 90 | 6-38 | 400-3000 | 500 | 3 | 360 | 1050× 410 ×860 |
| PEF150 Χ125 | 150 Χ125 | 100 | 6-38 | 400-3000 | 500 | 3 | 360 | 1050× 410 ×860 |
This model is our new generation of crushing machine featured with a open-concenient fix plate which is convenient for cleaning that can aviod mix of different ore.It can deal with materials according to it's specification which shows it's even and adjustable crushing size. That means it can meet your experimental and ore classification requirements perfectly.Whats more, big size materials won't be a trouble to this machine for it can crush materials with on band. Users can start their work without any other support base and control of the machine is very easy.
Brief Introduction of Laboratory Jaw Crusher:
Laboratory Jaw Crusher is mainly used in laboratory tests and small scale ore crushing. It can deal with micropulverizing, secondary crushing and fine crushing, main using industries are coal power, electricity, mining, geology, chemical, metallurgy, building materials and some other laboratory environmental protection equipments industries. This range of machine had been mabufacturered by our company over 6 years which means a strong quality guarantee and competetive price.
Application:
Laboratory Sealed jaw crusher is mainly used in the laboratory, the raw material of the medium and fine crushing, such as coal, gangue, limestone, pyrite, Jiao Tan. The crusher is curved extrusion type. 10 to 60 mm crushed material should be less than the maximum block size selection of
machine type material outlet size. Broken compressive strength of the material does not exceed 100MPa. It can break the different hardness materials. This machine has reasonable design, simple structure, less parts, convenient repair, simple operation. Without dust leakage, stable performance, low noise, improve the working environment and conditions of sample preparation, it is the ideal equipment for sample preparation equipment upgrading. Widely used in electric power, metallurgy, chemical, geological and other industries, can also be used for other industries material specimen preparation crushing.
The function of coarse crushing, crushing compressive strength up to 24kg/cm2 all kinds of ores and raw materials; big crushing ratio, uniform particle size; the partical size is adjustable; the sealing type effectively avoid overflow of dust in the crushing process, no environmental pollution, beneficial to the health of operating staff.
Features:
A. High C apacity, R ational C onstruction .
B. High Universality A nd S mooth R unning .
C. E ven D ischarging S ize .
D. Simple S tructure A nd E asy Operation.
E. Easy R eplacement O f W ear &S pare P arts .
F. L ow N oise &L ess D ust
Working Principle:
Laboratory jaw crusher uses the motor to drive belt and pulley, through the eccentric shaft to make the jaw move up and down, when movable jaw falls, the angle between the fixed jaw and the movable jaw become smaller, the materials are crushed to achieve crushing the purpose; when movable jaw rises, the angle between the movable jaw and the fixed jaw become larger, the movable jaw plate leaves the fixed jaw plate under the action of a pull rod. At this time materials broken discharge from the crushing chamber.
FAQ:
1. Why choose us?
As manufacturer of mining machine, we can supply you with competitive price and overall after sale service.
2. What kind of pre-sale service will you provide?
We will provide raw ore analysis, free procedure design and machine selection guide.
3. How about the discount?
There will be different discount for different models. If you are our returned customer, there will be 5% discount.
4. Are there any further discounts?
If you can recommend new customer to us, we will provide you commissions.
5. How to join us?
Email your application to us and we might recuit you as our distributor, then we can supply you with best price products with ad. cost on our side.
