When it apply for forklift, it can controlled by handle
- Product Details
- {{item.text}}
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TZBOT
-
Power:
-
1500W
-
Rate Current:
-
78A
-
Wheel Diameter:
-
230mm
-
Rate Voltage:
-
24V
-
Rate Speed:
-
2590r/min
-
Wheel Torque:
-
352NM
-
Brake Torque:
-
16NM
-
Max Wheel Load:
-
1000kg
-
Gear Ratio:
-
22i
-
Type:
-
Servo drive wheel assembly
Quick Details
-
Warranty:
-
1 Year
-
Weight (KG):
-
105
-
Marketing Type:
-
New Product 2021
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
TZBOT
-
Power:
-
1500W
-
Rate Current:
-
78A
-
Wheel Diameter:
-
230mm
-
Rate Voltage:
-
24V
-
Rate Speed:
-
2590r/min
-
Wheel Torque:
-
352NM
-
Brake Torque:
-
16NM
-
Max Wheel Load:
-
1000kg
-
Gear Ratio:
-
22i
-
Type:
-
Servo drive wheel assembly

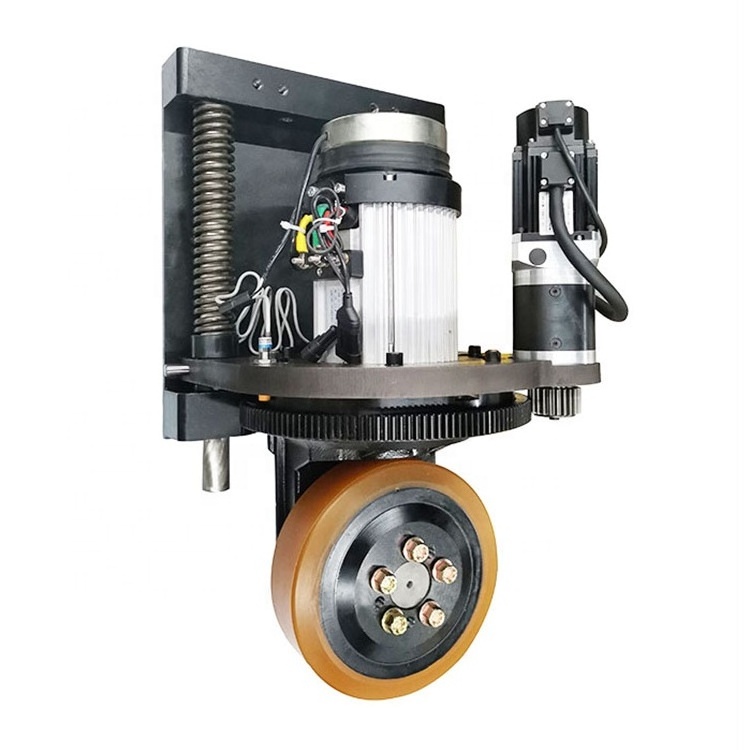

TZ12-D15S04 Heavy Load Vertical Drive Wheel
The product has the characteristics of reliable performance, convenient installation, and simple maintenance. It provides customers with reliable solutions in terms of high load, high torque, and high speed.The biggest characteristic is that the vertical drive wheel have a suspension devide,the spring can improve the stability.
Product Information
|
Item
|
Data
|
|
|
Model
|
TZ12-D15S04
|
|
|
Motor Type
|
AC
|
|
|
Traction Data
|
|
|
|
Power S2-60 min9(W)
|
1500
|
|
|
Rated Voltage(V)
|
24
|
|
|
Rated Speed(r/min)
|
2590
|
|
|
Rated Current(A)
|
78
|
|
|
Brake Torque(Nm)
|
16
|
|
|
Drive Speed(Km/h)
|
4.3
|
|
|
Gear Ratio(i)
|
22i
|
|
|
Wheel Diameter(mm)
|
230
|
|
|
Steering Data
|
|
|
|
Power S2-60 min9(W)
|
400
|
|
|
Rated Voltage(V)
|
24V
|
|
|
Rated Speed(r/min)
|
3000
|
|
|
Rated Current(A)
|
23A
|
|
Product description
Dimensions
Advantages
Easy to Operate
After-sale Service
Before shipping, we will installed the wheel well. The intalled video will send to you after purchased.
Good Material
Products use excellent raw materials, reliable quality, and strictly control quality.
Product Application
Hot-sale products
Company introduction
Zhejiang Tongzhu Technology Co., Ltd founded 2015, in ZHEJIANG designs, manufactures and sells agv, driving wheel assembly, DC/AC motors, encoder, reducer, controller, caster wheel, gear, Pu wheel, motor in wheel units and all over the world.
TZBOT continues to bring excellent products, technological innovation and ease of customizing to the automated equipment.
The core to TZBOT's growth is the constant dedication to the pursuit of full customer satisfaction. They have a strong presence in domestic and international markets, as well as, great production flexibility. TZBOT has come to be recognized as one of the biggest suppliers of electric drive.
Continued investment in the most modern machinery has further increased and developed the quality and flexibility of each product.
Today, TZBOT can quickly design and produce engines and special parts request from customers.
TZBOT's product are used in a myriad of application, including but not limited to: Forklifts, AGV, Aerial Platforms, Airport Machines, Agricultural Machines, Hydraulic Applications, Floor Scrubbers, Sweepers, Wind Energy, Marine, and in the field of Medical Devices.
All prototypes are tested for extended periods of time to verify the quality and the duration will work perfectly before sending production parts to customers. Due diligence is paramount to the satisfaction of our customers.
Packing & Shipping
FAQ
Q1:
Payment
A:
Our payment is T/T, Paypal, West Union, Trade Assurance(Ali pay or E-check), L/C and D/P
Q2:
Delivery Time
A:
It is up to the quantity and stocking. The usual delivery time of our stock product is 7 working days. The delivery time of OEM/ODM order is 15-40 days.
Q3:
Transport/Shipment Time
A:
There is currently no guarantee of the delivery time, but we will continue to pay attention and give you the latest feedback about it.
Q4:
How about your after-sale service?
A:
We have our own professional engineer team and we can provide technical support via online communication. Within 24 hours technical support by email, calling and so on.
Q5:
How can we make sure about the machine quality after placing the order?
A:
We will set all the parameters well according to your needs. Before delivery, we will check the stability and sending you the testing video until you satisfy.
