Quick Details
-
Material:
-
carton box
-
Product name:
-

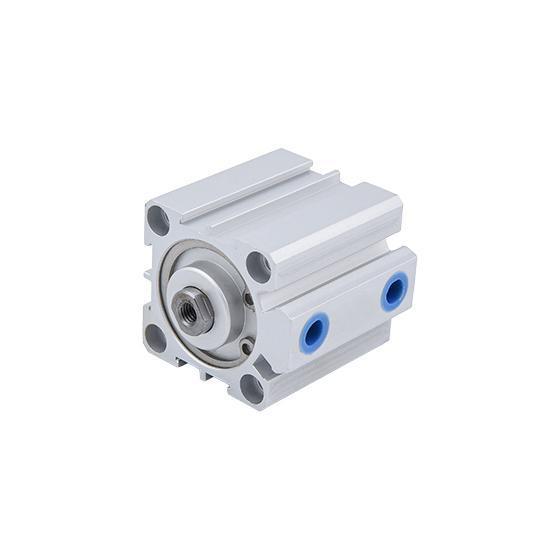

SDA Thin Type Cylinder
-
Body Material:
-
Alluminum Alloy
-
Working medium:
-
Air
-
Model:
-
SDA32x25
-
Brand:
-
MYPC
-
Working pressure:
-
10.5 kgf/cm2
-
Working Temperature:
-
0~70 ℃
-
MOQ:
-
10 Pcs
-
Acting type:
-
Double Acting
-
Cushion Type:
-
Bumper
Quick Details
-
Weight (KG):
-
1
-
Place of Origin:
-
ZHE
-
Brand Name:
-
MYPC
-
Material:
-
carton box
-
Product name:
-
SDA Thin Type Cylinder
-
Body Material:
-
Alluminum Alloy
-
Working medium:
-
Air
-
Model:
-
SDA32x25
-
Brand:
-
MYPC
-
Working pressure:
-
10.5 kgf/cm2
-
Working Temperature:
-
0~70 ℃
-
MOQ:
-
10 Pcs
-
Acting type:
-
Double Acting
-
Cushion Type:
-
Bumper
Products Description
Product Parameter
|
Product name
|
|
SDA Thin Type Cylinder
|
|
|
Material
|
|
Aluminum
|
|
|
Medium
|
|
Air
|
|
|
Voltage
|
|
Double Action: 1.0~9.0 kgf/cm2 or Single Action: 2.0~9.0 kgf/cm2
|
|
|
Working Temperature
|
|
0~70 ℃
|
|
|
Motion Pattern
|
|
Double Action/Single Action Extrusion Type Single Action Drawing-in Type
|
|
|
Operating Speed Range
|
Double Action
|
30~500 mm/s or 30~350 mm/s or 30~250 mm/s
|
|
|
|
Single Action
|
100~500 mm/s
|
|
Product Features
SDA thin type cylinder
1.
The cylinder block, back cover, piston and piston rod adopt a riveted structure, which is compact and reliable;
2.
The inner diameter of the cylinder is rolled and then hard oxidized to ensure good wear resistance and durability;
3.
The piston seal adopts a special-shaped two-way sealing structure, which is compact in size and has oil storage function;
4.
Compact structure can effectively save installation space;
5.
There is a magnetic induction switch slot around the cylinder body, making it easy to install the induction switch.
Specification Table
Product Drawings
