Quick Details
-
Mounting Type:
-
standard
-
Description:
-
Human body infrared sensor head, standard
-
Manufacturing Date Code:
-
standard
-
Model Number:
-
77000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EC-Buying
-
Theory:
-
standard
-
Output:
-
standard
-
Product name:
-

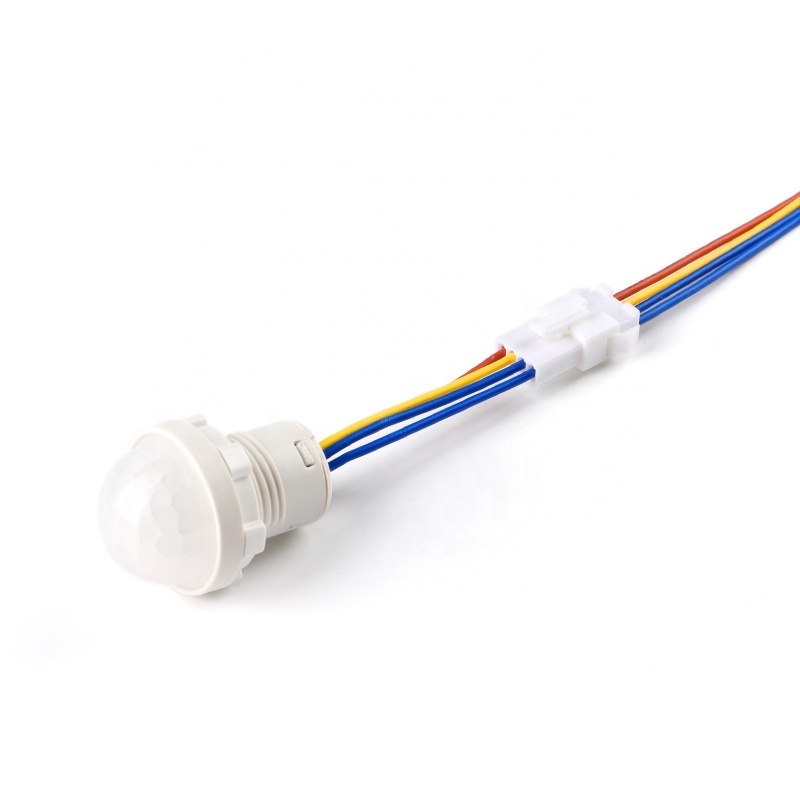

Human body infrared sensor head
-
Working voltage:
-
AC 85-265V
-
Load power:
-
≤40W
-
Sensing distance:
-
about 3-5m
-
Sensing angle:
-
120°
-
Delay time:
-
30S
-
Working temperature:
-
-20-40 degree
Quick Details
-
Use:
-
standard
-
Series:
-
Infrared sensor head module
-
Features:
-
standard
-
Mounting Type:
-
standard
-
Description:
-
Human body infrared sensor head, standard
-
Manufacturing Date Code:
-
standard
-
Model Number:
-
77000
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
EC-Buying
-
Theory:
-
standard
-
Output:
-
standard
-
Product name:
-
Human body infrared sensor head
-
Working voltage:
-
AC 85-265V
-
Load power:
-
≤40W
-
Sensing distance:
-
about 3-5m
-
Sensing angle:
-
120°
-
Delay time:
-
30S
-
Working temperature:
-
-20-40 degree
Product Description
Specification
|
Product name
|
Human body infrared sensor head
|
|
Working voltage
|
AC 85-265V
|
|
Load power
|
≤40W
|
|
Sensing distance
|
about 3-5m
|
|
Sensing angle
|
120°
|
|
Delay time
|
30S
|
|
Working temperature
|
-20-40 degree
|
Product parameters:
Name: Human body infrared sensor head (high voltage type)
Working voltage: AC 85-265V
Load power: ≤40W
Sensing distance: about 3-5m
Sensing angle: 120°
Delay time: 30S
Working temperature: -20-40 degree
Material: PC fuel resistance
Scope of application: energy-saving lamps, incandescent lamps, LED ceiling lamps
The quantity is large, the line can be customized according to the requirements, and it can also be made as a three-line or an extended line
Hole size: 20mm is recommended (the hole should be embedded and fixed, so the sensor head should not be exposed to cover the detection window)
Without light control: switch lights 24 hours a day regardless of day and night
With light control: when working at night or when the light is below 10LUX, someone will switch the light.
Name: Human body infrared sensor head (high voltage type)
Working voltage: AC 85-265V
Load power: ≤40W
Sensing distance: about 3-5m
Sensing angle: 120°
Delay time: 30S
Working temperature: -20-40 degree
Material: PC fuel resistance
Scope of application: energy-saving lamps, incandescent lamps, LED ceiling lamps
The quantity is large, the line can be customized according to the requirements, and it can also be made as a three-line or an extended line
Hole size: 20mm is recommended (the hole should be embedded and fixed, so the sensor head should not be exposed to cover the detection window)
Without light control: switch lights 24 hours a day regardless of day and night
With light control: when working at night or when the light is below 10LUX, someone will switch the light.
