Cement Silo Supplier Construction 100ton Big Bag Small Mini 150Ton 30Ton 40Ton Tank Horizontal Bolted Cement Silo

Cement Silo Supplier Construction 100ton Big Bag Small Mini 150Ton 30Ton 40Ton Tank Horizontal Bolted Cement Silo

FOB Reference Price: Get Latest Price

≥1 Sets

US $3900

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Dimension(L*W*H):: 2000*2000*12000mm

Weight:: 3000 kg

item:: Cement Silo Bin Bolted Steel Cement Silo

Assemble type::: Flake disassembled

Tank Height(m):: 4.8-18.6

Tank Diameter(m):: 2.5-4.5

Aggregate type::: Cement

whatsapp:: 0086 18737129167

connecting way:: connecting by nuts

Name:: Cement Storage Silo

steel material:: Q235

cement silo type:: Detachable/bolted

Quick Details

Machine Type:: Batching machine

Place of Origin:: SHN

Power:: 15kw

Dimension(L*W*H):: 2000*2000*12000mm

Weight:: 3000 kg

item:: Cement Silo Bin Bolted Steel Cement Silo

Assemble type::: Flake disassembled

Tank Height(m):: 4.8-18.6

Tank Diameter(m):: 2.5-4.5

Aggregate type::: Cement

whatsapp:: 0086 18737129167

connecting way:: connecting by nuts

Name:: Cement Storage Silo

steel material:: Q235

cement silo type:: Detachable/bolted

Cement Silo Supplier Construction 100ton Big Bag Small Mini 150Ton 30Ton 40Ton Tank Horizontal Bolted Cement Silo

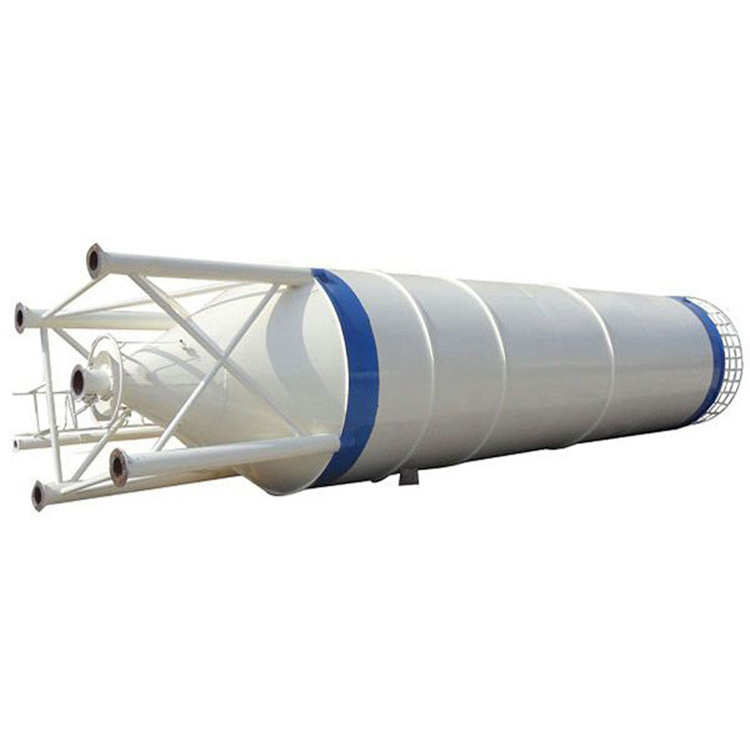

The cement storage silo is a new model silo which is transported to the work site to connect by bolts after through the modular production and processing. Parts of this type bulk cement silo consist of the mechanical processing to complete.

I.Features of Our Bulk Powder Storage 100 ton cement silo

1. Mainly used as a cement storage tank of Concrete Batching/Mixing Plant, Stabilized Soil Mixing Station, Cement Production Plant, Cement Packing Machinery, Cement Transfer-warehouse, etc.

2. Our steel silos are equipped with safety valve to balance the pressure inside and outside the silos.

3. It can be equipped level indicator so as to monitor the material level and amount.

4. With the screw conveyor, the materials can be conveyed to a certain position.

5. Suitable for loading into containers and exporting.

7. Perfect sealing assure its efficient working performance.

II.Application of Our Bulk Powder Storage 100 ton cement silo:

Bulk steel silo is an enclosed tank storage of bulk materials, suitable for storing grain, cement, fly ash and other bulk materials.

MODEL	100 T	200 T	300 T	400 T	500 T
STEEL	Q235	Q235	Q235	Q235	Q235
CEMENT SILO TYPE	Detachable/bolted	Detachable/bolted	Detachable/bolted	Detachable/bolted	Detachable/bolted
THICKNESS	8-6-5-5-4-4-3-3-3-3mm	8-8-5-5-4-4-4mm	12-10-8-6-6-5-5-4-4mm	12-10-8-6-5-4-4mm	12-10-8-6-6-5-5-4-4mm
DISCHARGE HEIGHT	7410mm	7410mm	7410mm	7410mm	7405mm
DIAMETER MM	3000mm	4512mm	4820mm	6500mm	6800mm
TANK HEIGHT MM	13144mm	12949mm	11570mm	13654mm	16022mm
TOTAL HEIGHT MM	20799mm	21619mm	23328mm	21064mm	24377mm
CONTAINERS NEED	1*40HQ	2*40HQ	2*40HQ	3*40HQ	3*40HQ
PRODUCTION PERIOD	15 working days	15 working days	20 working days	20 working days	20 working days
DELIVER TIME	20 working days	20 working days	25 working days	25 working days	25 working days
ACCESSORIES	Dust Collector, Handrails, Inside& Outside Ladders, Inlet Tube, Butterfly Valve, Support Legs, Arch Breaking, Level Indicator
