➽ DF555 is ultrasonic level (distance )sensors which can measure the air height directly and calculate the liquid or solid height based on the total height of the container (distance).
➽ Applicable for the close container or open container, or even the river. Furthermore it can calculate the volume of the container or the liquid.
➽Integrated with wireless module like NB-IoT, LoRaWAN, Sigfox, CAT-M, GPRS, 4G-LTE and etc, supporting global frequency bands. Data is uploaded to cloud server in protocol TCP, MQTT, LoRaWAN or other customized protocol.
- Product Details
- {{item.text}}
Quick Details
-
Mounting Type:
-
Screw
-
Description:
-
Liquid level sensor, DF555 Ultrasonic Level Sensor
-
Model Number:
-
DF555
-
Type:
-
Liquid/Solid Level Sensor
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
CNDINGTEK
-
Theory:
-
Ultrasonic, Ultrasonic Sensor
Quick Details
-
Use:
-
Level Measurement
-
Series:
-
Level Sensor
-
Features:
-
Ultrasonic Level Sensor
-
Mounting Type:
-
Screw
-
Description:
-
Liquid level sensor, DF555 Ultrasonic Level Sensor
-
Model Number:
-
DF555
-
Type:
-
Liquid/Solid Level Sensor
-
Place of Origin:
-
Beijing, China
-
Brand Name:
-
CNDINGTEK
-
Theory:
-
Ultrasonic, Ultrasonic Sensor
Overview

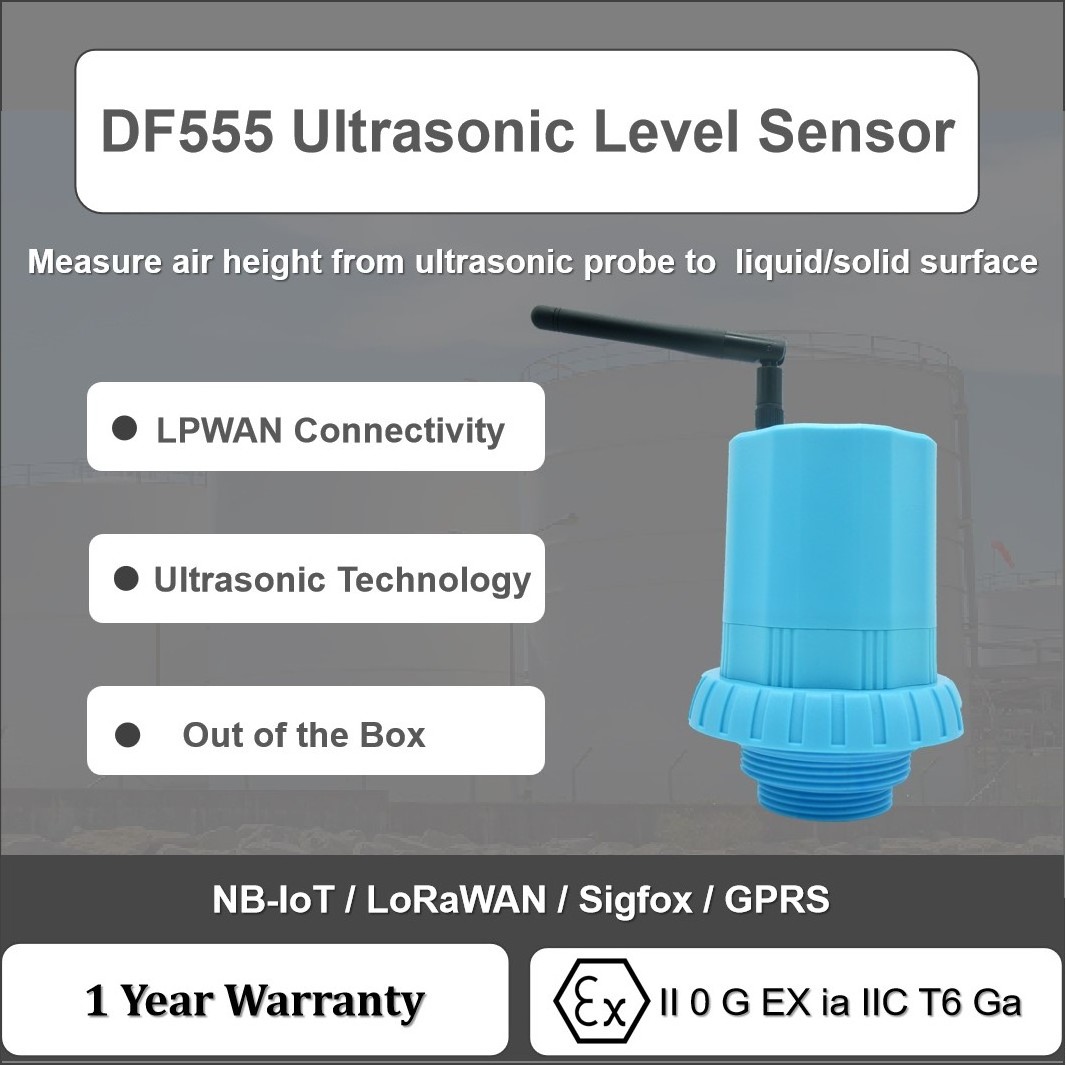

IoT Based Wireless DF555 Ultrasonic Level Sensor
Features
- Ultrasonic-based non contact measurement, 5m measuring range
- Remote monitoring through wireless module, global frequency bands available.
- Threaded mounting or screw mounting, 3 pipe thread sizes (1.5inch, 2 inch, 2.25inch) to adapt ready inlet
- Inner battery 8500mAh, low power consumption.
- Option for external power supply.
- Option for GPS module.
- IP67 for outdoor using.
- TCP protocol with SDK in Python, Java-script.
- Dashboard monitoring / Email notification / SMS notification (platform related)
Product Paramenters
|
|
Dimension
|
122.5mm(H)*95mm(W)*95mm(L)
|
|
|
Color
|
Black
|
|
|
Principle
|
Ultrasonic
|
|
|
Detection Range
|
5 meters
|
|
|
Blind area
|
0-20cm
|
|
|
Accuracy
|
3cm
|
|
|
Resolution
|
1mm or 0.1%FS, the bigger one
|
|
|
Driving Frequency
|
40khz
|
|
Power
|
inner battery
|
ER26500, 8500mah
|
|
Environment
|
Operating Temperature
|
-20 ~ +70℃
|
|
|
Storage Temperature
|
-40 ~ +85℃
|
|
|
Protection Level
|
IP67
|
|
Media
|
liquid
|
Diesel, gasoline, water, LPG, Ethanol, and other liquids
|
SAAS
Dingtek will provide protocol and manual without signing NDA after you place order.
Application Case
Applicable for the close container or open container, or even the river. Furthermore it can calculate the volume of the container or the liquid.
