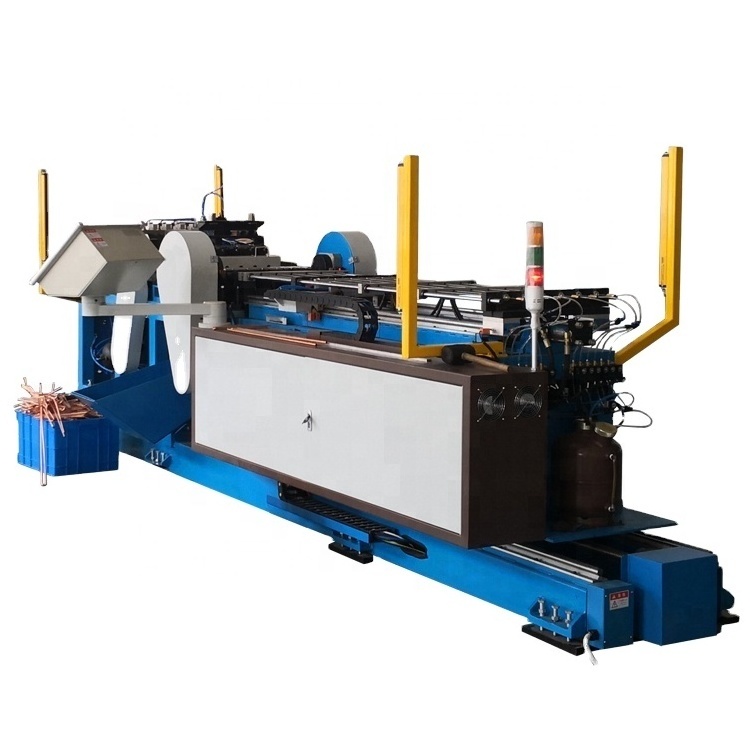

Item
|
Data
|
|
Suitable copper tube material
|
TP2 (soft)
|
|
Suitable copper tube reel size
|
Max. weight 180kg; M
ax. OD: Ф1100mm; ID: Ф130mm
|
|
Suitable copper tube diameter
|
Φ7mm; Φ9.52mm; Φ12.7mm
|
|
Bending radius
|
Φ7: R21mm; Φ9.52: R25.4mm (customized)
|
|
Copper tube numbers
|
Max. 6 pieces simultaneously
|
|
Max. copper tube length
|
275~2100mm
|
|
Production speed
|
L≤300, < 8s; L≤800, < 12s; L≤1600, < 20s;
|
|
Length error
|
L<800, ±0.5mm; L≥800mm, ±0.8mm
|
|
Length error between two ends
|
Less than 1.0mm
|
|
Center distance error between two ends
|
Less than ±0.1mm (within 14mm away from loop)
|
|
Tube ID at cutting ends
|
Φ7: >ф5.6mm; Φ9.52: >ф8mm
|
|
Straightness error
|
Curvature ≤3mm @L=1000mm
|
|
Flattening ratio at loop area
|
Less than 15%
|
|
Thinning ratio at loop area
|
Less than 30%
|
|
Finishing quality
|
No wrinkle, scratch, crack, dimple, bulge, burr
|
|
Total power
|
≤13KW
|
|
Workshop area needed
|
16.12m x 3m x 3.29m
|
|
Compressed air source
|
0.4-0.6MPa
|
|
Hydraulic pressure
|
7MPa
|
