Quick Details
-
Insulation Material:
-
Special PE/TEP/PVC/HDPE/TPU/TPEE
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
RV POWER
-
Model Number:
-
Rov Ethernet Hybrid Cable
-
Product name:
-
ROV ETHERNET HYBRID CABLE
-
Color:
-
Yellow/Red/Blue /Black /Customized
-
Jacket:
-
Special PE/PVC/HDPE/TPU/PUR
-
Rated voltage:
-
300/500V---0.6/1kv --3KV /Customized
-
Rated Temperature:
-
-40℃-90℃-- -40℃-125℃ /Customized
-
Strength Layer:
-
flexibility and higher strengths
-
Wire Coding:
-
Pairs with numbered marker tapes
-
Shielding:
-
Braided tinned copper/Aluminum foil
-
Diameter:
-
Customized
-
MOQ:
-
100Meter
Quick Details
-
Application:
-
Marine ROVs& AUVS Diving Oil and Gas ,Submarines ,.Aquaculture
-
Conductor Material:
-
Pure Copper/Tinned copper/Silver plated copper/TCCA
-
Conductor Type:
-
Stranded /Customized
-
Insulation Material:
-
Special PE/TEP/PVC/HDPE/TPU/TPEE
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
RV POWER
-
Model Number:
-
Rov Ethernet Hybrid Cable
-
Product name:
-
ROV ETHERNET HYBRID CABLE
-
Color:
-
Yellow/Red/Blue /Black /Customized
-
Jacket:
-
Special PE/PVC/HDPE/TPU/PUR
-
Rated voltage:
-
300/500V---0.6/1kv --3KV /Customized
-
Rated Temperature:
-
-40℃-90℃-- -40℃-125℃ /Customized
-
Strength Layer:
-
flexibility and higher strengths
-
Wire Coding:
-
Pairs with numbered marker tapes
-
Shielding:
-
Braided tinned copper/Aluminum foil
-
Diameter:
-
Customized
-
MOQ:
-
100Meter
|

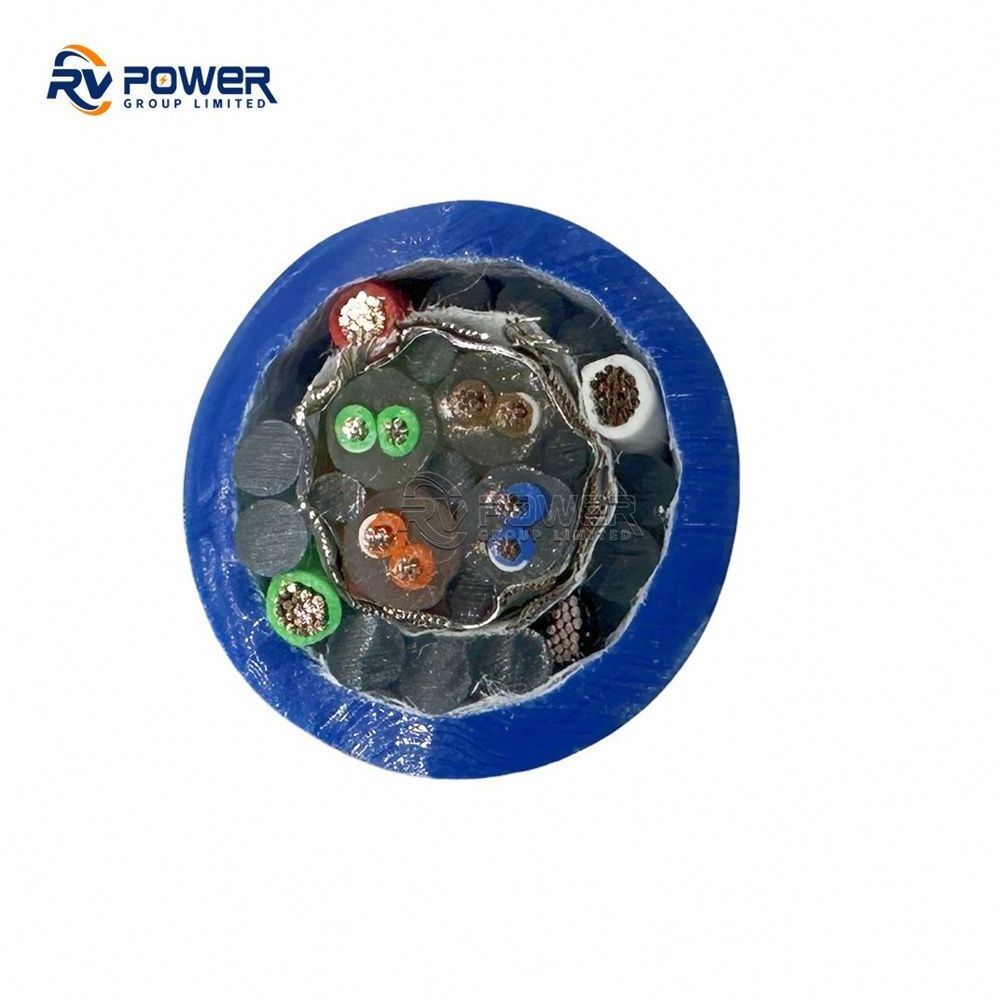

ROV ETHERNET HYBRID CABLE Tethers & Umbilicals for Remotely Operated Vehicles (ROVs) |
|
ROV Tether Cable Typical ROV Tethers include power conductors, shielded data pairs and video using coax, TSP, or fiber optics. Designs available in several configurations, including Neutral Buoyancy.Avaried degree of strength designs available depending onworkloads and handling system. The sample cables listed below are proven working designs for vehicles used worldwide. |
|
Design Variations
RV POWER GROUP manufactures many custom ROV cables using tried and proven components for power, video, data, etc., which are available for your design, providing shorter lead times. |
|
Cable Properties
Conductors: Stranded tin copper conductors for flexibility and corrosion resistance. Light weight, low dielectric copolymer insulation with great mechanical and moisture resistance.
Strength Layer: Light weight Kevlar fibers are designed into each cable construction to meet specific ROV intended use for maximum strength and longevity. Jacket Materials are chosen for optimal bonding, moisture and mechanical resistance. Each ROV cable is uniquely designed for specifi c ROV types using PE, TPE, PUR, and foam variations for flotation.
|
