Quick Details
-
Brand Name:
-
HCCTG
-
Place of Origin:
-
Guangdong, China
-
Pixel:
-
648*488 CMOS
-
Illumination:
-
White light led
-
Field of view:
-
28° horizontal and 21.5° vertical
-
Prompt mode:
-
Buzzer, LED indicator
-
Voltage:
-
Operating 5VDC ± 5%
-
Working current:
-
210mA
-
Stand-by current:
-
70mA
-
Operating temperature:
-
20℃~+50℃ (-4°F~122°F)
-
Storage temperature:
-
-40℃~+70℃ (-40°F~176°F)
-
Relative humidity:
-
5%~95% (no condensation)
Quick Details
-
Type:
-
Barcode Scanner
-
Scan Element Type:
-
CMOS
-
Optical Resolution:
-
≥5mil
-
Brand Name:
-
HCCTG
-
Place of Origin:
-
Guangdong, China
-
Pixel:
-
648*488 CMOS
-
Illumination:
-
White light led
-
Field of view:
-
28° horizontal and 21.5° vertical
-
Prompt mode:
-
Buzzer, LED indicator
-
Voltage:
-
Operating 5VDC ± 5%
-
Working current:
-
210mA
-
Stand-by current:
-
70mA
-
Operating temperature:
-
20℃~+50℃ (-4°F~122°F)
-
Storage temperature:
-
-40℃~+70℃ (-40°F~176°F)
-
Relative humidity:
-
5%~95% (no condensation)

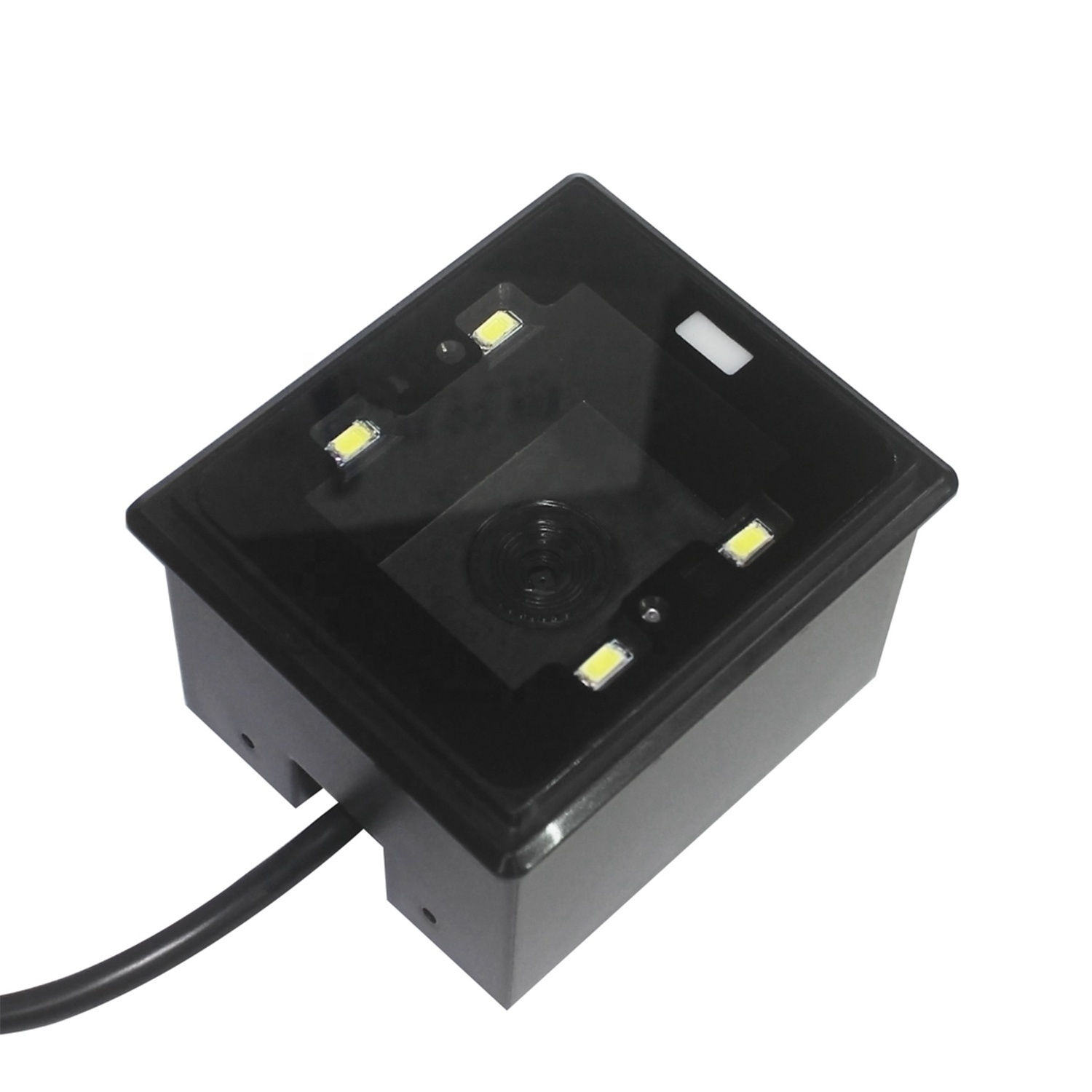

High-performance Module Wall Mount QR Code Reader Barcode Scanners HS-2011
G eneral
HS-2011 is a high-performance scanning box that can easily read all kinds of 1D barcodes and read 2D QR barcodes at high speed. HS-2011 has a very high scanning rate for linear barcodes. For paper barcodes and barcodes on the display, HS-2011 can also easily scan and handle various scanning applications.
The HS-2011 is built to meet the most demanding scanning requirements, providing consistent scanning performance in a completely dark environment as well as over an extended temperature range. HS-2011 is based on solid state technology that meets the most stringent standards for exposure, as well as shock and vibration.
F eature
Ø Quickly and accurately identify 1D code and QR code
Ø Green low power consumption
Ø Rich application scenarios
Ø Ergonomic design
Ø Stable, precise, convenient, practical, and efficient
Ø Compatible with multiple systems
S pecification
|
Performance parameter |
|
|
Image Sensor |
CMOS |
|
Pixel |
648*488 CMOS |
|
I llumination |
White light led |
|
Reading code system |
2D : PDF417,QR Code,Data Matrix |
|
1D : Code128,EAN-8,EAN-13,UPC-E,UPC-A,Interleaved 2 of 5, Matrix 2 of 5,Industrial 25,Code 39, Codabar, Code 93, Code 11,MSI-Plessey,GS1-DataBar |
|
|
Reading accuracy |
≥5mil |
|
Bar code sensitivity |
Tilt : ±65°@ 0°Roll and 0° Skew |
|
Rotate : ±360°@ 0°Pitch and 0° Skew |
|
|
Deflection : ±60°@ 0°Roll and 0° Pitch |
|
|
Data interface |
USB HID/KBW interface, USB virtual serial port interface , RS-232 interface |
|
Field of view |
28° horizontal and 21.5° vertical |
|
Typical reading depth of field |
Code 39 5mil 6-8cm 15mil 4-15cm |
|
Physical parameter |
|
|
Size (length * width * height) |
78.4 * 67.2 * 37.8 mm (Figure 1) |
|
W eight |
1 81.5 g (including USB cable) |
|
Prompt mode |
Buzzer, LED indicator |
|
Electrical parameters |
|
|
Voltage |
Operating 5VDC ± 5% |
|
Current |
Working current 210mA S tand-by current 70mA |
|
Environmental parameters |
|
|
Operating temperature |
20℃~+50℃ (-4°F~122°F) |
|
S torage temperature |
-40℃~+70℃ (-40°F~176°F) |
|
Relative humidity |
5%~95% (no condensation) |
|
Accessories list |
|
|
Data line |
C able (2m) U SB ( HID - KBW , V irtual serial port ) and RS232 interface at optional |
P icture
1.What is your business scope?
We have been in PC/POS/Mobile Payment product & Solution for 10 years. We can provide OEM / ODM customized service
according to our customers’ various application and demands.
2.What is your mode of payment?
T
/T, PAYPAL, Western Union, L/C, Trade Assurance, Credit Card, Cash, MoneyGram, D/P, D/A etc.
3.When will you delivery the goods?
Sample: 2-7 days;
Quantity order: 7-30 days upon deposit received;
Customized Product: according to the contract delivery time.
4.Would you provide SDK for me?
Yes, We offer free SDK if you order sample. All the contents in a CD ROM with sample together.
5.What is the FOB price and CIF price
In general, our prices are given on a FOB basis. For CIF price, I will check the cost from our shipping agent and recommend to you.
6.How can you guarantee the quality?
We have well-trained and professional workers and strict QC system in each production link. And each product has to be 100% inspected before shipment.
7.How can you guarantee the exclusive sale for OEM & ODM service?
Product mould contract, non-disclosure agreement, exclusive sale agreement will be signed before starting the OEM & ODM project.
8.What the after sale service?
a. Our all products will provide 12 months warranty;
b. Enough stock spare parts for guarantee;
c. Professional engineers provide 7*24 online service; If required, our engineers can provide local service in field;
d. As for the returned failure products, we will fix it and return to the customers in one week after we received it;
